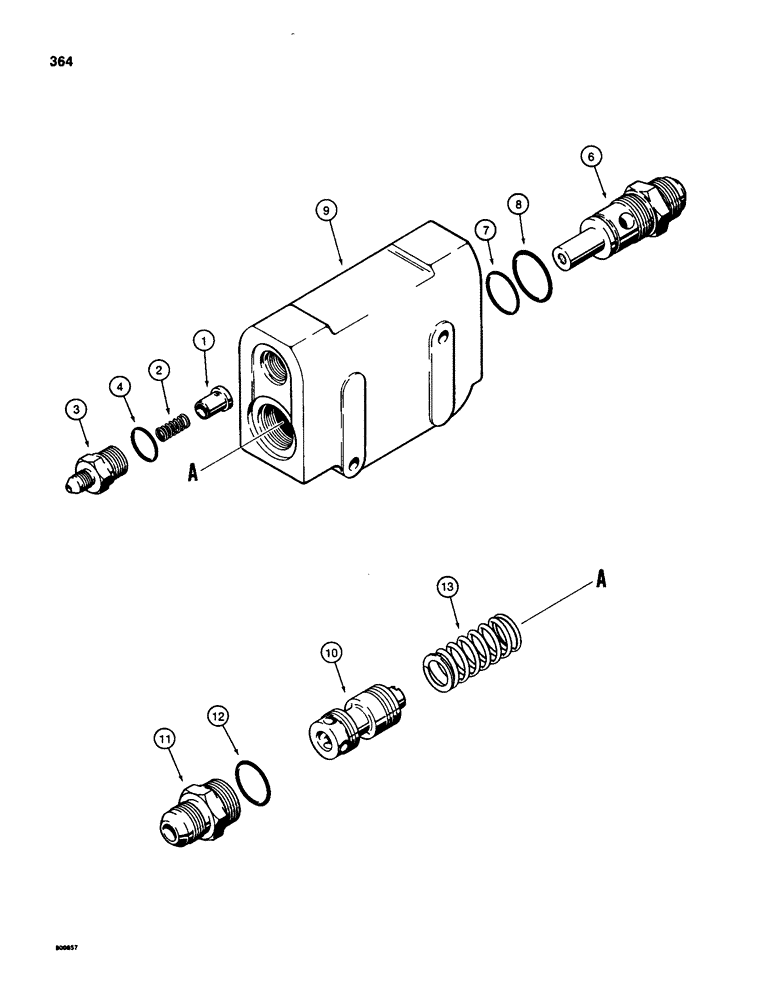

Запчасти Case 580SD (364) - D89394 UNLOADING VALVE (08) - HYDRAULICS

DR89394

REMAN-HYD VALVE

UNLOADING VALVE ASSEMBLY - remanufactured, component parts shown on this page do not apply to the remanufactured assembly, Includes: Ref. 1 - 13

1шт.

DC89394

CORE-VALVE HYD

RETURN NUMBER - use this part number to return valve core for credit when using a remanufactured assembly, Includes: Ref. 1 - 13

1шт.

D89394

VALVE

UNLOADING VALVE ASSEMBLY- complete, new, Includes: Ref. 1 - 13

1шт.

1

FH730366

PLUNGER

POPPET - fitting

1шт.

2

FH730374

SPRING

- fitting

1шт.

N6791

ATTACHMENT

FITTING ASSEMBLY - unloading valve, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

FITTING - unloading valve

1шт.

4

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- fitting

1шт.

5

RESERVED

1шт.

N6792

SEAL PACKAGE

RELIEF VALVE ASSEMBLY - unloading valve, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RELIEF VALVE - unloading valve

1шт.

7

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- inner

1шт.

8

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- outer

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - unloading valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - unloading valve, includes filter

1шт.

N6793

FITTING - special, with O-ring, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING - unloading valve

1шт.

12

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- fitting

1шт.

13

A47477

SPRING

- spool to relief valve

1шт.
