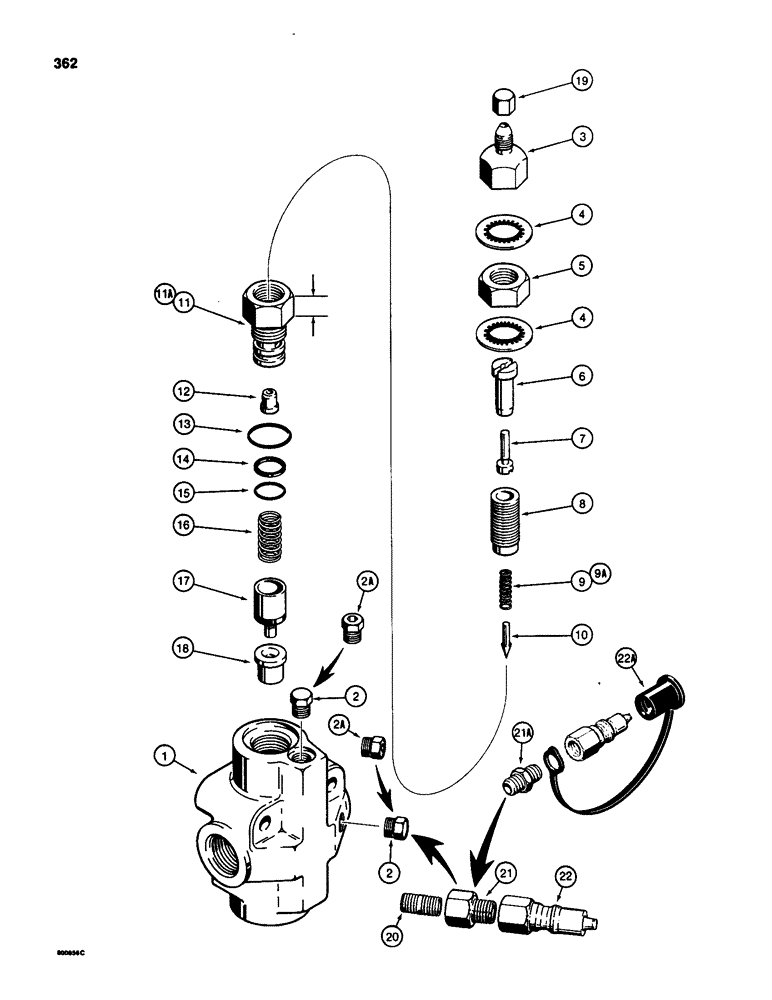

Запчасти Case 580SD (362) - D89498 AND D128430 STEERING RELIEF VALVES (08) - HYDRAULICS

D89498

VALVE

RELIEF VALVE ASSEMBLY - steering, Parker No. VPRP5X-017, no longer used, order D128430 valve, Includes: Ref. 1 - 18

1шт.

D128430

VALVE

RELIEF VALVE ASSEMBLY - steering, Parker No.VPRP5X-024, Includes: Ref. 1- 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - hex head, 1/8" NPT, order 221-1849 for service

2шт.

2a

221-1849

PLUG

- hex socket head, 1/8" NPT

2шт.

N9524

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - steering, Includes: Ref. 3 - 18

1шт.

3

N6841

FITTING

- pilot relief

1шт.

4

D27259

SEAL

- special

2шт.

5

86637932

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8" - 18 NF

1шт.

6

N6803

RETAINER

- piston

1шт.

7

N6802

PISTON

- two stage

1шт.

8

N6840

SCREW,1.306"

- adjusting

1шт.

9

D26268

SPRING

- pilot, N6839 body

1шт.

9a

N9526

SPRING

- pilot, N9009 body

1шт.

10

D26267

PLUNGER

- pilot

1шт.

11

N6839

BODY

- relief, hex head height is 1/2", no longer used, when replacing

1шт.

this body, must order both N9526 spring and N9009 body

1шт.

11a

N9009

CAP

BODY - relief, hex head height is 5/8"

1шт.

12

N6804

SEAT

- pilot plunger

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

- small

1шт.

16

D26261

VALVE SPRING

SPRING - relief valve

1шт.

17

L30687

SPOOL

POPPET - relief valve

1шт.

18

D26259

SEAT

- poppet

1шт.

19

218-752

CAP,37 Degree, 7/16"-20

Relief valve, used on models without backhoe 37º, 7/16"-20

1шт.

20

221-1714

PIPE,Nipple, 1/8" NPT x 1 1/2", X-Strng

NIPPLE - 1/8" NPT, if used

1шт.

21

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" NPT x 1/8" NPT, if used

1шт.

21a

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - reducing, 1/4" NPT x 1/8" NPT, if used

1шт.

22

S206607

DISC

COUPLING - male, if used

1шт.

22a

D123387

DUST CAP

COVER - dust, if used

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- cap

1шт.
