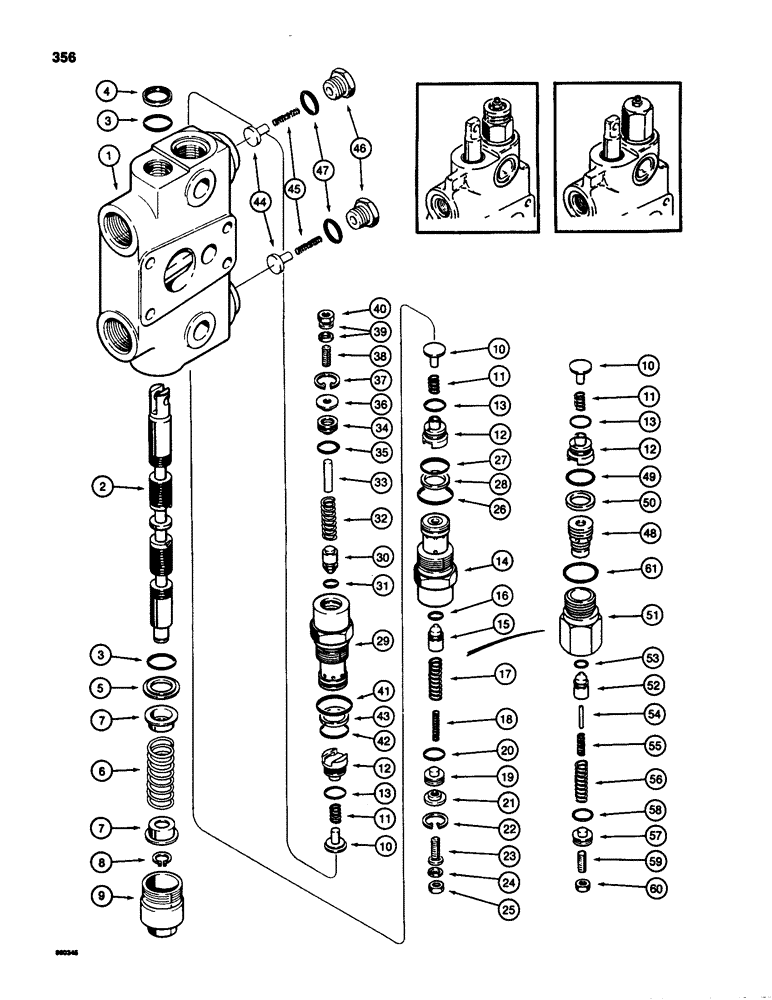

Запчасти Case 580SD (356) - BACKHOE CONTROL VALVE, BOOM SECTION, USED ON SUPER D MODELS (08) - HYDRAULICS

G104997

VALVE

SECTION ASSEMBLY - boom, with round retainer and snap ring at outer end of circuit relief cap, no longer available, order G109517 section on Figure 359C, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

CENTERING SPRING - spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G34672

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - lower, with round retainer and snap ring at outer end of circuit reliep cap, used in production, no longer available, replaced by G109445 valve in production, see Figure 359C, order G109449 kit for service, Inc.Ref. 14 - 28

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

17

G105693

VALVE SPRING

SPRING - circuit relief valve, outer

1шт.

18

G34659

SPRING

- circuit relief valve, inner

1шт.

19

G33091

PISTON

- circuit relief valve

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

21

G33092

RETAINER

- circuit relief valve

1шт.

22

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

23

G102782

SET SCREW,1/4" - 20 x 1"

SET SCREW - piston, 1/4" - 20 NC x 1"

1шт.

24

G102781

WASHER

- special, if used

2шт.

25

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

27

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, if used

1шт.

G109449

KIT

- service for G34672, includes G109447 relief valve assembly (Refs. 14-28) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G103396

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - upper, with round retainer and snap ring at outer end of circuit relief cap, used in production, no longer available, replaced by G109441 valve in production, see Figure 359C, order G109448 kit for service, Inc.Ref. 29 - 43

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

31

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

32

G105693

VALVE SPRING

SPRING - circuit relief valve

1шт.

33

G33241

PIN

- circuit relief valve

1шт.

34

G33091

PISTON

- circuit relief valve

1шт.

35

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

36

G33092

RETAINER

- circuit relief valve

1шт.

37

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

38

G102782

SET SCREW,1/4" - 20 x 1"

SET SCREW - piston, 1/4" - 20 NC x 1"

1шт.

39

G102781

WASHER

- special, if used

2шт.

40

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

42

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

43

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, if used

1шт.

44

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

2шт.

45

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve

2шт.

46

G34937

PLUG

- anticavitation valve

2шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

G109448

KIT

- service for G103396, includes G109446 relief valve assembly (Refs. 29-47) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109445

CIRCUIT RELIEF VALVE ASSEMBLY - Lower, one piece cap, replaces G34672 valve in production, see page 356, order G109449 kit for service

1шт.

48

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

49

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

small, seat

1шт.

50

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

Backup, small O-ring, seat

1шт.

51

NSS

NOT SOLD SEPARAT

BODY - Circuit relief valve

1шт.

52

NSS

NOT SOLD SEPARAT

POPPET

1шт.

53

NSS

NOT SOLD SEPARAT

O-RING

1шт.

54

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

55

NSS

NOT SOLD SEPARAT

SPRING, inner

1шт.

56

NSS

NOT SOLD SEPARAT

SPRING, outer

1шт.

57

NSS

NOT SOLD SEPARAT

PISTON

1шт.

58

NSS

NOT SOLD SEPARAT

O-RING

1шт.

59

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

60

129-162

NUT,Jam, 5/16"-24, G5

hex, jam, 5/16" - 24 NF, plated

1шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

G109449

KIT

Service for G109445, includes G109447 relief valve assembly (items 48-61) and an instruction sheet

1шт.
