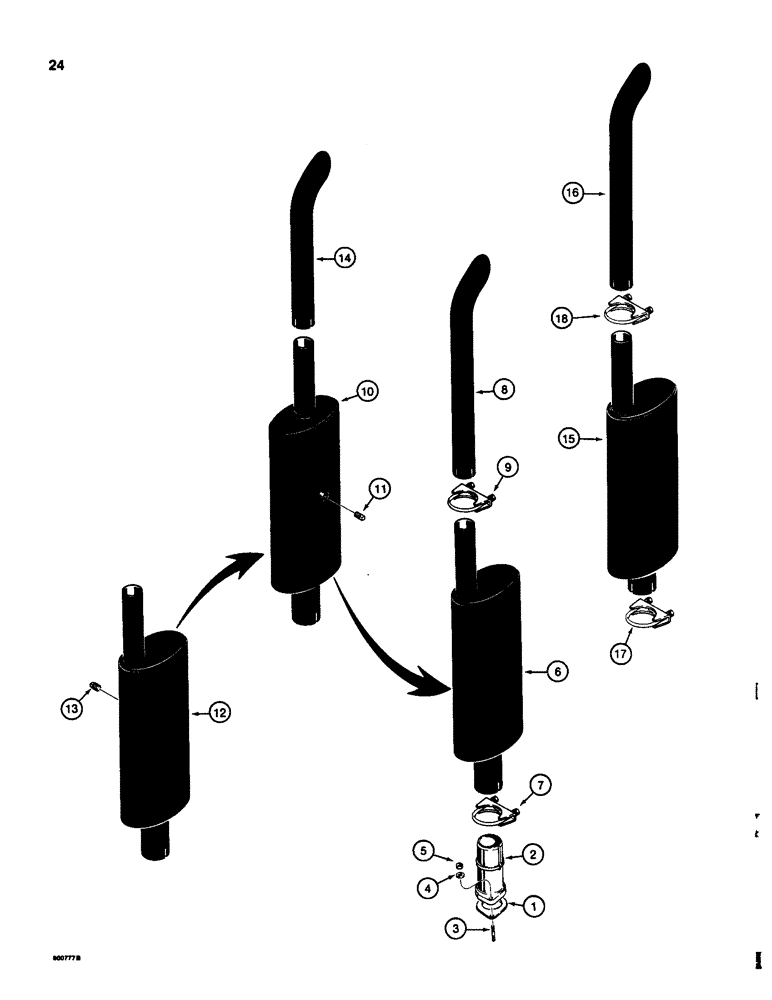

Запчасти Case 580SD (024) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

REF

INSTRUCTION

MODELS WITHOUT TURBOCHARGED ENGINE

1шт.

1

G46853

MANIFOLD GASKET

- manifold to exhaust pipe

1шт.

2

D73198

OUTLET

ADAPTER - muffler

1шт.

3

A59077

STUD

- 3/8" - 16 NC x 1-13/16"

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

A39561

MUFFLER

- engine exhaust, if used

1шт.

7

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware

1шт.

8

D70514

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler extension, used with item 6 only

1шт.

#8 - If you double click on this part number, info will say that it is a direct ship part - not true - available at depots

1шт.

9

G45410

CLAMP

- exhaust pipe, includes hardware

1шт.

10

D65392

MUFFLER

- spark arrester, no longer available, order D120870 muffler, if used, Includes: Ref. 11

1шт.

11

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - square head, 1/4" NPT, brass

1шт.

12

D120870

MUFFLER

- spark arrester, if used, Includes: Ref. 13

1шт.

13

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex head, 3/8" NPT, brass

1шт.

14

D121304

PIPE

EXHAUST PIPE - spark arrester muffler extension, if used

1шт.

REF

INSTRUCTION

MODELS WITH TURBOCHARGED ENGINE

1шт.

15

D83961

MUFFLER

- engine exhaust

1шт.

16

D70514

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler extension

1шт.

17

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware

1шт.

18

G45410

CLAMP

- exhaust pipe, includes hardware

1шт.
