Запчасти Case 580SD (350) - BACKHOE CONTROL VALVE, SWING SECTION (08) - HYDRAULICS

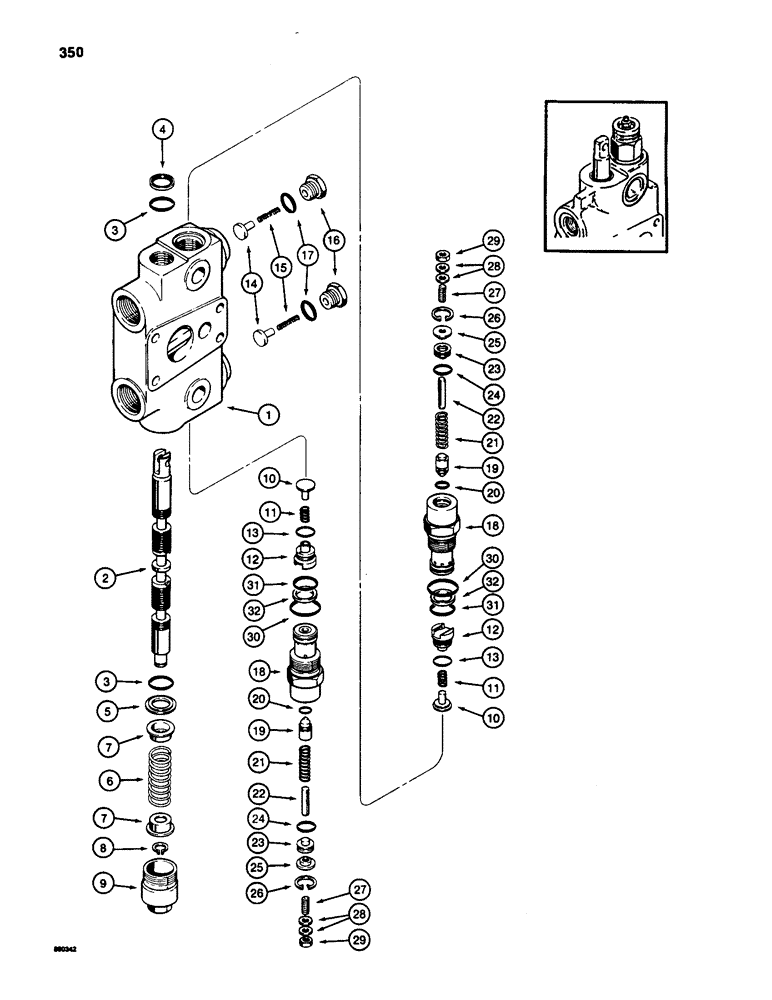

Схема запчастей Case 580SD - (350) - BACKHOE CONTROL VALVE, SWING SECTION (08) - HYDRAULICS
12
5
12
24
6
10
28
25
32
26
29
29
27
32
11
3
21
16
15
24
13
17
3
25
4
19
28
31
22
9
8
30
23
1
13
7
31
23
20
7
11
21
27
30
14
18
26
19
2
20
10
18
22

Артикул

Название

Примечание

Количество

G103402

BLOCK

SECTION ASSEMBLY - swing, no longer available, order G109521 section on Figure 351A, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - swing valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - swing valve

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

CENTERING SPRING - spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

9

G33080

CAP

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

2шт.

15

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve

2шт.

16

G34937

PLUG

- anticavitation valve

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

G34657

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - with round retainer and snap ring at outer end of circuit relief cap, used in production, no longer available, replaced by G109444 valve in production, see Figure 351A, order G109448 kit for service, Includes: Ref. 18 - 32

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

20

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

21

G105693

VALVE SPRING

SPRING - circuit relief valve

1шт.

22

G34455

PIN

- stop, circuit relief valve spring

1шт.

23

G33091

PISTON

- circuit relief valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

25

G33092

RETAINER

- circuit relief valve

1шт.

26

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

27

G102782

SET SCREW,1/4" - 20 x 1"

SET SCREW - piston adjusting, 1/4" - 20 NC x 1"

1шт.

28

G102781

WASHER

- special, if used

2шт.

29

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

31

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

32

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, if used

1шт.

G109448

KIT

- service for G34657, includes G109446 relief valve assembly (Refs. 18-32) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

Выбрано товаров: 37
