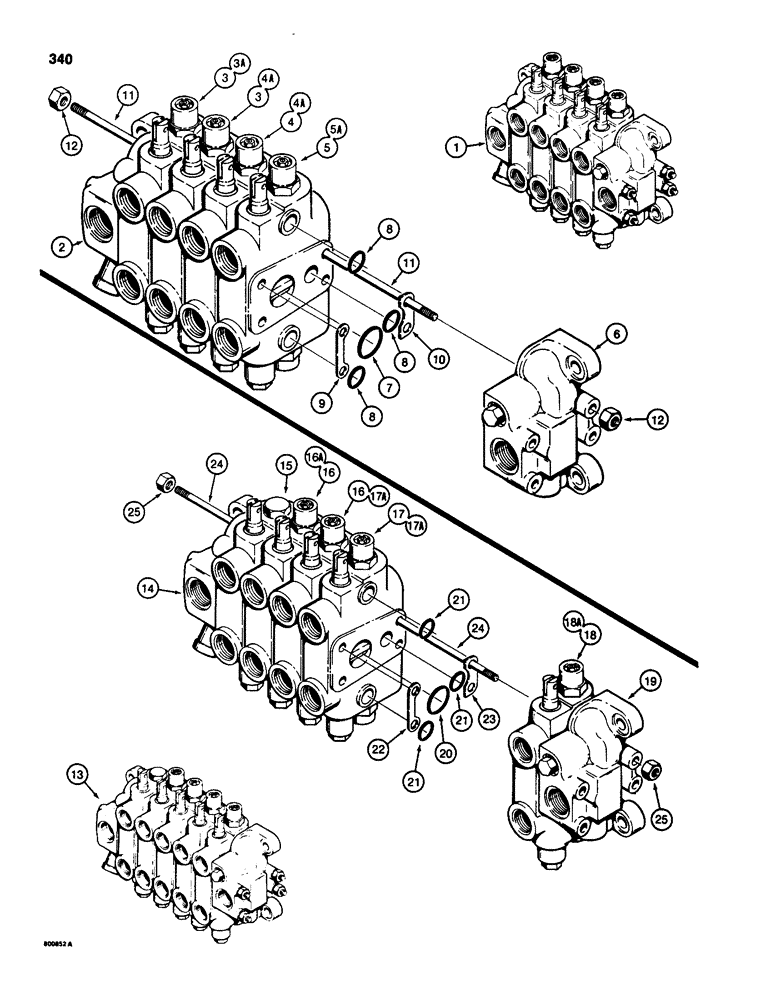

Запчасти Case 580SD (340) - BACKHOE CONTROL VALVES, NOT USED ON SUPER D MODELS (08) - HYDRAULICS

1

G103392

VALVE

CONTROL VALVE ASSEMBLY - foot swing models, without extendable dipper, Includes: Ref. 2 - 12

1шт.

1

G103812

CONTROL VALVE ASSEMBLY - hand swing models, without extendable dipper, Includes: Ref. 2 - 12

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 344

1шт.

3

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 346 and 347A used with G103812 control valve assembly

2шт.

3a

G103398

VALVE BLOCK

BOOM SECTION - parts list Figures 352-355A, used with G103392 control valve assembly

1шт.

4

REF

INSTRUCTION

SWING SECTION - parts list Figures 350 and 351A, used with G103812 control valve assembly

1шт.

4a

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 346 and 347A, used with G103392 control valve assembly

2шт.

5

G103398

VALVE BLOCK

BOOM SECTION - parts list Figures 352-355A, used with G103812 control valve assembly

1шт.

5a

REF

INSTRUCTION

SWING SECTION - parts list Figures 350 and 351A, used with G103392 control valve assembly

1шт.

6

G33102

MANIFOLD

INLET SECTION - parts list Figure 344

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8" - 16 NC x 13-3/4"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

13

G103393

CONTROL VALVE ASSEMBLY - foot swing models, with extendable dipper, Includes: Ref. 14 - 25

1шт.

13

G103813

TUBE

CONTROL VALVE ASSEMBLY - hand swing models, with extendable dipper, Includes: Ref. 14 - 25

1шт.

14

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 344

1шт.

15

G103404

SEGMENT

EXTENDABLE DIPPER SECTION - parts list Figure 348

1шт.

16

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 346 and 347A, used with G103813 valve assembly

2шт.

17

REF

INSTRUCTION

SWING SECTION - parts list Figures 350 and 351A, used with G103813 control valve assembly

1шт.

17a

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 346 and 347A, used with G103393 valve assembly

2шт.

18

G103398

VALVE BLOCK

BOOM SECTION - parts list Figures 352-355A, used with G103813 control valve assembly

1шт.

18a

REF

INSTRUCTION

SWING SECTION - parts list Figures 350 and 351A, used with G103393 control valve assembly

1шт.

19

G33102

MANIFOLD

INLET SECTION - parts list Figure 344

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

21

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- sectionn ports, small

18шт.

22

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

24

G34675

TIE-ROD

STUD - tie, 3/8" - 16 NC x 15-3/4"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
