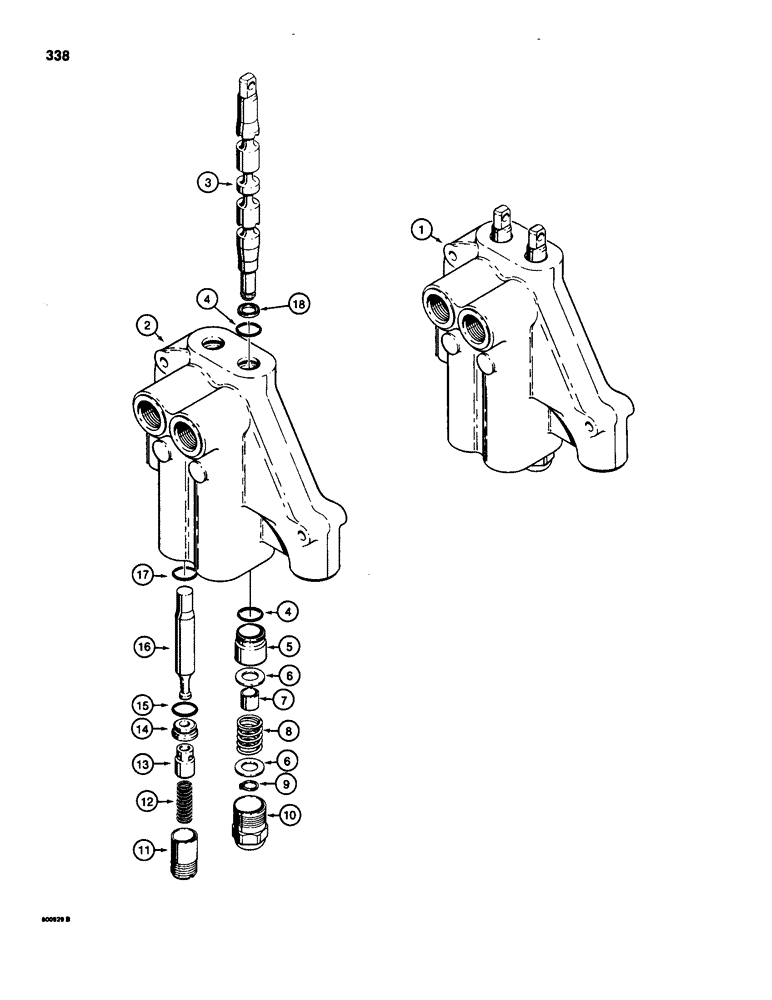

Запчасти Case 580SD (338) - STABILIZER CONTROL VALVE (08) - HYDRAULICS

1

DR124856

VALVE

CONTROL VALVE ASSEMBLY - stabilizer, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

DC124856

CORE-VALVE HYD

RETURN NUMBER - use this part number to return valve core for credit when using a remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

D93913

VALVE

CONTROL VALVE ASSEMBLY - stabilizer, Cessna No. 39042-AAK, no longer available, order D124856 valve, Includes: Ref. 2 - 18

1шт.

When replacing seat or plunger in D93913 and D123146 control valves, you must replace both N8451 seat and N8452 plunger at the same time.

1шт.

1

D123146

VALVE

CONTROL VALVE ASSEMBLY - stabilizer, Cessna No. 39042-AAL, no longer available, order D124856 valve, Includes: Ref. 2 - 18

1шт.

When replacing seat or plunger in D93913 and D123146 control valves, you must replace both N8451 seat and N8452 plunger at the same time.

1шт.

1

D124856

VALVE

CONTROL VALVE ASSEMBLY - stabilizer, new, Cessna No. 39042-AAQ, Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

2шт.

4

N8453

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

4шт.

5

N8450

BUSHING

- spool

2шт.

6

N6470

WASHER

- spring retainer

4шт.

7

D56909

BUSHING

SPACER - spring

2шт.

8

D56445

SPRING

- spool return

2шт.

9

A27020

RING

- retaining, washer

2шт.

10

F35196

CAP

- spool end

2шт.

11

D59653

PLUG

- spring retainer

2шт.

12

D56444

SPRING

- poppet

2шт.

13

D59654

VALVE

POPPET - control valve

2шт.

N8451

SEAT

ASSEMBLY - plunger, Includes: Ref. 14 and 15

2шт.

When replacing seat or plunger in D93913 and D123146 control valves, you must replace both N8451 seat and N8452 plunger at the same time.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

16

N8452

PLUNGER

- control valve

2шт.

When replacing seat or plunger in D93913 and D123146 control valves, you must replace both N8451 seat and N8452 plunger at the same time.

1шт.

17

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plunger

2шт.

18

N8005

WIPER SEAL

WIPER - spool, outer, used in D123146 and D124856 control valves only

2шт.
