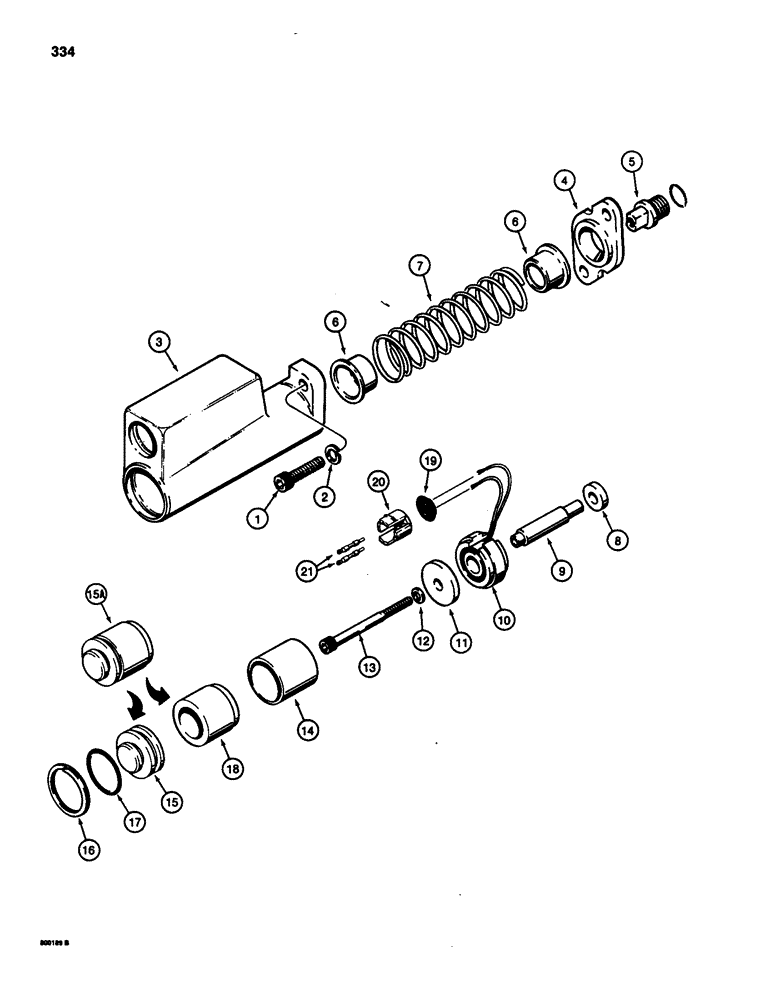

Запчасти Case 580SD (334) - HYDRECO LOADER CONTROL VALVE, BUCKET SPOOL DETENT (08) - HYDRAULICS

N8215

DETENT

ASSEMBLY - bucket spool, Includes: Ref. 1 - 21

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" -18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

- spool end, for O-ring number, see spool parts list on Figure 330

1шт.

6

D24777

COLLAR

RETAINER - spring

2шт.

7

D24776

VALVE SPRING

CENTERING SPRING - spool

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D80688

SOLENOID

COIL - magnetic detent

1шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80686

SPACER

- small

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4" - 20 NC x 3"

1шт.

14

D82711

SPACER

- sleeve

1шт.

15

D80683

PLUG

- end, used with Ref. 18, see Ref. 15A

1шт.

15a

N8216

PLUG

AND SPACER - one piece, can be used to service Refs. 15 and 18

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - retaining

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- detent assembly

1шт.

18

N6601

SPACER

- O-ring retainer, not used when Ref. 15A is used

1шт.

19

N6604

SEAL

- electrical connector

1шт.

20

N6602

RETAINER

SHELL - electrical connector

1шт.

21

N6603

PIN

TERMINAL - electrical connector

2шт.
