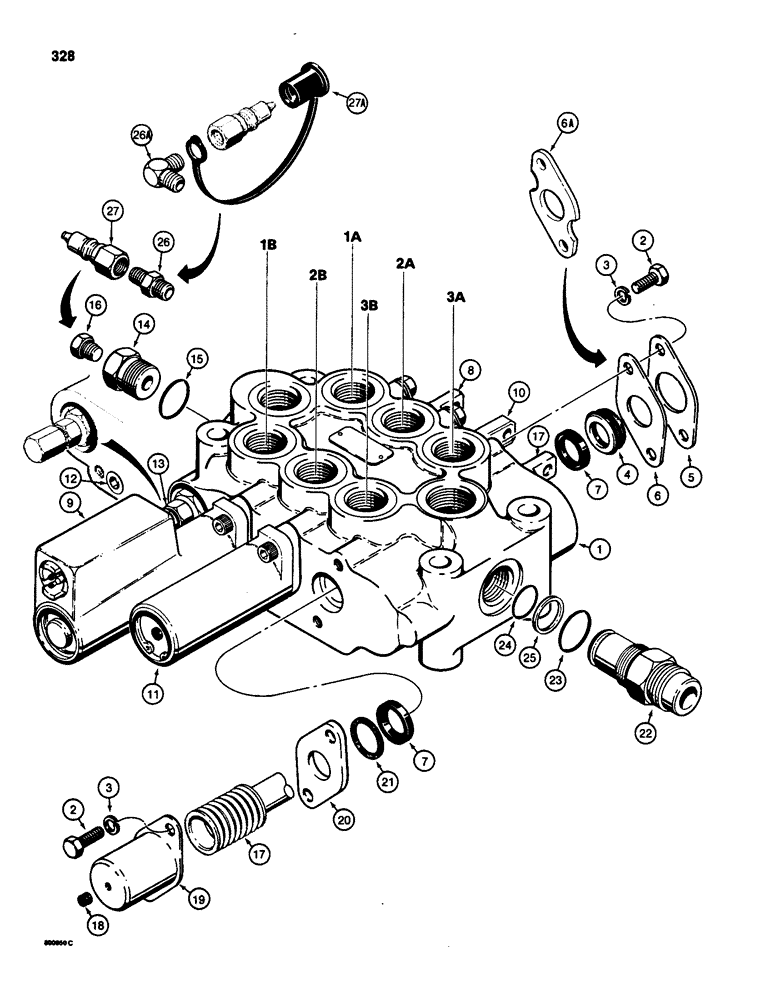

Запчасти Case 580SD (328) - HYDRECO LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS

D93887

VALVE

CONTROL VALVE - loader, three spool, Hydreco No. MVT025DYD25, longer available, order D123937 valve, Includes: Ref. 1 - 21

1шт.

D123937

VALVE

CONTROL VALVE - loader, three spool, Hydreco No. MVT025DYD28, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

3

92-5

LOCK WASHER,5/16"

8шт.

4

D82728

RING

WIPER - spool

3шт.

5

D82721

PLATE

- retaining, outer, valves with two piece plate only

3шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner, valves with two piece plate only

3шт.

6a

N8212

PLATE ASSY.

PLATE - retaining, one piece, can be used to service Refs. 5 and 6

3шт.

7

D82727

SEAL

- spool

6шт.

8

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list Figure 330

1шт.

9

N8215

DETENT

ASSEMBLY - bucket, parts list Figure 334

1шт.

10

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 330

1шт.

11

N8211

DETENT

ASSEMBLY - lift, parts list Figure 332

1шт.

12

REF

INSTRUCTION

CIRCUIT RELIEF VALVE ASSEMBLY - parts list Figure 336

2шт.

13

REF

INSTRUCTION

MAIN RELIEF VALVE ASSEMBLY - parts list Figure 336

1шт.

14

D36928

ADAPTER

FITTING - control valve port

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

16

L31759

PLUG - hex

1шт.

17

REF

INSTRUCTION

SPOOL - clam, parts list Figure 330

1шт.

18

D83096

PLUG

- spool cover

1шт.

19

D24779

COVER

- clam spool

1шт.

20

D82722

PLATE

- seal retainer

1шт.

21

D82723

BACK-UP RING

RING - backup

1шт.

D92152

FITTING

SLEEVE - power beyond, includes seals, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

FITTING - special sleeve

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- outer

1шт.

24

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- inner

1шт.

25

L32991

RING

BACKUP RING - inner O-ring

1шт.

26

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE), If used, Replaces 1/8" NPT nipple on some models 1/4"-18 NPTF

1шт.

26a

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degree, if used

1шт.

27

S206607

DISC

COUPLING - male, if used, replaces 1/8" NPT coupling on some models

1шт.

27a

D123387

DUST CAP

COVER - dust, if used

1шт.
