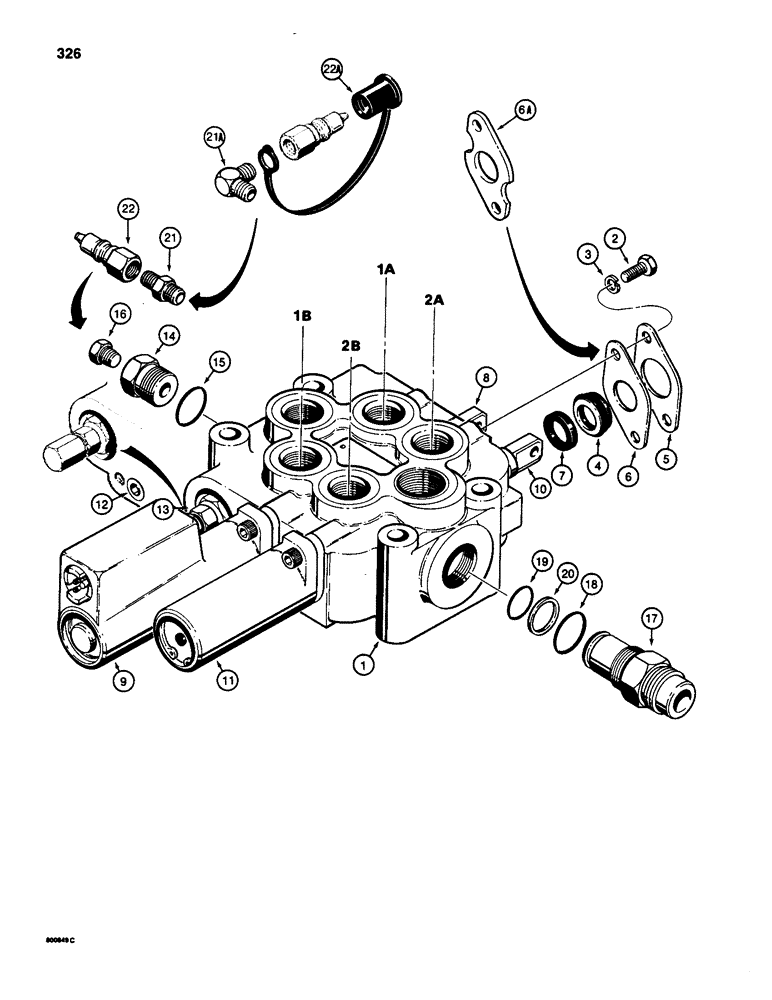

Запчасти Case 580SD (326) - HYDRECO LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
D93886
VALVE
CONTROL VALVE - loader, two spool, Hydreco No. MVT025DY36, no longer available, order D123494 valve, Includes: Ref. 1 - 16
1шт.
D123494
VALVE
CONTROL VALVE - loader, two spool, Hydreco No. MVT025DY42, Includes: Ref. 1 - 16
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
3
92-5
LOCK WASHER,5/16"
4шт.
4
D82728
RING
WIPER - spool
2шт.
5
D82721
PLATE
- retaining, outer, valves with two piece plate only
2шт.
6
D82720
PLATE ASSY.
PLATE - retaining, inner, valves with two piece plate only
2шт.
6a
N8212
PLATE ASSY.
PLATE - retaining, one piece, can be used to service Refs. 5 and 6
2шт.
7
D82727
SEAL
- spool
4шт.
8
REF
INSTRUCTION
SPOOL ASSEMBLY - bucket, parts list Figure 330
1шт.
9
N8215
DETENT
ASSEMBLY - bucket, parts list Figure 334
1шт.
10
REF
INSTRUCTION
SPOOL ASSEMBLY - lift, parts list Figure 330
1шт.
11
N8211
DETENT
ASSEMBLY - lift, parts list Figure 332
1шт.
12
REF
INSTRUCTION
CIRCUIT RELIEF VALVE ASSEMBLY - parts list Figure 336
2шт.
13
REF
INSTRUCTION
MAIN RELIEF VALVE ASSEMBLY - parts list Figure 336
1шт.
14
D36928
ADAPTER
FITTING - control valve port
1шт.
15
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- fitting
1шт.
16
L31759
PLUG - hex
1шт.
D92152
FITTING
SLEEVE - power beyond, includes seals, Includes: Ref. 17 - 20
1шт.
17
NSS
NOT SOLD SEPARAT
FITTING - special sleeve
1шт.
18
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
- outer
1шт.
19
D54165
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
- inner
1шт.
20
L32991
RING
BACKUP RING - inner O-ring
1шт.
21
217-1080
HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT
CONNECTOR, (NIPPLE, PIPE), If used 1/4"-18 NPTF
1шт.
21a
217-1225
ELBOW,90 Degree, 1/4"-18 Male
- 90 degree, if used
1шт.
22
S206607
DISC
COUPLING - male, if used
1шт.
22a
D123387
DUST CAP
COVER - dust, if used
1шт.
Выбрано товаров: 28
