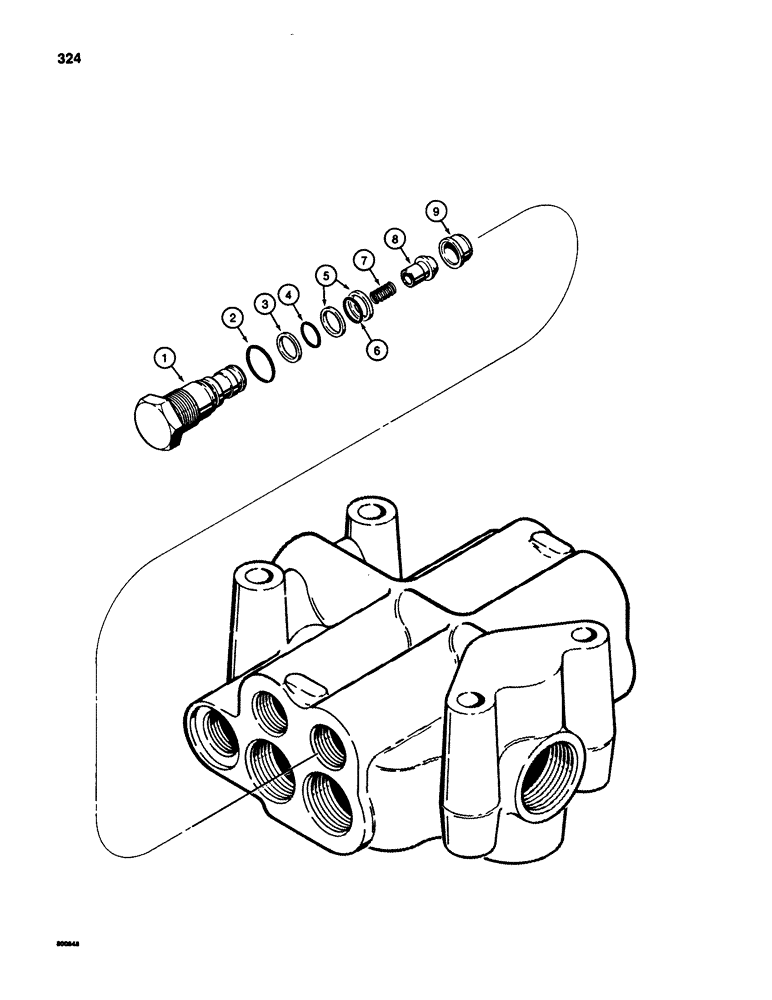

Запчасти Case 580SD (324) - PARKER LOADER CONTROL VALVE, LOAD CHECK VALVE (08) - HYDRAULICS

1

D37066

CAP

PLUG - load check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

3

D37071

RING

BACKUP RING - center O-ring

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small

2шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- small

1шт.

7

D37067

SPRING

- poppet

1шт.

8

D37068

VALVE POPPET

POPPET - load check valve

1шт.

9

D40358

SEAT

- poppet

1шт.
