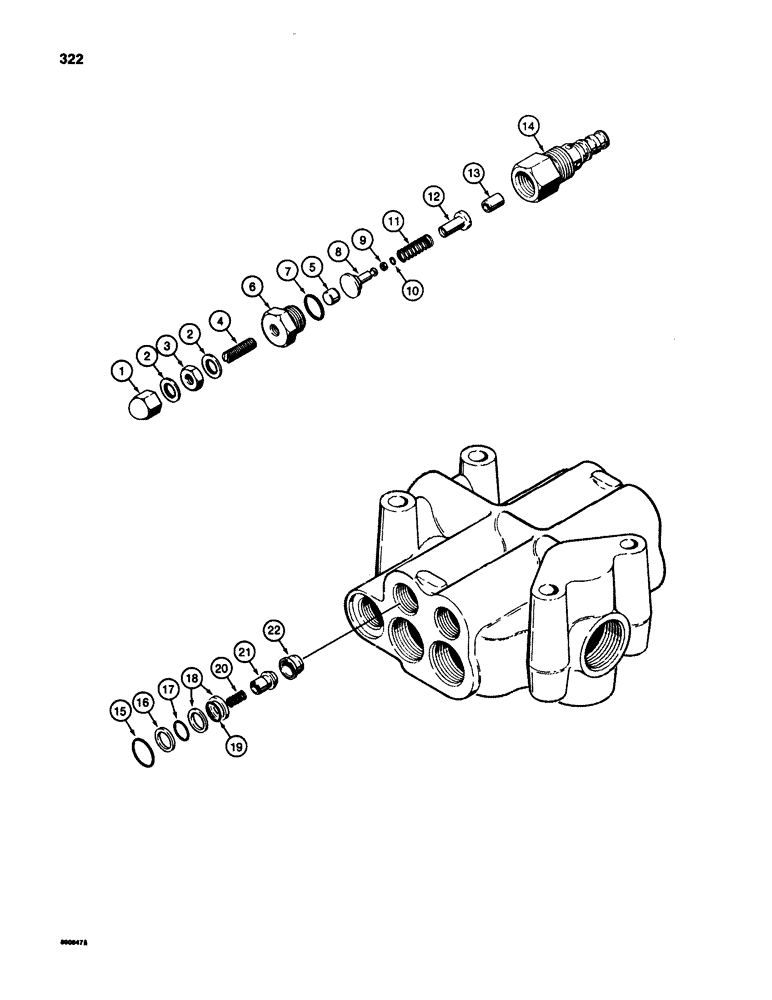

Запчасти Case 580SD (322) - PARKER LOADER CONTROL VALVE, CIRCUIT RELIEF VALVE AND LOAD CHECK VAVLE (08) - HYDRAULICS

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special, may be one or two piece part

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

4

176-297

SET SCREW,5/16"-24 x 1", Slotted

ADJUSTING SCREW - circuit relief valve, 5/16" - 24 NF x 1"

1шт.

5

N6042

PLUG

- stop

1шт.

6

D66437

CAP

- circuit relief valve, Includes: Ref. 7

1шт.

8

N7764

SPRING

GUIDE - spring, also order Ref. 12, must be replaced as a matched set with Ref. 12 on 580D

1шт.

9

D40357

RING

BACKUP RING - guide O-ring

1шт.

10

D40356

O-RING

- spring guide

1шт.

11

D37148

SPRING

- poppet

1шт.

12

N7765

PLUNGER

circuit relief valve, also order Ref. 8, must be replaced as a matched set with Ref. 8 on 580D

1шт.

13

D37075

SEAT

- poppet

1шт.

14

D37072

CAP

BODY - circuit relief valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

16

D37071

RING

BACKUP RING - center O-ring

1шт.

17

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

18

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small O-ring

2шт.

19

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- small

1шт.

20

D37067

SPRING

- poppet

1шт.

21

D37068

VALVE POPPET

POPPET - load check valve

1шт.

22

D40358

SEAT

- poppet

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- cap

1шт.
