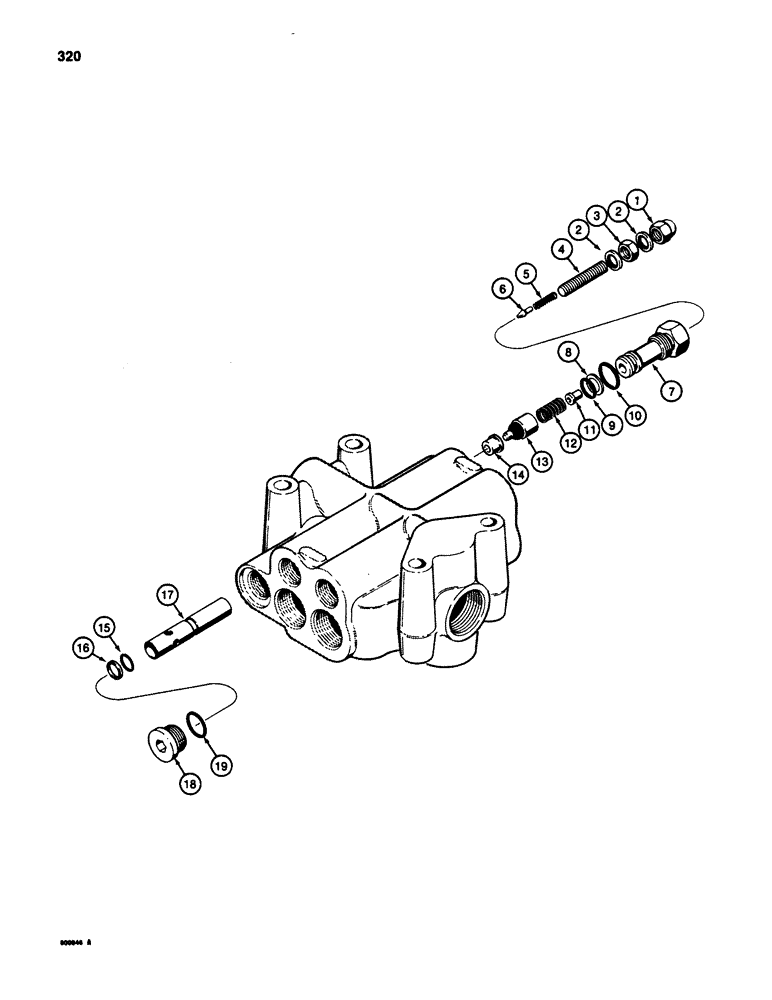

Запчасти Case 580SD (320) - PARKER LOADER CONTROL VALVE, MAIN RELIEF VALVE (08) - HYDRAULICS

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16"

1шт.

2

D26270

WASHER, SEALING

WASHER - special, may be one or two piece part

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

ADJUSTING SCREW - main relief valve, 5/16" - 24 NF x 1-3/4"

1шт.

5

D26268

SPRING

- plunger

1шт.

6

D26267

PLUNGER

- main relief valve

1шт.

7

A25291

CAP

BODY - main relief valve

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - L30444 O-ring

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

- small

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- poppet

1шт.

13

D37062

VALVE

POPPET ASSEMBLY - main relief valve

1шт.

14

D37063

SEAT

- poppet

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

- sleeve seat

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - L30444 O-ring

1шт.

17

D83201

SLEEVE

- seat

1шт.

18

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Main relief valve, Incl Ref 19 Hex Soc, 3/4"-16 ORB

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- large

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
