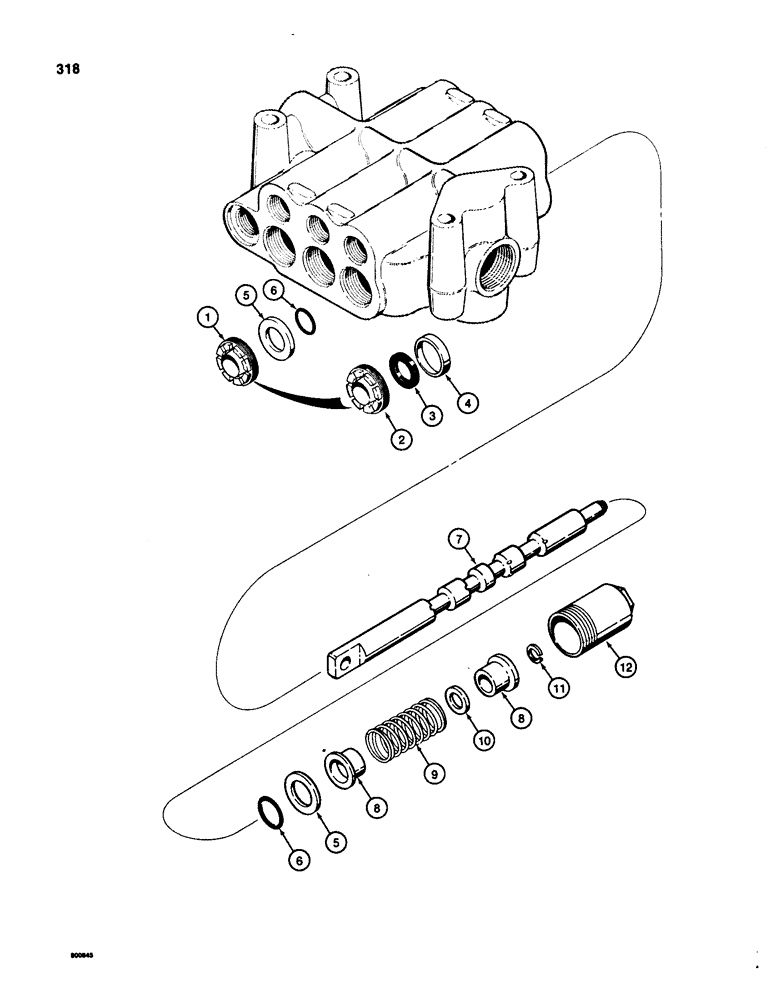

Запчасти Case 580SD (318) - PARKER LOADER CONTROL VALVE, LOADER CLAM SPOOL (08) - HYDRAULICS

D37050

SPOOL

ASSEMBLY - loader clam, Includes: Ref. 1 - 12

1шт.

1

D80412

GLAND

AND WIPER ASSEMBLY - spool, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - spool

1шт.

3

A14527

SCRAPER

WIPER - spool

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - gland

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool seal, control valve body

2шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - clam control

1шт.

8

A14533

BRONZE BUSHING

SEAT - spring

2шт.

9

A14534

SPRING

CENTERING SPRING - spool

1шт.

10

A25286

WASHER

- special

1шт.

11

A27020

RING

SNAP RING - spring seat

1шт.

12

A14529

CAP

HOUSING - spring

1шт.
