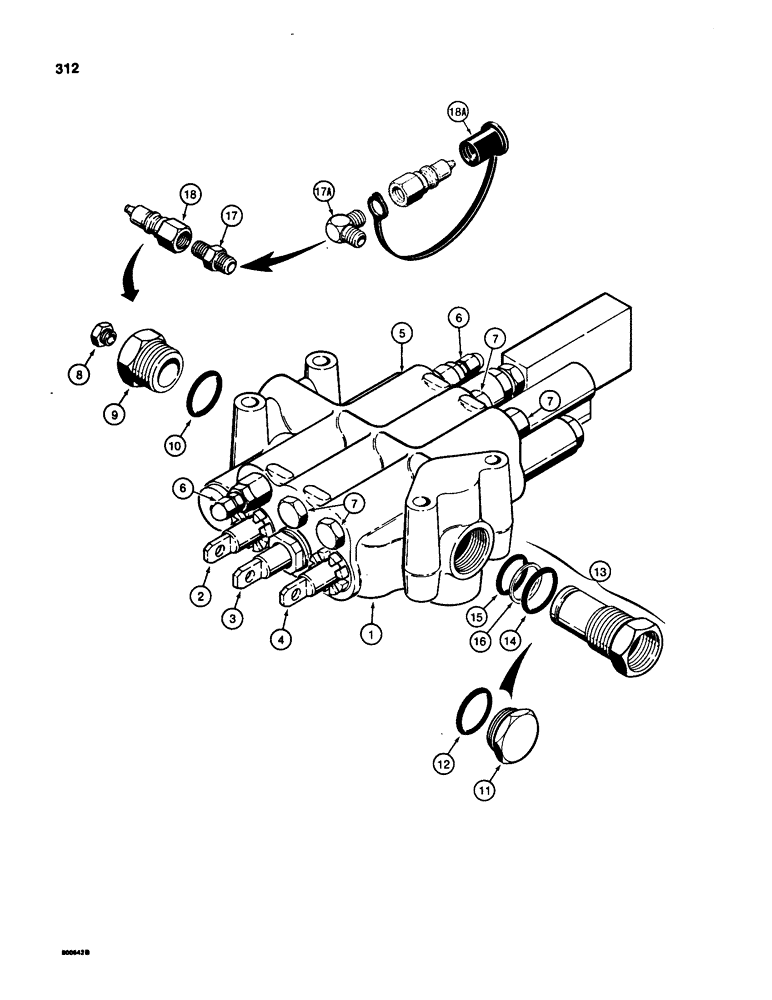

Запчасти Case 580SD (312) - PARKER LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS

1

D93885

VALVE

CONTROL VALVE - loader, three spool, Parker No. VDSP22DFD44, no longer available, order D123470 valve, Includes: Ref. 2 - 12

1шт.

1

D121334

VALVE

CONTROL VALVE - loader, three spool, Parker No. VDSP22DFD45, no longer available, order D123470 valve, Includes: Ref. 2 - 12

1шт.

1

D123470

VALVE

CONTROL VALVE - loader, three spool, Parker No. VDSP22DFD46, Includes: Ref. 2 - 12

1шт.

2

N8524

SPOOL

- loader bucket, parts list Figure 316

1шт.

3

N6592

VALVE

SPOOL - loader lift, parts list Figure 314

1шт.

4

D37050

SPOOL

- loader clam, parts list Figure 318

1шт.

5

NSS

NOT SOLD SEPARAT

MAIN RELIEF VALVE - parts list Figure 320

1шт.

6

NSS

NOT SOLD SEPARAT

CIRCUIT RELIEF AND LOAD CHECK VALVE - parts list Figure 322

2шт.

7

NSS

NOT SOLD SEPARAT

LOAD CHECK VALVE - parts list Figure 324

4шт.

8

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex head, 1/4" NPT, do not use plated plug at this location

1шт.

9

D38825

ADAPTER

PLUG - control valve port, Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Control valve port, if used, replace with Ref 13; Incl. Ref 12 Hex Soc, 1 5/16"-12 ORB

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

13

D89496

FITTING

SLEEVE - power beyond, Includes: Ref. 14 - 16

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

15

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- small

1шт.

16

L31332

BACK-UP RING

BACKUP RING - small O-ring

1шт.

17

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE), If used 1/4"-18 NPTF

1шт.

17a

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degree, if used

1шт.

18

S206607

DISC

COUPLING - male, if used

1шт.

18a

D123387

DUST CAP

COVER - dust, if used

1шт.
