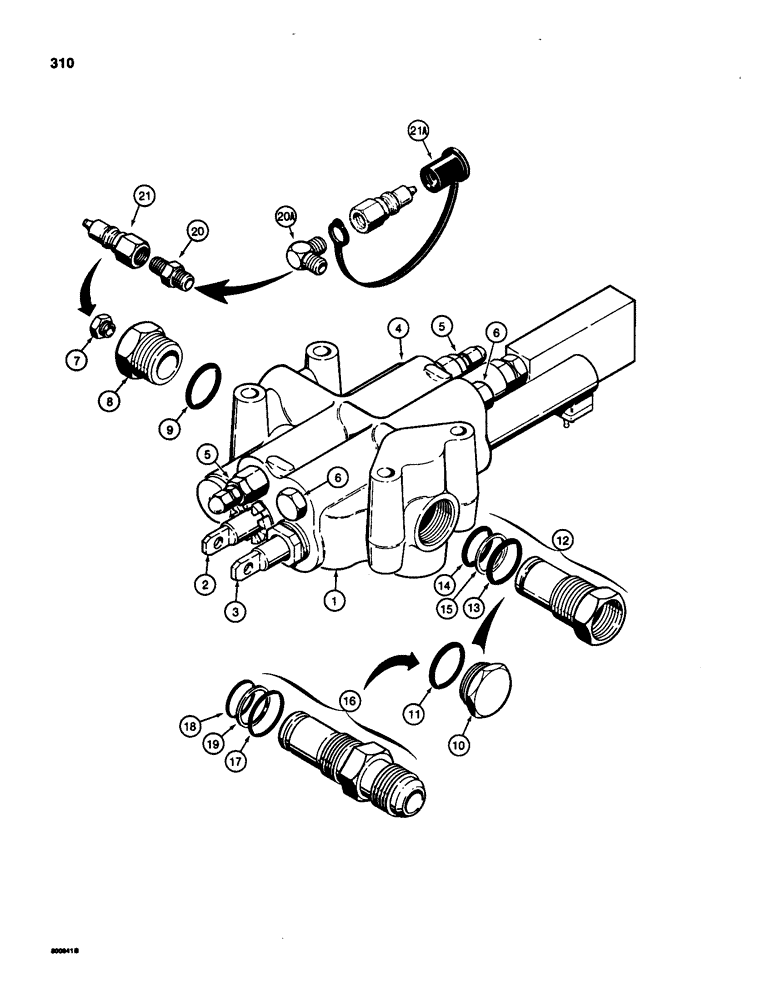

Запчасти Case 580SD (310) - PARKER LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D93884
VALVE
CONTROL VALVE - loader, two spool, Parker No. VDSP22DF71, no longer available, order D122746 valve, Includes: Ref. 2 - 11
1шт.
1
D121333
VALVE
CONTROL VALVE - loader, two spool, Parker No. VDSP22DF74, no longer available, order D122746 valve, Includes: Ref. 2 - 11
1шт.
1
D122746
VALVE
CONTROL VALVE - loader, two spool, Parker No. VDSP22DF75, Includes: Ref. 2 - 11
1шт.
2
N8524
SPOOL
- loader bucket, parts list Figure 316
1шт.
3
N6592
VALVE
SPOOL - loader lift, parts list Figure 314
1шт.
4
NSS
NOT SOLD SEPARAT
MAIN RELIEF VALVE - parts list Figure 320
1шт.
5
NSS
NOT SOLD SEPARAT
CIRCUIT RELIEF AND LOAD CHECK VALVE - parts list Figure 322
2шт.
6
NSS
NOT SOLD SEPARAT
LOAD CHECK VALVE - parts list Figure 324
2шт.
7
221-662
PLUG,Hex Hd, 1/4"-18
- pipe, hex head, 1/4" NPT, do not use plated plug at this location
1шт.
8
D38825
ADAPTER
PLUG - control valve port, Includes: Ref. 9
1шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug
1шт.
10
218-5214
PLUG,Hex Soc, 1 5/16"-12 ORB
Control valve port, D93884 or D121333 valve, if used, replace with Ref 12 or 16; Incl. Ref 11 Hex Soc, 1 5/16"-12 ORB
1шт.
11
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- plug
1шт.
12
D89496
FITTING
SLEEVE - power beyond, if used, Includes: Ref. 13 - 15
1шт.
13
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- large
1шт.
14
A58602
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
- small
1шт.
15
L31332
BACK-UP RING
BACKUP RING - small O-ring
1шт.
16
D92756
FITTING
SLEEVE - power beyond, if used, Includes: Ref. 17 - 19
1шт.
17
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- large
1шт.
18
A58602
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
- small
1шт.
19
L31332
BACK-UP RING
BACKUP RING - small O-ring
1шт.
20
217-1080
HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT
CONNECTOR, (NIPPLE, PIPE), If used 1/4"-18 NPTF
1шт.
20a
217-1225
ELBOW,90 Degree, 1/4"-18 Male
- 90 degree, if used
1шт.
21
S206607
DISC
COUPLING - male, if used
1шт.
21a
D123387
DUST CAP
COVER - dust, if used
1шт.
