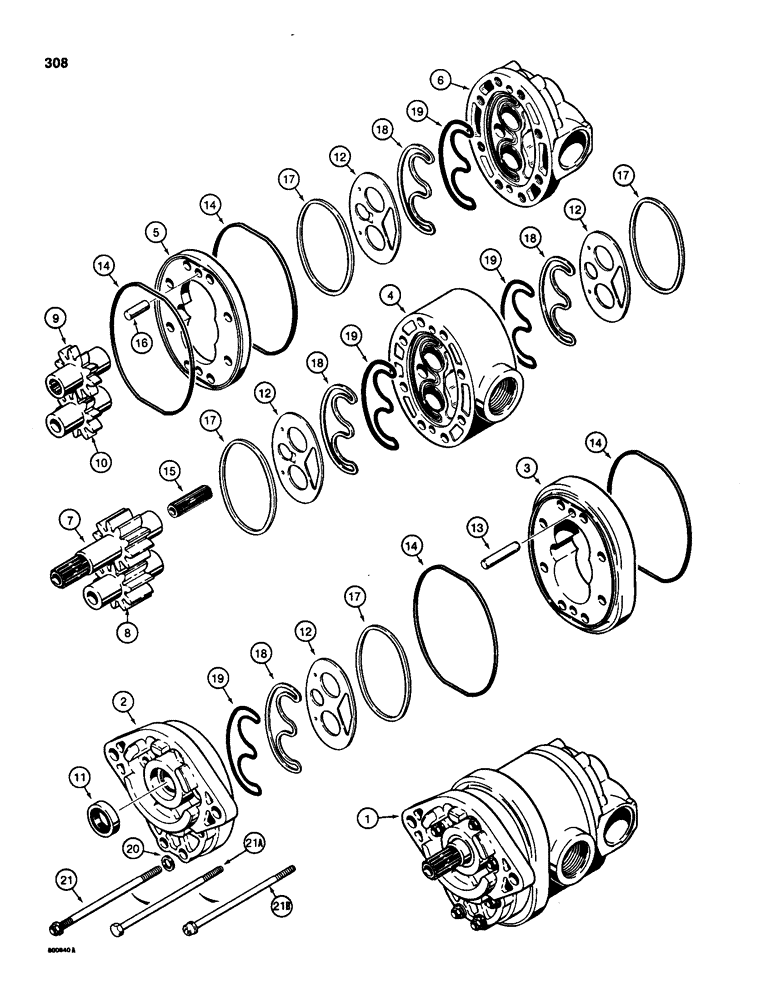

Запчасти Case 580SD (308) - WEBSTER HYDRAULIC PUMP (08) - HYDRAULICS

1

D93204

PUMP

HYDRAULIC PUMP - equipment and steering, Webster No. 152-45207-100, no longer available, for service order D126580 pump, Includes: Ref. 2 - 21B

1шт.

1

D120526

PUMP

HYDRAULIC PUMP - equipment and steering, Webster No. 152-45207-106, no longer available, for service order D126580 pump, Includes: Ref. 2 - 21B

1шт.

1

D126580

PUMP

HYDRAULIC PUMP - equipment and steering, Webster No. 152-45207-115, Includes: Ref. 2 - 21B

1шт.

2

N6885

COVER

- mounting, drive shaft end

1шт.

3

N6892

PLATE

GEAR HOUSING - drive shaft end

1шт.

4

N6887

PLATE

CARRIER - bushing

1шт.

5

N6895

PLATE

GEAR HOUSING - gear, port end

1шт.

6

N6886

COVER

- port end

1шт.

7

N6888

GEAR

DRIVE GEAR - equipment hydraulic circuit, must also replace driven gear N6890 (Ref. 8) as a matched set

1шт.

8

N6890

GEAR

DRIVEN GEAR - equipment hydraulic circuit, must also replace drive gear N6888 (Ref. 7) as a matched set

1шт.

9

N6889

GEAR

DRIVE GEAR - steering circuit, must also replace driven gear N6891 (Ref. 10) as a matched set

1шт.

10

N6891

GEAR

DRIVEN GEAR - steering circuit, must also replace drive gear N6889 (Ref. 9) as a matched set

1шт.

11

A23903

OIL SEAL

- drive shaft

1шт.

12

A45046

WEAR PLATE

PLATE - wear

4шт.

13

N6893

PIN

DOWEL PIN - drive shaft end plate

2шт.

14

N6896

SEALING RING

- ring

4шт.

15

N6899

COUPLING

- drive and driven gear

1шт.

16

N6894

PIN

DOWEL PIN - bearing, Serial Range: plate-cover

2шт.

17

D54169

SEALING RING

SEAL - ring

4шт.

18

D54168

SEAL

SEAL - backup

4шт.

19

D54167

SEAL

SEAL - pre-load

4шт.

20

A45050

WASHER

- special

8шт.

21

NSS

NOT SOLD SEPARAT

STUD AND NUT - special, order 21A or 21B

8шт.

21a

26-692

CAPSCREW,Hex, 3/8" - 16 x 5 3/4", Gr 8

BOLT - hex head, 3/8" - 16 NC x 5-3/4", grade 8

6шт.

21b

61-692

HEX SOC SCREW,3/8"-16 x 5 3/4"

BOLT - hex socket head, 3/8" - 16 NC x 5-3/4"

2шт.
