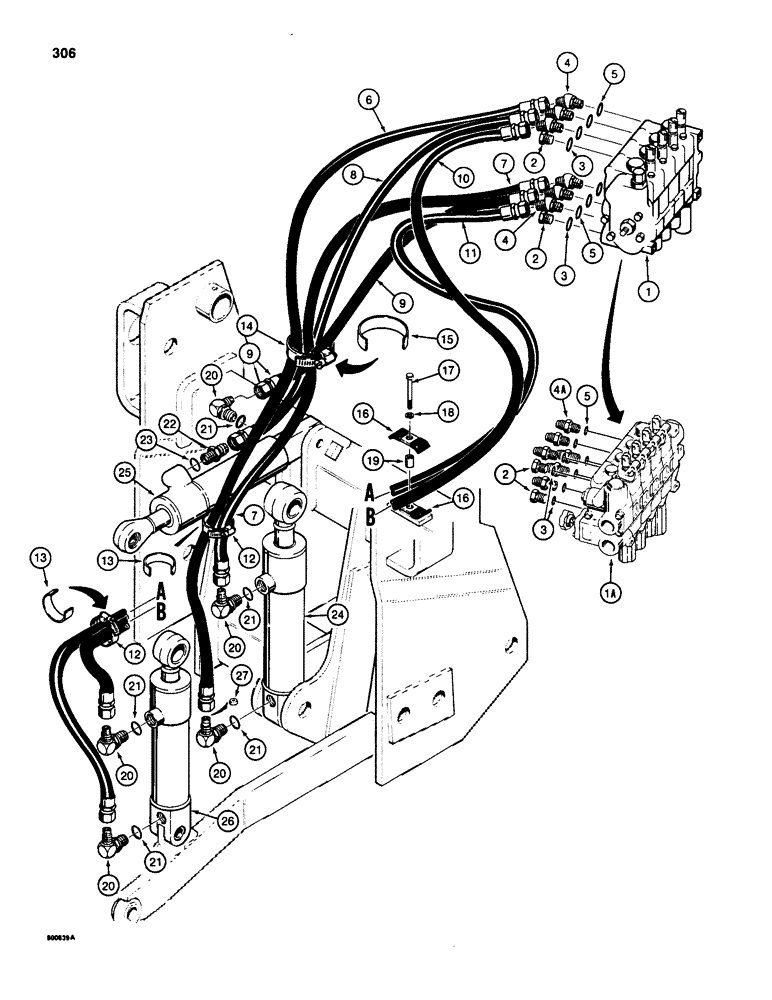

Запчасти Case 580SD (306) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH HYDRAULIC HITCH (08) - HYDRAULICS

1

D93603

CONTROL VALVE - hitch, four spool, without flow control regulator knob, parts list Figure 366

1шт.

1a

D124205

VALVE

CONTROL VALVE - hitch, four spool, with flow control regulator knob, parts list Figure 368

1шт.

2

214389

PLUG,3/4" - 16 ORB

Control valve ports, if used, Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, male, control valve ports, Used with Ref 1 only

6шт.

4a

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAReRefef. 5

6шт.

6

D36129

HOSE ASSY.

HOSE - 57" (1448 mm) long, to closed end of lift cylinder

1шт.

7

D51688

HOSE

- 42" (1068 mm) long, to rod end of lift cylinder

1шт.

8

R32709

HOSE ASSY.

HOSE - 40" (1016 mm) long, to rod end of pitch cylinder

1шт.

9

R30836

HOSE

- 28" (711 mm) long, to closed end of pitch cylinder

1шт.

10

D51686

HOSE

- 54" (1372 mm) long, to rod end of tilt cylinder

1шт.

11

D51685

HOSE

- 66" (1676 mm) long, to closed end of tilt cylinder

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, small

2шт.

13

D95251

TUBE

GUARD - hose protector

2шт.

14

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, large

1шт.

15

D95252

TUBE

GUARD - hose protector

1шт.

16

D33316

CLAMP

- hose

2шт.

17

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

D34244

SPACER

- hose clamp

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Includes: Ref. 21

5шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 23 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

24

G101189

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 418

1шт.

25

G33128

JACK BODY

CYLINDER - pitch, parts list Figure 422

1шт.

26

G101188

JACK BODY

CYLINDER - tilt, parts list Figure 420

1шт.

27

D71629

FITTING

RESTRICTOR - flow control, used with Ref. 1A

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 218-5136 elbow or 218-5059 adapter

1шт.
