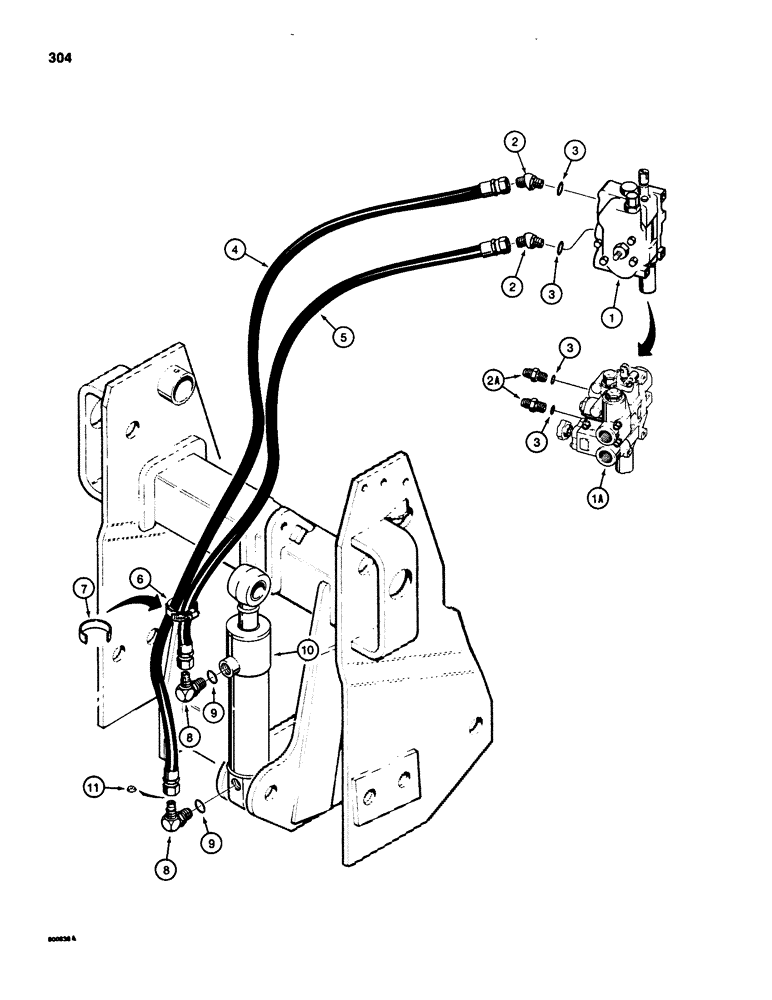

Запчасти Case 580SD (304) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH MECHANICAL HITCH (08) - HYDRAULICS

1

D93604

CONTROL VALVE - hitch, one spool, without flow control regulator knob, parts list Figure 366

1шт.

1a

D124204

VALVE

CONTROL VALVE - hitch, one spool, with flow control regulator knob, parts list Figure 368

1шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, male, Used with Ref 1 only

2шт.

2a

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADARefRefef. 3

2шт.

4

D36129

HOSE ASSY.

HOSE - 57" (1448 mm) long, to closed end of lift cylinder

1шт.

5

D51688

HOSE

- 42" (1068 mm) long, to rod end of lift cylinder

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

7

D95251

TUBE

GUARD - hose protector

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

G101189

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 418

1шт.

11

D71629

FITTING

RESTRICTOR - flow control, used with Ref. 1A

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 218-5136 elbow or 218-5059 adapter

1шт.
