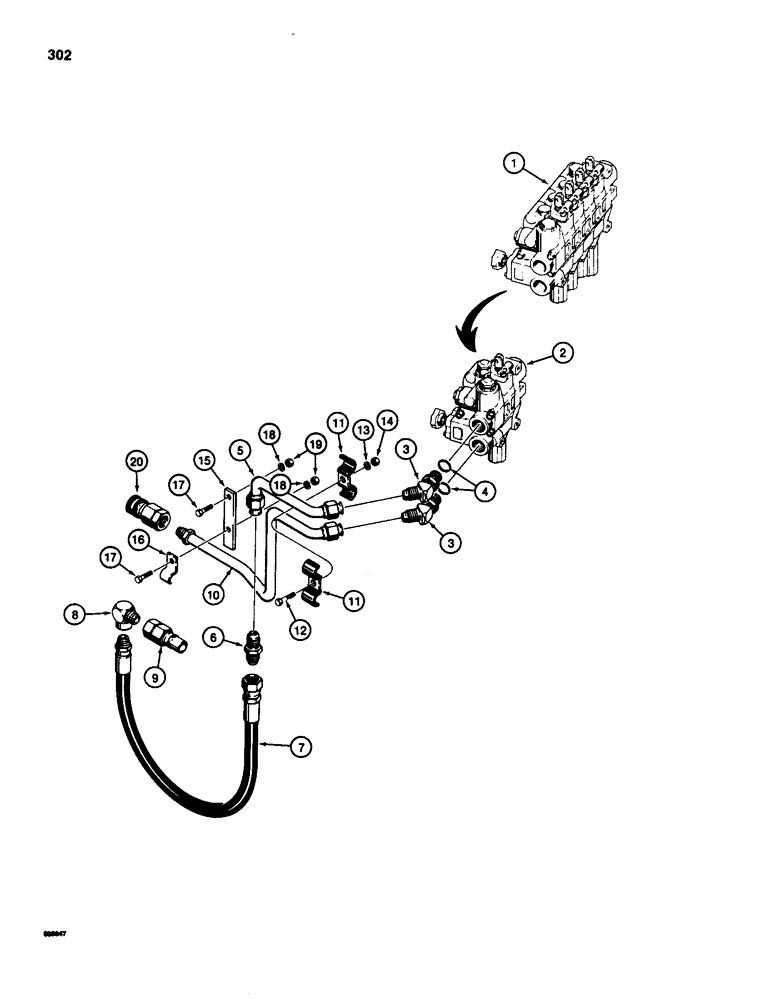

Запчасти Case 580SD (302) - THREE-POINT HITCH VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

REF

INSTRUCTION

For models which use a three-point hitch control valve without a flow control regulator knob, see page 300.

1шт.

1

D124205

VALVE

CONTROL VALVE - hitch, four spool, for hydraulic hitch only, parts list Figure 368

1шт.

2

D124204

VALVE

CONTROL VALVE - hitch, one spool, for mechanical hitch only, parts list Figure 368

1шт.

3

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 4

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

5

D124893

TUBE ASSY.

TUBE - upper valve port

1шт.

6

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, upper tube to hose

1шт.

7

36232

HOSE ASSY.

HOSE - 32" (813 mm) long, from upper tube

1шт.

8

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

9

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 386

1шт.

10

D124895

TUBE ASSY.

TUBE - lower valve port

1шт.

11

R15257

CLAMP

- tube

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D124920

STRAP

PLATE - tube support

1шт.

16

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 386

1шт.
