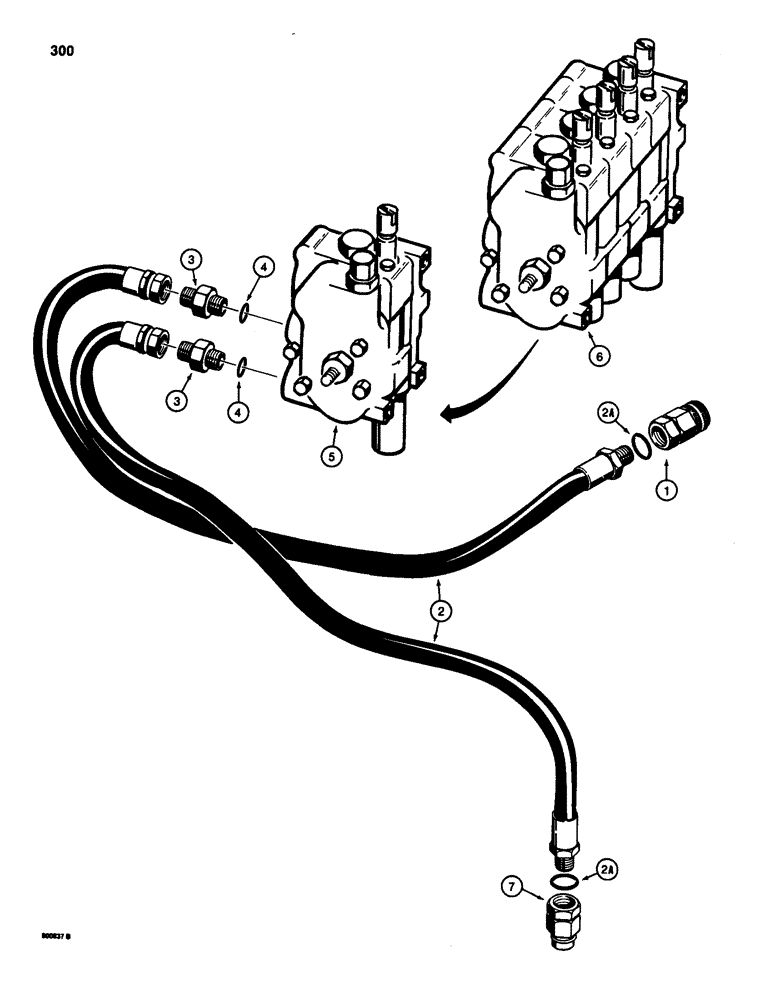

Запчасти Case 580SD (300) - THREE-POINT HITCH VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

REF

INSTRUCTION

For models which use a three-point hitch control valve with flow control regulator knob, see page 302.

1шт.

1

D90502

COUPLING

- hydraulic, female, parts list Figure 388

1шт.

2

D120265

HOSE

- 29-1/2" (750 mm) long, control valve inlet and outlet, Includes: Ref. 2A

2шт.

3

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 4

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

5

D93604

CONTROL VALVE - one spool, for mechanical hitch only, parts list Figure 366

1шт.

6

D93603

CONTROL VALVE - four spool, for hydraulic hitch only, parts list Figure 366

1шт.

7

D90501

COUPLING

- hydraulic, male, parts list Figure 388

1шт.

2a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.
