Запчасти Case 580SD (298) - BACKHOE BOOM LOCK HYDRAULIC CIRCUIT (08) - HYDRAULICS

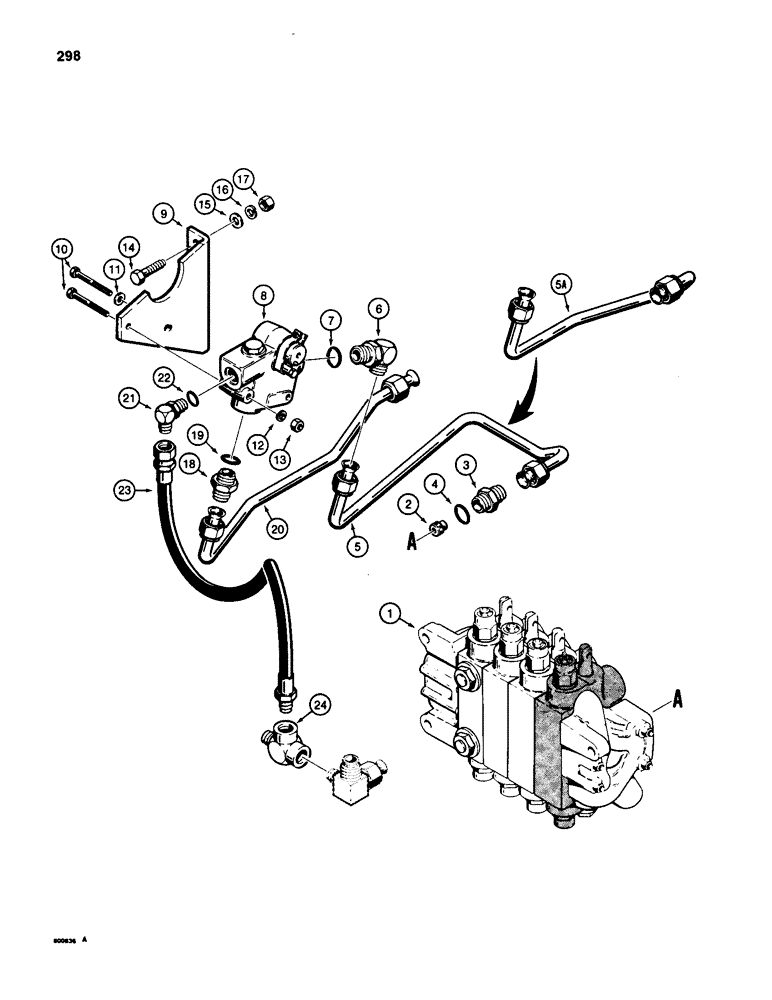

Схема запчастей Case 580SD - (298) - BACKHOE BOOM LOCK HYDRAULIC CIRCUIT (08) - HYDRAULICS
9
4
17
14
22
10
19
11
15
21
12
3
8
6
20
5a
18
1
13
23
7
5
2
16
24

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 340 or 342, for mounting plate, see Figure 278, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves see Figure 340 or 342

1шт.

2

D77182

FITTING

RESTRICTOR - check, lower valve port, not used on Super D models, Serial Range: -D93207

1шт.

2

D93207

FITTING

RESTRICTOR - check, lower valve port, used on Super D models only, Start Serial: D77182

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

5

D88619

HYD TUBE,0.75" OD

TUBE - from backhoe control valve to boom lock valve, models with foot swing

1шт.

5a

D91878

TUBE,0.75" OD

- from backhoe control valve to boom lock valve, models with hand swing

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

8

D88644

VALVE

- boom lock, parts list Figure 360

1шт.

9

D89347

BRACKET

- boom lock valve

1шт.

10

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

15

95-8

WASHER,1/2"

flat 1/2"

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

20

D88621

TUBE,0.75" OD

- boom lock valve to rod end boom cylinder

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, male, Includes: Ref. 22

1шт.

23

D89350

HOSE

- 21-5/8" (550 mm) long, boom lock valve return

1шт.

24

217-1065

TEE,3/4" - 14 Female x 3/4" - 14 Male Run

- backhoe return lines, for related parts see Refs. 51 and 52 on Figure 276

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
