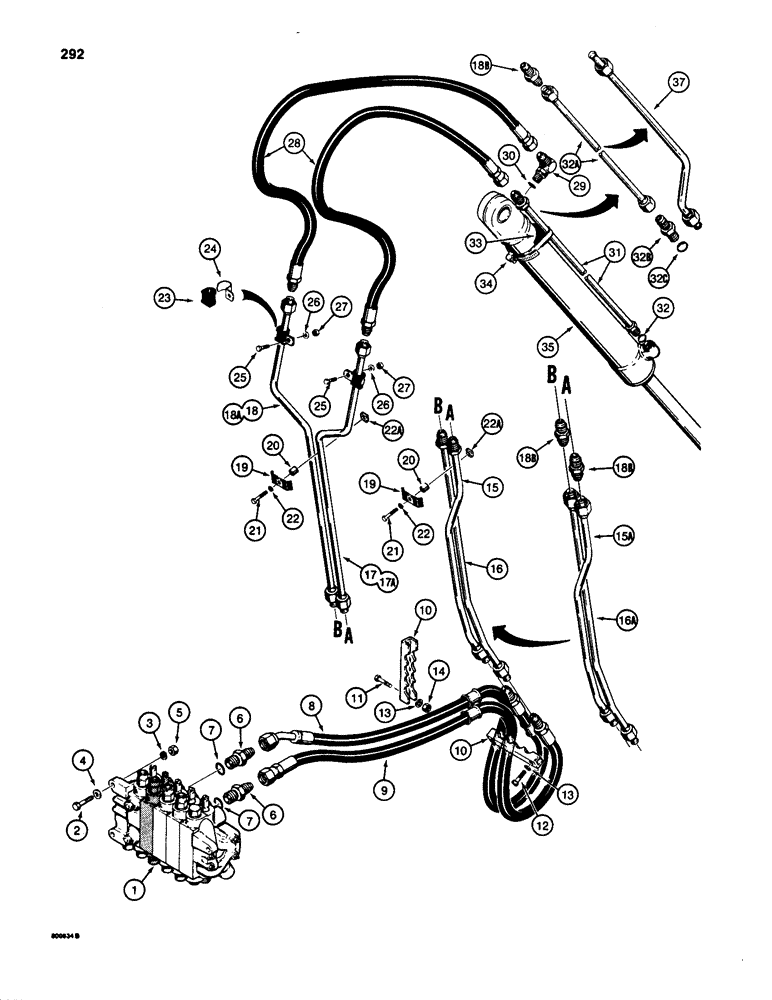

Запчасти Case 580SD (292) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 340 or 342, for valve mounting plate see Figure 278, valve shown is for foot swing models, for correct valve section location with hand swing see Figure 340 or 342

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

- 50" (1270 mm) long, top port

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

- 46-7/8" (1190 mm) long, bottom port

1шт.

10

D92721

CLAMP

- hoses

2шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-3/4"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

D89502

HYD TUBE,19.05 mm OD x 90, 971 mm L

TUBE - from upper port, if used

1шт.

15a

D123141

TUBE

- from upper port, used with 218-737 connector (Ref. 18B), if used

1шт.

16

D89500

HYD TUBE,19.05 mm OD x 1001, 101 mm L

TUBE - from lower port, if used

1шт.

16a

D123143

TUBE

- from lower port, used with 218-737 connector (Ref. 18B), if used

1шт.

17

D77848

TUBE

- right-hand, upper, if used

1шт.

17a

D123139

TUBE

- right-hand, upper, used with D123141 tube (Ref. 15A),^if used

1шт.

18

D77846

TUBE

- left-hand, upper, if used

1шт.

18a

D123145

TUBE

- left-hand, upper, used with D123143 tube (Ref. 16A), if used

1шт.

18b

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - male

3шт.

P/N 218-5123 elbow, Ref. 29, and 218-737 connector, Ref. 18B, are reversed on models with hand swing.

1шт.

19

D40236

CLAMP

- metal, tubes to boom, replaces plastic tube clamps on some models

2шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, welded to boom, if used

2шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

24

D74192

CLAMP

- tube

2шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

27

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated.

2шт.

28

D52566

HOSE

- 70" (1778 mm) long, to bucket cylinder

2шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, at closed end port, Includes: Ref. 30

1шт.

P/N 218-5123 elbow, Ref. 29, and 218-737 connector, Ref. 18B, are reversed on models with hand swing.

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

31

D55050

HOSE

TUBE - to rod end port, male ends, models with foot swing, see Ref. 37, no longer available, for service order D123159 tube (Ref. 32A), (1) 218-737 connector (Ref. 18B), and (1) 218-5065 adapter (Ref. 32B), Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- D55050 tube

1шт.

32a

D123159

TUBE

- to rod end port, used with 218-737 connector (Ref. 18B), models with foot swing, see Ref. 37

1шт.

32b

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 32C

1шт.

32c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

33

D38648

BLOCK

SPACER - tube, rubber

1шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

35

REF

INSTRUCTION

CYLINDER - bucket, for correct assembly and components, see parts list Figure 412 or 414

1шт.

36

RESERVED

1шт.

37

D92158

HYD TUBE,19.05 mm OD x 92, 799 mm L

TUBE - to rod end port, models with hand swing, see Refs. 31 and 32A

1шт.
