Запчасти Case 580SD (290) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

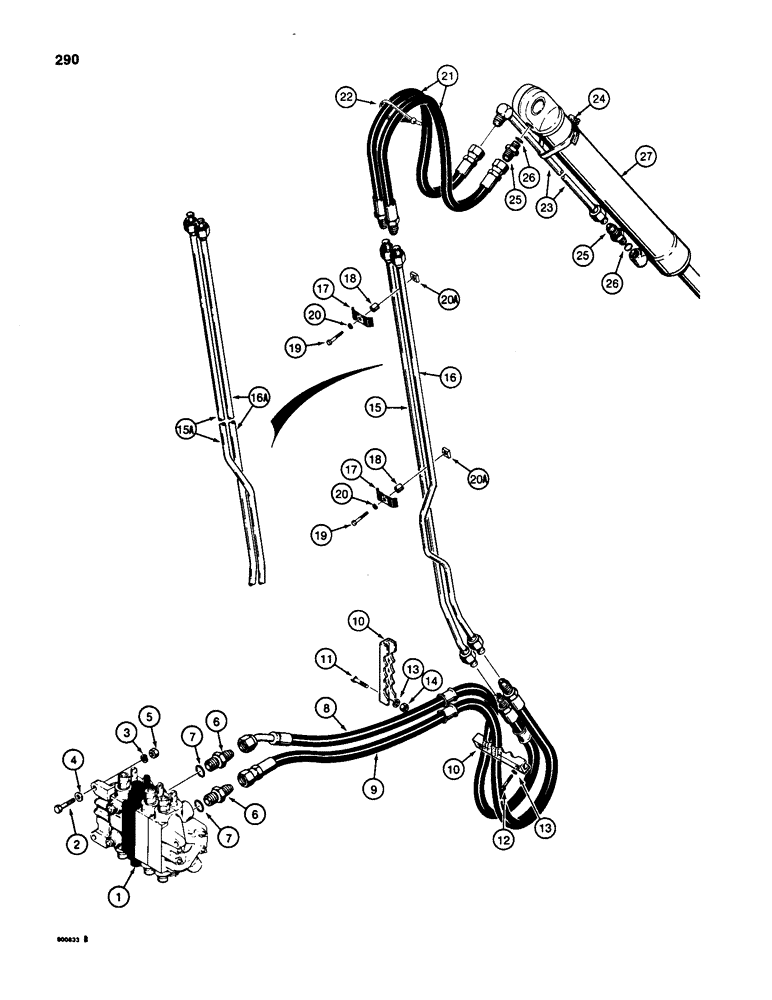

Схема запчастей Case 580SD - (290) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS
19
7
20
7
26
9
2
19
10
13
27
16a
8
24
12
18
16
20a
6
26
1
14
13
10
6
25
5
15a
17
25
15
22
23
21
18
20
17
11
4
3
20a

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 340 or 342, for mounting plate, see Figure 278, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves see Figure 340 or 342

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

- 50" (1270 mm) long, top port

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

- 46-7/8" (1190 mm) long, bottom port

1шт.

10

D92721

CLAMP

- hose

2шт.

11

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex head, 1/2" - 13 NC x 1-3/4"

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

D91204

HYD TUBE,19.05 mm OD x 1835, 90 mm L

TUBE - top port to rod end of bucket cylinder, used on models with foot swing

1шт.

15a

D94423

HYD TUBE,19.05 mm OD x 1865, 101 mm L

TUBE - bottom port to rod end of bucket cylinder, used on models with hand swing

1шт.

16

D91206

HYD TUBE,19.05 mm OD x 107, 1865 mm L

TUBE - bottom port to closed end of bucket cylinder, used on models with foot swing

1шт.

16a

D94421

HYD TUBE,19.05 mm OD x 1835, 112 mm L

TUBE - top port to closed end of bucket cylinder, used on models with hand swing

1шт.

17

D40236

CLAMP

- metal, Serial Range: tubes-boom

2шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

2шт.

21

D50372

HOSE

- 34" (864 mm) long, to bucket cylinder

2шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

D58609

TUBE

- to rod end of bucket cylinder

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

27

REF

INSTRUCTION

CYLINDER - bucket, for correct assembly and components, see parts list Figure 412 or 414

1шт.
