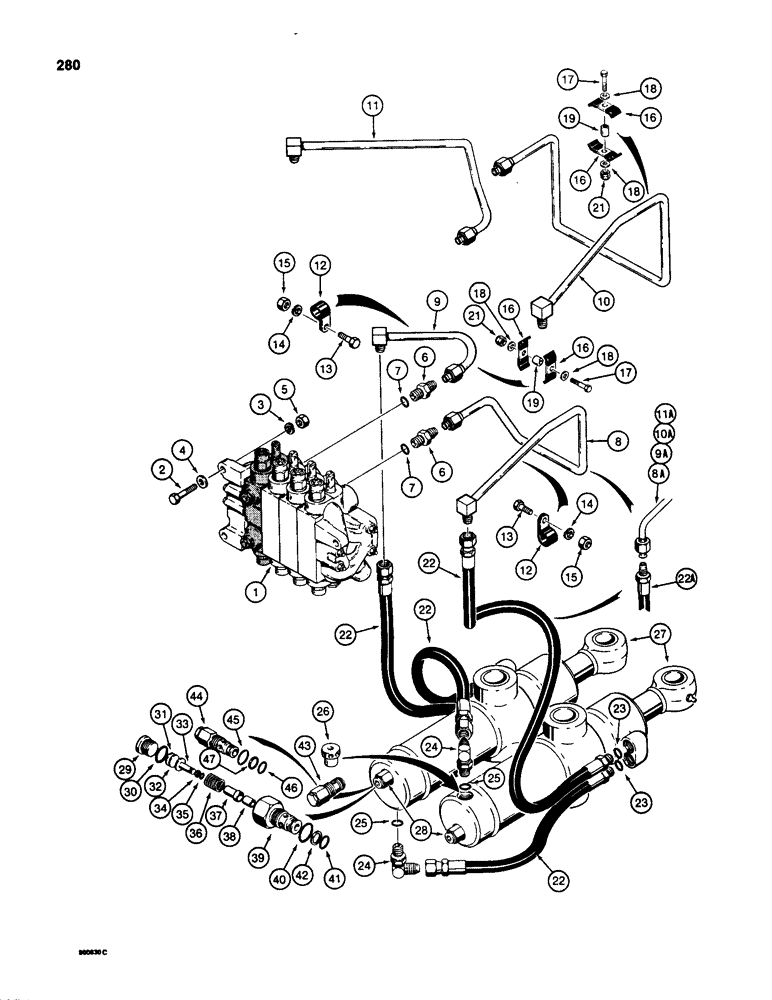

Запчасти Case 580SD (280) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 340 or 342, for mounting plate see Figure 276, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves see Figure 340 or 342

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

D88960

TUBE

- bottom port to right-hand swing cylinder, models with foot swing, if used

1шт.

8a

D94546

HYD TUBE

TUBE - bottom port to right-hand swing cylinder, models with foot swing, if used

1шт.

9

D88962

TUBE

- top port to left-hand swing cylinder, models with foot swing, no longer used, order D94544 tube and D94547 hose (Ref. 22A)

1шт.

9a

D94544

HYD TUBE,15.88 mm OD x 479, 70 mm L

TUBE - top port to left-hand swing cylinder, models with foot swing, if used

1шт.

10

D91821

TUBE

- top port to right-hand swing cylinder, models with hand swing, if used

1шт.

10a

D121681

TUBE

- top port to right-hand swing cylinder, models with hand swing, if used

1шт.

11

D91819

HYD TUBE,15.88 mm OD x 343, 161 mm L

TUBE - bottom port to left-hand swing cyinder, models with hand swing, if used

1шт.

11a

D121679

TUBE

- bottom port to left-hand swing cylinder, models with hand swing, if used

1шт.

12

T50103

CLAMP

- P-type, tube, mounting plate to swing tube

2шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

16

D40236

CLAMP

- metal, swing tube to boom tube, replaces plastic tube clamps on some models

2шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

1шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

22

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- 24" (610 mm) long, swing cylinders, used between cylinders and with Refs. 8, 9, 10, or 11, see Ref. 22A

2-4шт.

22a

D94547

HOSE

- 22-3/4" (577 mm) long, tubes to swing cylinders, used with Refs. 8A, 9A, 10A, or 11A, Includes: Ref. 23

2шт.

24

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

26

D121822

VALVE

RESTRICTOR - flow control, models without extendable dipper, not on Super D models

2шт.

26

D121529

STOP

RESTRICTOR - flow control, models with extendable dipper, not used on Super D models

2шт.

26

D121828

VALVE

RESTRICTOR - flow control, Super D models, with or without extendable dipper

2шт.

28

D47557

VALVE

RELIEF VALVE - Allen head, if used, Includes: Ref. 29 - 42

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Relief valve, Incl Ref 30 Hex Soc, 3/4"-16 ORB

1шт.

31

D40355

SHIM,.005" Thk

Spring guide (0.127 mm) .005" Thk

1шт.

32

16917

SHIM

- spring guide, .0105" (0.267 mm) thick

1шт.

33

N7985

GUIDE

- spring

1шт.

34

D54860

RING

BACKUP RING - spring guide

1шт.

35

A51274

O-RING,0.145" ID x 0.285" OD

- spring guide

1шт.

36

D37148

SPRING

- plunger

1шт.

37

D37151

PLUNGER

- relief valve

1шт.

38

D37075

SEAT

- plunger

1шт.

39

D47667

CAP

BODY - relief valve

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- valve body to cylinder

1шт.

41

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- valve body

1шт.

42

D37071

RING

BACKUP RING - valve body seal

1шт.

43

D55017

VALVE

RELIEF VALVE - hex head, for service order Ref. 28 above, Includes: Ref. 44 - 47

2шт.

44

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - relief valve

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

46

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- inner

1шт.

47

D37071

RING

BACKUP RING - inner O-ring

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- D39140 or D94547 hose

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
