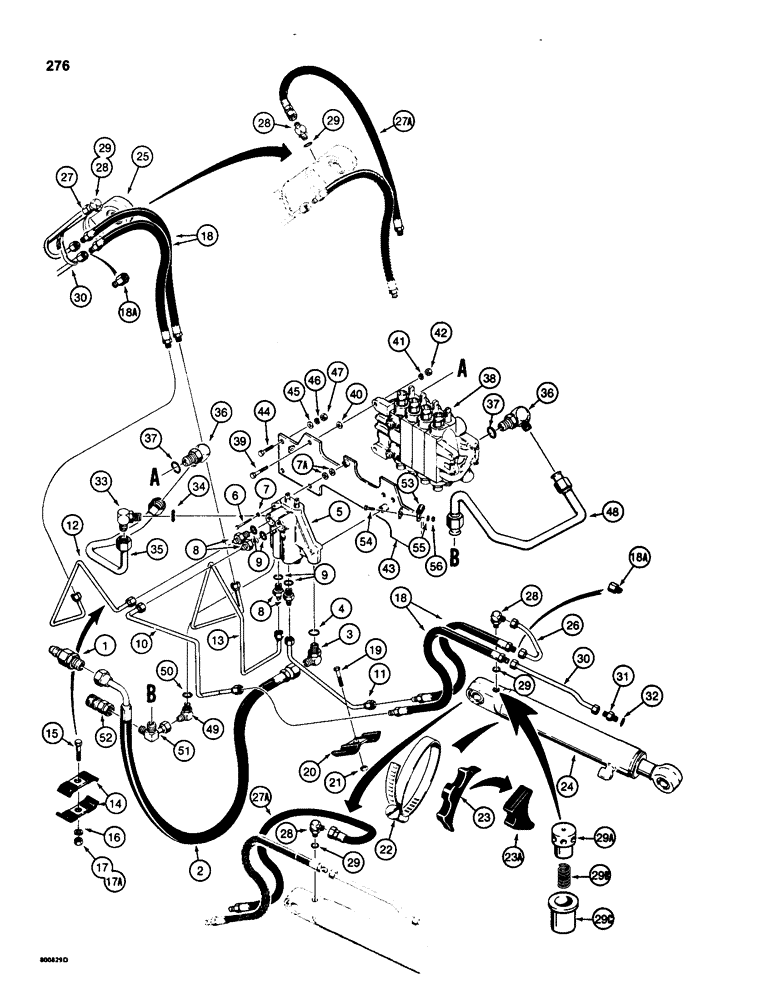

Запчасти Case 580SD (276) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D90260

FITTING

QUICK DISCONNECT - coupling, hydraulic, male, parts list Figure 386

1шт.

2

D89645

HOSE,19.05mm ID x 1000mm L, SAE 100R12

- 39-3/8" (1000 mm) long, to stabilizer valve

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 4 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

5

REF

INSTRUCTION

CONTROL VALVE - stabilizer, for correct assembly and components, see Figure 338

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7a

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, See below, Includes Ref. 9

4шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, see below, Incl. Ref 9 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5354 or 218-5060 adapters

1шт.

10

D94451

TUBE

- right-hand, top port of control valve, see below

1шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

10

D121656

TUBE

- right-hand, top port of control valve, see below

1шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

11

D94453

TUBE

- right-hand, bottom port of control valve, see below

1шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

11

D124889

TUBE

- right-hand, bottom port of control valve, see below

1шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

12

D94447

TUBE

- left-hand, top port of control valve, see below

1шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

12

D121652

TUBE

- left-hand, top port of control valve, see below

1шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

13

D94449

TUBE

- left-hand, bottom port of control valve, see below

1шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

13

D121654

TUBE

- left-hand, bottom port of control valve, see below

1шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

14

A12032

CLAMP

- left-hand tubes

2шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

17a

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated, replaces Refs. 16 and 17, if used

1шт.

18

D94460

HOSE ASSY.

HOSE - 17-3/4" (450 mm) long, to cylinders, see below

4шт.

These parts using 3/8" tubes are used before backhoe SN 5438493 on all backhoes, except Super D models, and before backhoe SN 5447793 on Super D models.

1шт.

18

D121658

HOSE,19.05mm ID x 450mm L, SAE 100R2

- 17-3/4" (450 mm) long, to cylinders, see below

2-4шт.

These parts using 1/2" tubes are used on backhoe SN 5438493 and after on all backhoes, except Super D models, and on backhoe SN 5447793 and after on Super D models, and may also be used as repair items on earlier machines by using all 1/2" connecting. If repairs have to be made on early machines, tube sizes may have to be checked before ordering parts.

1шт.

18a

D121933

ADAPTER

- used on some machines to adapt D94460 hose to 1/2" tubes

1-4шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

20

D40236

CLAMP

- hose

2шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

22

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube

2шт.

23

R24703

SUPPORT

SPACER - tube, rubber, used with Refs. 18, 26, and 27, if used

2шт.

23a

D38648

BLOCK

SPACER - hose, if used

2шт.

24

REF

INSTRUCTION

CYLINDER - stabilizer, right-hand, parts list Figure 396

1шт.

25

REF

INSTRUCTION

CYLINDER - stabilizer, left-hand, parts list Figure 396

1шт.

26

D94488

HYD TUBE,0.5" OD

TUBE - to closed end of right-hand stabilizer cylinder, if used

1шт.

27

D94490

HYD TUBE,0.5" OD

TUBE - to closed end of left-hand stabilizer cylinder, if used

1шт.

27a

R34485

HOSE

- 23" (584 mm) long, cylinder closed end ports, if used

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29a

D123087

RESTRICTOR

- stabilizer, if used

2шт.

29b

D123240

SPRING

- restrictor, if used

2шт.

29c

D123099

SLEEVE

- restrictor, if used

2шт.

30

D94486

HYD TUBE,12.7 mm OD x 420, 27 mm L

TUBE - to rod end of stabilizer cylinder

2шт.

31

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 32 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

33

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, Includes: Ref. 34 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

35

D93279

HYD TUBE,25.4 mm OD x 260, 211 mm L

TUBE - power beyond port of stabilizer control valve to backhoe control valve

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, Incl. Ref. 37 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

38

REF

INSTRUCTION

CONTROL VALVE - backhoe, for correct assembly and components, see parts list Figure 340 or 342

1шт.

39

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

40

95-8

WASHER,1/2"

flat 1/2"

3шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

43

D94282

PLATE

- control valve mounting

1шт.

44

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

45

95-8

WASHER,1/2"

flat 1/2"

4шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

47

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

48

D93281

HYD TUBE,1" OD

TUBE - backhoe control valve return, models without extendable dipper

1шт.

48

D93283

HYD TUBE,25.4 mm OD x 316, 268 mm L

TUBE - backhoe control valve return, models with extendable dipper

1шт.

49

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

51

D88966

HYD TUBE,19.05 mm OD x 56 mm L

TUBE - three-way

1шт.

52

D52800

COUPLING, QUICK, FEM

COUPLING - hydraulic, female, parts list Figure 386

1шт.

53

T50103

CLAMP

- P-type, tube, mounting plate to swing tubes

2шт.

54

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

55

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

56

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
