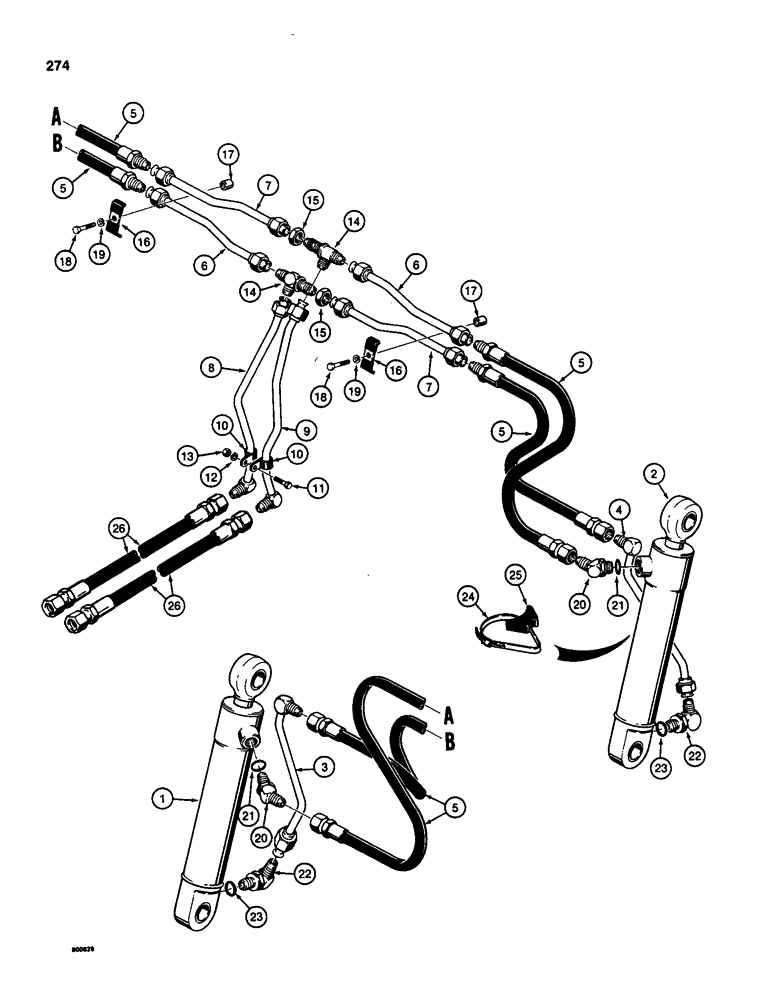

Запчасти Case 580SD (274) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G101191

CYLINDER ASSY.

CYLINDER - clam, left-hand, parts list Figure 394

1шт.

2

G101190

CYLINDER ASSY.

CYLINDER - clam, right-hand, parts list Figure 394

1шт.

2

87454017R

REMAN-HYD CYLINDER

580D CASE CONSTRUCTION KING LOADER BACKHOE, 580SD CASE SUPER-D CONSTRUCTION KING LOADER BACKHOE, Both CYLINDER, clam, right-hand, Reman for New PN G101190

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

D51619

TUBE

- left-hand cylinder

1шт.

4

D51621

TUBE

- right-hand cylinder

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 26" (660 mm) long, right-hand and left-hand cylinders

4шт.

6

D67081

TUBE

- horizontal, right-hand upper and left-hand lower, short

2шт.

7

D67083

TUBE

- horizontal, right-hand lower and left-hand upper, long

2шт.

8

D51615

TUBE

- vertical, left-hand

1шт.

9

D51617

TUBE

- vertical, right-hand

1шт.

10

38188

CLAMP

- vertical tubes

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead, connecting horizontal and vertical tubing

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

- horizontal tubing

2шт.

17

D33552

BUSHING

SPACER - tube clamps

2шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, clam cylinders, rod end, Incl. Ref 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, clam cylinders, closed end, Incl. Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - clam cylinder tubing, adjustable

2шт.

25

D38648

BLOCK

INSULATOR - rubber, clamp

2шт.

26

D51691

HOSE

- 40" (1016 mm) long, from loader lift frame

2шт.
