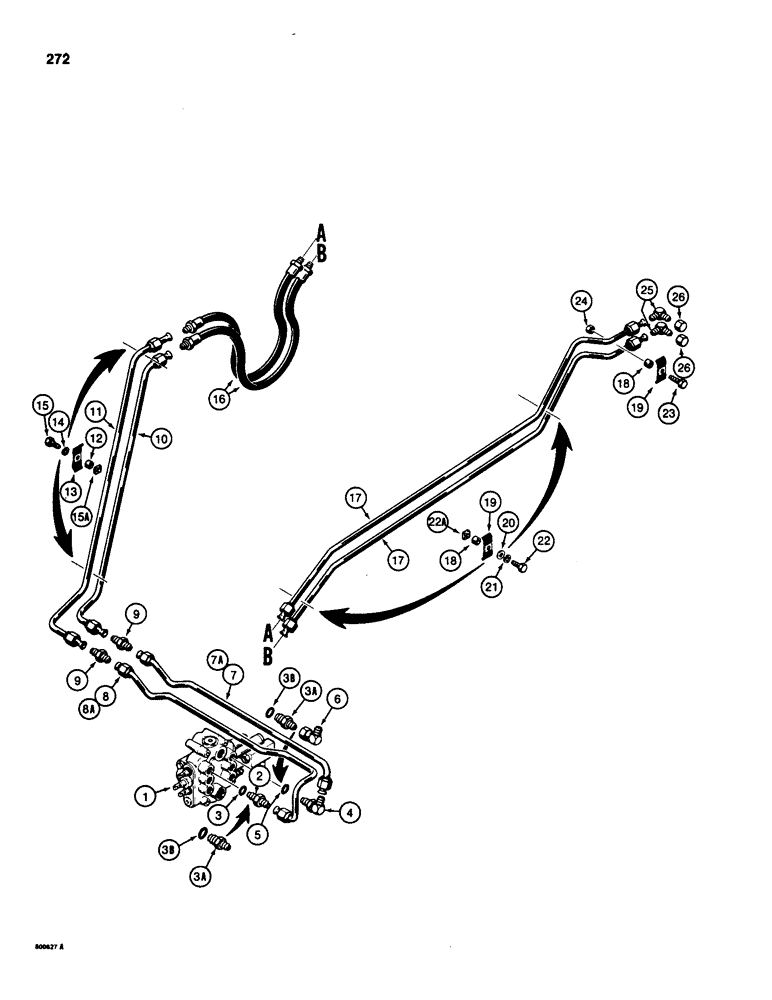

Запчасти Case 580SD (272) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see parts list Figure 312 or 328

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, used with Parker control valve only, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

3a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, used with Hydreco control valve only, Includes: Ref. 3B

2шт.

3b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with Parker control valve only, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Used with Hydreco control valve only 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

7

D90107

HYD TUBE,15.88 mm OD x 783, 78 mm L

TUBE - to rod end of clam cylinder, used with Parker control valve only

1шт.

7a

D92209

TUBE - to rod end of clam cylinder, used with Hydreco control valve only

1шт.

8

D90105

HYD TUBE,0.625" OD

TUBE - to closed end of clam cylinder, used with Parker control valve only

1шт.

8a

D92207

TUBE - to closed end of clam cylinder, used with Hydreco control valve only

1шт.

9

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, tubes

2шт.

10

D90111

HYD TUBE,15.88 mm OD x 308, 807 mm L

TUBE - to rod end of clam cylinder

1шт.

11

D90109

HYD TUBE,15.88 mm OD x 327, 853 mm L

TUBE - to closed end of clam cylinder

1шт.

12

D76209

SPACER

- tube clamp

2шт.

13

D40236

CLAMP

- metal, tube, replaces plastic tube clamps used on some models

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, mounts in welded cage D88417 on left-hand reservoir

2шт.

15b

D88417

CAGE ASSY.

CAGE - nut, welded to left-hand lift frame and left-hand reservoir, used with 25-226 square nut, not shown

4шт.

16

D86852

HOSE,12.7mm ID x 750mm L, SAE 100R2

- 29-1/2" (750 mm) long, chassis to loader lift frame

2шт.

17

D90113

HYD TUBE,12.7 mm OD x 330, 1449 mm L

TUBE - on loader lift frame

2шт.

18

D76208

SPACER

- tube clamp

3шт.

19

R17319

CLAMP

- metal, tube, replaces plastic tube clamp used on some models

3шт.

20

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

22a

25-225

SQUARE NUT,Sq, 5/16"-24

- square, 5/16" - 18 NC, mounts in welded cage D88417 on left-hand lift frame

2шт.

23

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

25

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

26

218-755

CAP,37 Degree, 3/4"-16

Used when attachments are removed 37º, 3/4"-16

2шт.
