Запчасти Case 580SD (268) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

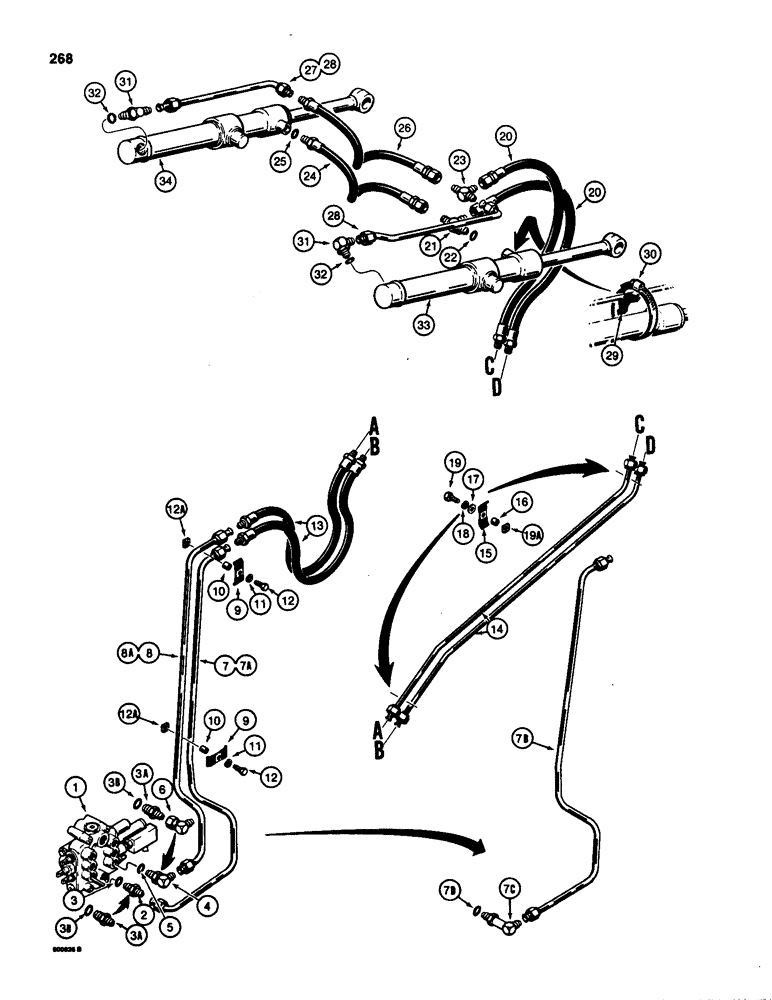

Схема запчастей Case 580SD - (268) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
9
12
4
7d
25
7c
31
33
3
5
16
19
7a
31
20
30
10
34
9
12
24
15
10
3a
27
21
12a
14
20
13
32
29
18
17
3b
3b
28
32
2
22
11
1
7
28
6
19a
23
7a
11
26
8a
12a
8
3a

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see Figure 310, 312, 326 or 328

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, used with Parker control valve only, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

3a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, used with Hydreco control valve only, Includes: Ref. 3B

2шт.

3b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, used with Parker control valve only, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Used with Hydreco control valve only 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

7

D86878

HYD TUBE,15.88 mm OD x 951, 512 mm L

TUBE - to rod end of bucket cylinders, used with Parker control valve only

1шт.

7a

D92199

TUBE

- to rod end of bucket cylinders, used with Hydreco control valve only, no longer available, order D126645 elbow and D126238 tube

1шт.

7b

D126238

TUBE

- to rod end of bucket cylinder, used with Hydreco control valve

1шт.

7c

D126645

FITTING

ELBOW - special, used with Ref. 7B, Includes: Ref. 7D

1шт.

7d

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

8

D86880

HYD TUBE

TUBE - to closed end of bucket cylinders, used with Parker control valve only

1шт.

8a

D92201

TUBE ASSY.

TUBE - to closed end of bucket cylinders, used with Hydreco control valve only

1шт.

9

D40236

CLAMP

- metal, tube, replaces plastic tube clamps used on some models

2шт.

10

D76209

SPACER

- clamp

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 5/16" - 18 NC, if used

2шт.

13

D86852

HOSE,12.7mm ID x 750mm L, SAE 100R2

- 29-1/2" (750 mm) long, chassis to loader lift frame

2шт.

14

D86856

TUBE,292, 1134 mm L

TUBE - to bucket cylinders

2шт.

15

R17319

CLAMP

- metal, tube, replaces plastic tube clamps used on some models

2шт.

16

D76208

SPACER

- clamp

2шт.

17

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

19a

25-225

SQUARE NUT,Sq, 5/16"-24

- square, 3/8" - 16 NC, if used

2шт.

20

D73244

HOSE

- 30-7/16" (773 mm) long, to bucket cylinders

2шт.

21

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, hoses to rod end of cylinders, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5241 tee

1шт.

23

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

- male

1шт.

24

D67731

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

- 32" (813 mm) long, to rod end of left-hand bucket cylinder, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- D67731 hose

1шт.

26

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

- 29" (737 mm) long, to closed end of left hand bucket cylinder

1шт.

27

D38637

TUBE

- to closed end of left-hand bucket cylinder, straight at cylinder port

2шт.

28

D73800

HYD TUBE,0.5" OD x 22.5, 2" L

TUBE - to closed end of bucket cylinders offset at cylinder port

1-2шт.

29

D38648

BLOCK

SPACER - rubber

2шт.

30

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

2шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

G101186

CYLINDER

- bucket, right-hand, parts list Figure 392

1шт.

34

G101187

CYLINDER

- bucket, left-hand, parts list Figure 392

1шт.

Выбрано товаров: 43
