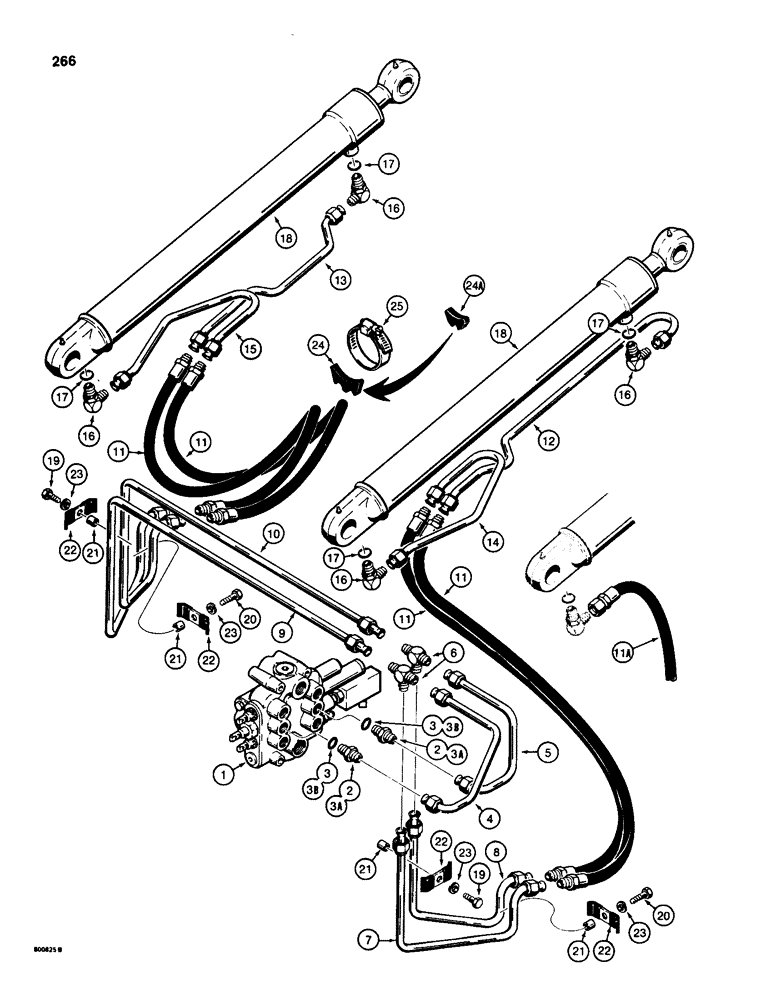

Запчасти Case 580SD (266) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see Figure 310, 312, 326 or 328

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, used with Parker control valve only, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

3a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, used with Hydreco control valve only, Includes: Ref. 3B

2шт.

3b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

D87769

TUBE

- to rod end of lift cylinders

1шт.

5

D87771

HYD TUBE,15.88 mm OD x 154, 192 mm L

TUBE - to closed end of lift cylinders

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

- right-hand to left-hand cylinders

2шт.

7

D92937

HYD TUBE,15.88 mm OD x 304, 291 mm L

TUBE - to rod end of right-hand lift cylinder

1шт.

8

D92935

HYD TUBE,15.88 mm OD x 303, 253 mm L

TUBE - to closed end of right-hand lift cylinder

1шт.

9

D92933

HYD TUBE,15.88 mm OD x 867, 354 mm L

TUBE - to rod end of left-hand lift cylinder

1шт.

10

D92931

HYD TUBE,15.88 mm OD x 829, 363 mm L

TUBE - to closed end of left-hand lift cylinder

1шт.

11

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

- 22-3/4" (572 mm) long, to lift cylinders

2-4шт.

11a

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 26" (660 mm) long, to closed end of lift cylinders, if used

2шт.

12

D93902

HYD TUBE,0.625" OD

TUBE - to rod end of right-hand lift cylinder

1шт.

13

D93906

HYD TUBE,15.9 mm OD x 555, 59 mm L

TUBE - to rod end of left-hand lift cylinder

1шт.

14

D93900

HYD TUBE,0.625" OD

TUBE - to closed end of right-hand lift cylinder, if used

1шт.

15

D93904

HYD TUBE,0.625" OD

TUBE - to closed end of left-hand lift cyilnder, if used

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Incl. Ref. 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

REF

INSTRUCTION

CYLINDER - lift, for correct assembly and components, see parts list Figure 391

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

D76209

SPACER

- clamp

4шт.

22

D40236

CLAMP

- metal, tube

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

R24703

SUPPORT

SPACER - rubber, dual tube, if used

2шт.

24a

D38648

BLOCK

SPACER - rubber, single tube, if used

2шт.

25

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.
