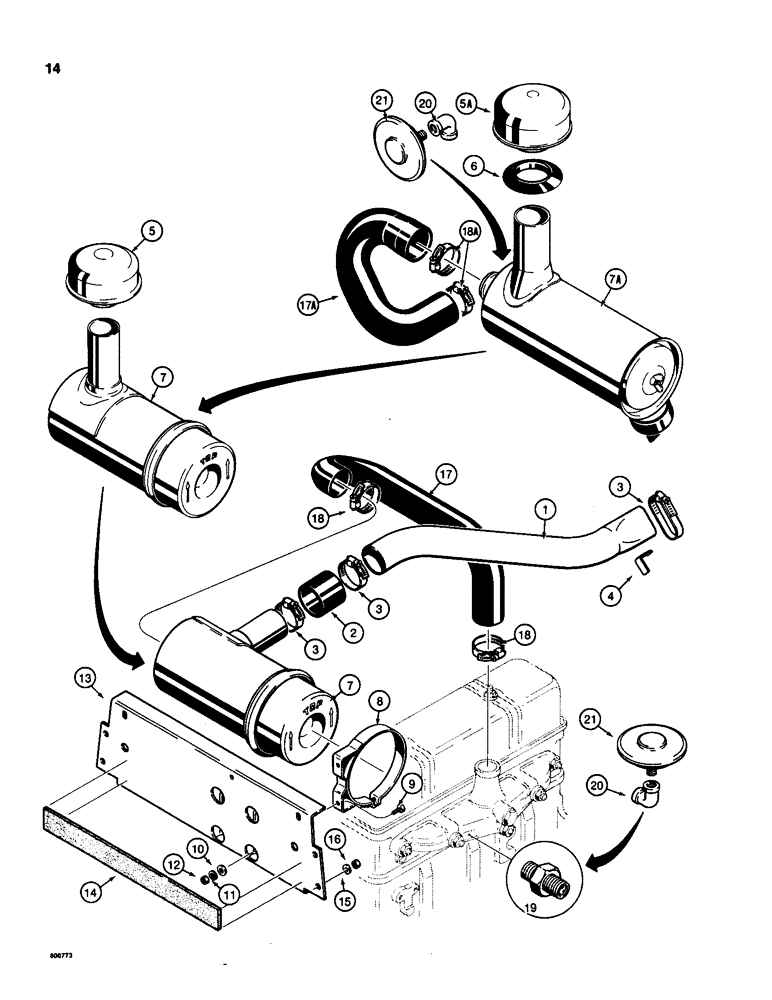

Запчасти Case 580SD (014) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

D91427

TUBE

- horizontal, air cleaner intake, noise reduction, if used, see Ref. 5

1шт.

2

NLS

NO LONGER SERVICED

HOSE - 2-1/2" (64 mm) ID x 2-1/2" (64 mm) long, horizontal tube to air cleaner, if used

1шт.

3

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - horizontal tube and hose, if used

3шт.

4

D91426

SUPPORT - horizontal tube, welds to radiator shroud, if used

1шт.

5

A61276

AIR CLEANER

CAP - vertical air cleaner intake, without turbocharger, if used, see Ref. 1

1шт.

5a

A61277

CAP

- vertical air cleaner intake, with turbocharger, if used, see Ref. 1

1шт.

6

D93451

GROMMET

- air cleaner intake tube on models with or without turbocharger

1шт.

7

A139086

AIR CLEANER

- engines without turbocharger, parts list Figure 016

1шт.

7a

D83962

AIR CLEANER

- engines with turbocharger, parts list Figure 018

1шт.

8

L11247

BAND

- air cleaner mounting, includes hardware

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

195-525

WASHER,3/8", SAE

- flat , 3/8", plated

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

D83431

BRACKET - air cleaner mounting

1шт.

14

D83436

PAD

STRIP - sponge rubber

1шт.

15

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

16

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

17

D83487

INTAKE AIR HOSE,57.15 mm ID x 285.00 mm, SAE J20, SAE 20R4 CLASS D2

- Air Cleaner to Manifold, If used 57.15 mm ID x 285.00 mm, SAE J20, SAE 20R4 CLASS D2

1шт.

17a

D91770

INTAKE AIR HOSE,60.00 mm ID, 63.50 mm ID x 184.00 mm, SAE J200

- Air Cleaner to Turbocharger, If used 60.00 mm ID, 63.50 mm ID x 184.00 mm, SAE J200

1шт.

18

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - D83487 hose only

2шт.

18a

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - D91770 hose only

2шт.

19

D36264

FITTING

AND FILTER ASSEMBLY - air restriction indicator, used at manifold on models without turbocharger

1шт.

20

221-374

ELBOW,90 Degree, 1/8" NPT

- 90 degree, 1/8" NPT

1шт.

21

L103131

INDICATOR

SENDER - air filter restriction indicator, see Figure 102, Ref. 24, for attaching sender wire on models with turbocharger

1шт.
