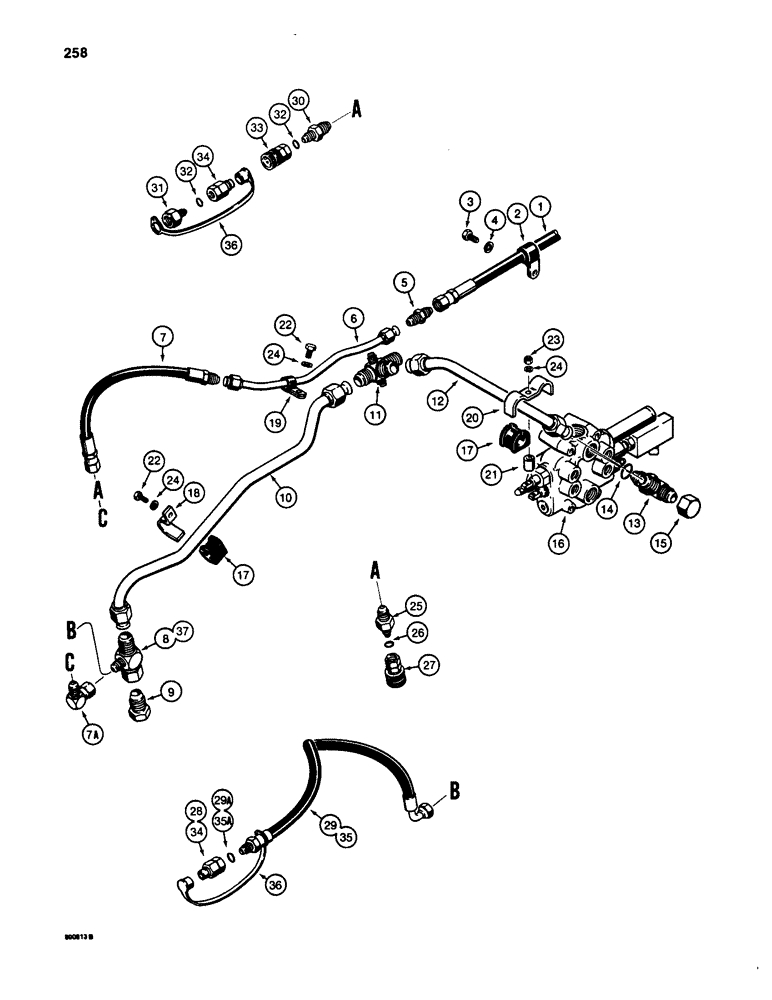

Запчасти Case 580SD (258) - EQUIPMENT HYDRAULIC SYSTEM, REAR EQUIPMENT LINES WITHOUT BACKHOE (08) - HYDRAULICS

1

D89556

HOSE

- 29-1/2" (750 mm) long, from steering control valve, see Figure 142

1шт.

2

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- D89556, Serial Range: hose-frame

1шт.

3

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, hose to tube

1шт.

6

D120001

TUBE ASSY.

TUBE - to rear connection

1шт.

7

37318

HOSE ASSY.

HOSE - 16-1/2" (419 mm) long, rear

1шт.

7a

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

8

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- swivel, rear connection

1шт.

9

218-779

PLUG,1 5/16"-12, 37 Degree

Hex head, tee 1 5/16"-12, 37º

1шт.

10

D120005

TUBE ASSY.

TUBE - return

1шт.

11

D90231

FITTING

MANIFOLD - male fitting, see Figures 142 and 264 for connecting parts

1шт.

12

D86783

TUBE

- to loader control valve

1шт.

13

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

- adjustable, control valve port, Includes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

15

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16" - 12, tee

1шт.

16

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see Figure 310, 312, 126 or 328

1шт.

17

D67297

BLOCK

INSULATOR - tube clamp

3шт.

18

D68846

CLAMP

- tube

1шт.

19

49771

CLAMP

- P-type

1шт.

20

D83594

CLAMP

- double

1шт.

21

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- D83594 clamp

1шт.

22

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

REF

INSTRUCTION

SPECIAL PARTS TO ADAPT THREE-POINT HITCH TO LOADER MODELS

1шт.

25

218-430

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, female coupling, special parts to adapt three-point hitch to loader models

1шт.

27

D90502

COUPLING

- hydraulic, female, parts list Figure 388, special parts to adapt three-point hitch to loader models

1шт.

28

D90501

COUPLING

- hydraulic, male, parts list Figure 388, special parts to adapt three-point hitch to loader models

1шт.

29

D91128

TUBE ASSY.

HOSE - 15-3/4" (400 mm) long, return, special parts to adapt three-point hitch to loader models

1шт.

REF

INSTRUCTION

SPECIAL PARTS TO ADAPT THREE-POINT HITCH TO LOADER BACKHOE MODELS

1шт.

REF

INSTRUCTION

Used on models with three-point hitch control valves without flow control regulator knob, see pages 366 and 368 for valve identification. Also see special parts to adapt three-point hitch on page 262.

1шт.

30

218-430

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, female coupling, *special parts to adapt three-point hitch to loader backhoe models

1шт.

31

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

- male coupling, *special parts to adapt three-point hitch to loader backhoe models

1шт.

33

D90502

COUPLING

- hydraulic, female, parts list Figure 388, *special parts to adapt three-point hitch to loader backhoe models

1шт.

34

D90501

COUPLING

- hydraulic, male, parts list Figure 388, *special parts to adapt three-point hitch to loader backhoe models

1шт.

35

D91128

TUBE ASSY.

HOSE -15-3/4" (400 mm) long, return, *special parts to adapt three-point hitch to loader backhoe models, Includes: Ref. 35A

1шт.

36

D91148

CAP

- dust, *special parts to adapt three-point hitch to loader backhoe models

2шт.

37

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- swivel, rear connection, *special parts to adapt three-point hitch to loader backhoe models

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- coupling seal, special parts to adapt three-point hitch to loader models

1шт.

29a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, special parts to adapt three-point hitch to loader odels

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- coupling seal, *special parts to adapt three-point hitch to loader bachhoe models

2шт.

35a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, *special parts to adapt three-point hitch to loader backhoe models

1шт.
