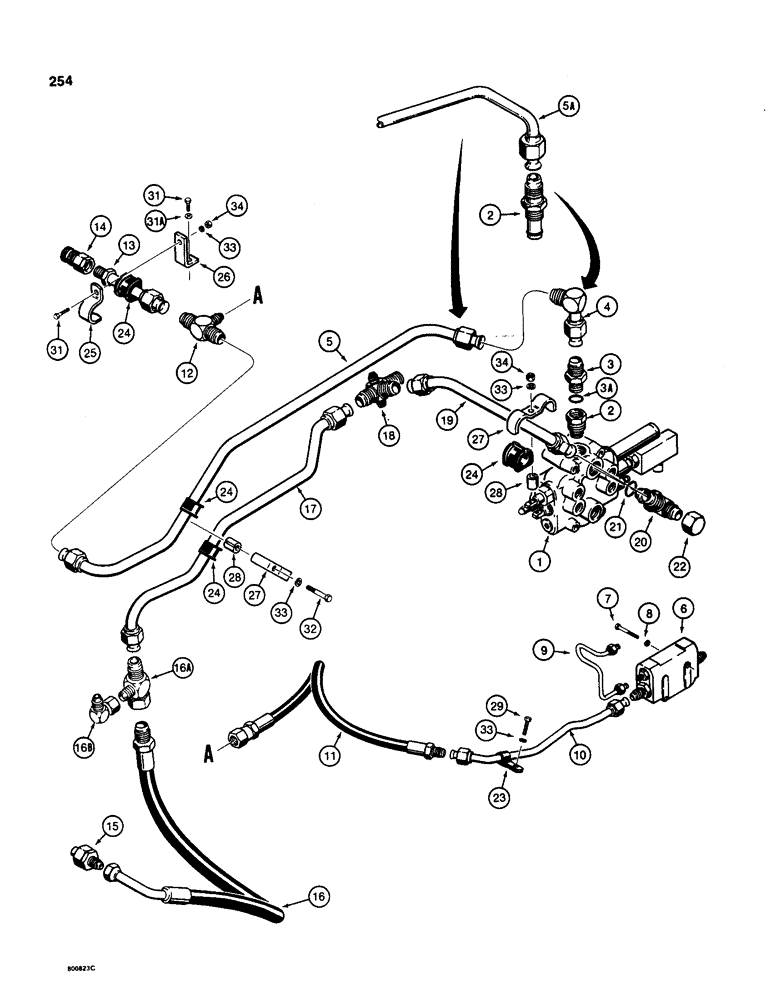

Запчасти Case 580SD (254) - EQUIPMENT HYDRAULIC SYSTEM, REAR EQUIPMENT LINES FOR BACKHOE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, Parker, for correct assembly and components, see Figure 310, 312, 126, or 328

1шт.

2

REF

INSTRUCTION

SLEEVE - power beyond, for correct assembly and components, see Figure 310, 312, 326 or 328

1шт.

3

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, used with Parker control valves only, Incl. Ref. 3A

1шт.

3a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

D93830

TUBE

ELBOW - 90 degree, used with some two spool Parker control valves

1шт.

4

D93894

TUBE ASSY.

ELBOW - 90 degree, used with some two spool Hydreco control valves

1шт.

4

D93831

FITTING

ELBOW - 90 degree, used with three spool Parker control valves

1шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, swivel, used with three spool Hydreco control valves

1шт.

5

D120003

TUBE ASSY.

TUBE - to backhoe, used with 90 degree elbow at valve, see item 5A

1шт.

5a

D92651

HYD TUBE,25.4 mm OD x 906, 536 mm L

TUBE - to backhoe, connects directly to power beyond sleeve on some models, see item 5

1шт.

6

D89394

VALVE

UNLOADING VALVE - parts list Figure 364

1шт.

D89394 unloading valve - This is not used without backhoe.

1шт.

7

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

D90287

HYD TUBE,0.25" OD

TUBE - unloading valve to relief valve

1шт.

10

D120001

TUBE ASSY.

TUBE - unloading, Serial Range: valve-backhoe

1шт.

11

37318

HOSE ASSY.

HOSE - 1/2" (13 mm) ID x 16-1/2" (419 mm) long, to backhoe, for three-point hitch connecting parts, see Figures 258-262

1шт.

12

218-588

TEE,37 Degree, 1 5/16"-12 x 7/8"-14, Br

- male, backhoe pressure line, for three-point hitch connecting parts, see Figures 258-262

1шт.

13

D90402

HYD TUBE,25.4 mm OD x 150 mm L

TUBE - to hydraulic coupling

1шт.

14

D52800

COUPLING, QUICK, FEM

COUPLING - hydraulic, female, parts list Figure 386

1шт.

15

D90260

FITTING

COUPLING - hydraulic, male, parts list Figure 386

1шт.

16

D89646

TUBE,19.05mm ID x 850mm L, SAE 100R2

HOSE - special, from coupling

1шт.

16a

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- swivel, return, used on models with three-point hitch, see Figures 258-262

1шт.

16b

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Return, Used on models with three-point hitch, See Figures 258-262 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

17

D120005

TUBE ASSY.

TUBE - backhoe return

1шт.

18

D90231

FITTING

MANIFOLD - male fitting

1шт.

19

D86783

TUBE

- to two spool control valve

1шт.

19

D90103

HYD TUBE,25.4 mm OD x 101, 324 mm L

TUBE - to three spool control valve

1шт.

20

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

- adjustable, Parker control valves, includes O-ring, Includes: Ref. 21

1шт.

20

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, Hydreco control valves, includes O-ring, Includes: Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5298 tee

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5245 tee

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

218-5298 tee 37º, 1 1/16"-12

1шт.

22

218-758

CAP,37 Degree, 1 5/16"-12

- 218-5245 tee

1шт.

23

49771

CLAMP

- P-type, unloading valve tube

1шт.

24

D67297

BLOCK

INSULATOR - tube clamps

5шт.

25

D68846

CLAMP

- tube

1шт.

26

D65647

BRACKET

- clamp

1шт.

27

D83594

CLAMP

- double tube

2шт.

28

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- double tube clamps

2шт.

29

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

30

RESERVED

1шт.

31

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex head, 3/8" - 16 NC x 1", grade 8

2шт.

31a

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, 3/8", special hardened

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

REF

INSTRUCTION

For connecting steering hydraulic parts see page 142. For special parts to adapt backhoe lines for three-point hitch see pages 258 - 262.

1шт.
