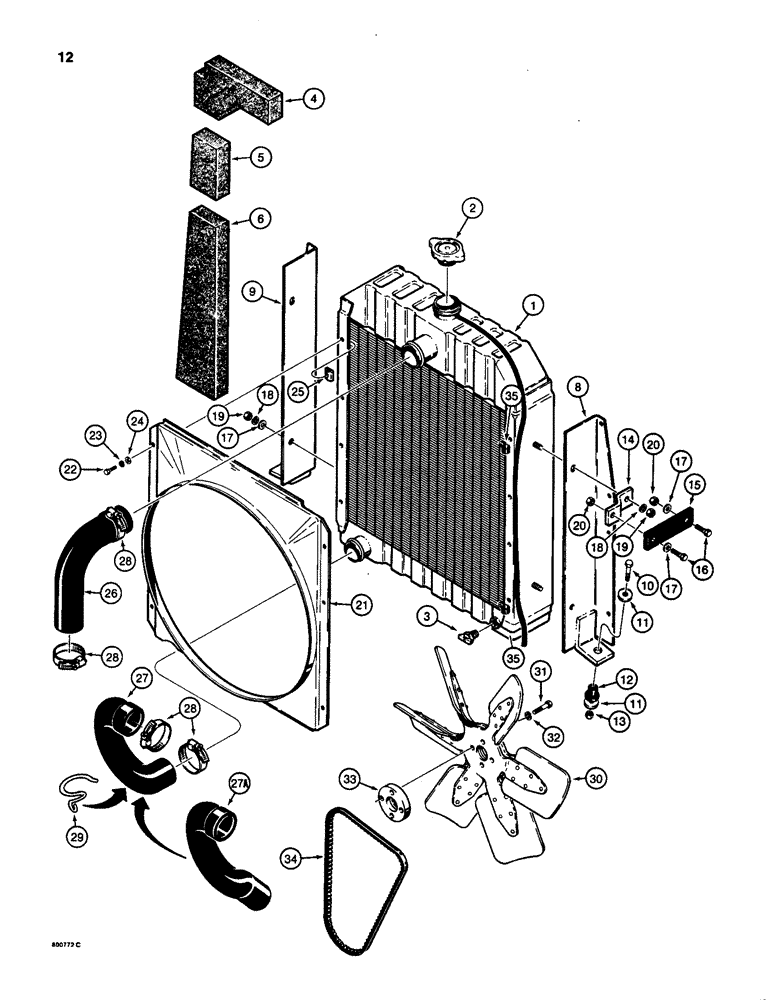

Запчасти Case 580SD (012) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

1

D81055

RADIATOR

- engine cooling

1шт.

2

F23120

CAP

- radiator

1шт.

3

217-103

COCK, DRAIN

VALVE - radiator drain

1шт.

5

REF

INSTRUCTION

BAFFLE - radiator, upper, cut from D92228, base size is 3" (76 mm) x 5" (127 mm)

2шт.

6

REF

INSTRUCTION

BAFFLE - radiator, lower, cut from D92228, base size is 4-3/8" (110 mm) x 16-3/4" (425 mm)

2шт.

7

RESERVED

1шт.

8

D81064

SUPPORT

- radiator, right-hand

1шт.

9

D81065

SUPPORT

- radiator, left-hand

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special, hardened, left-hand support uses one additional washer

3-5шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration, rubber

2шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

14

D88257

BRACKET

- radiator mounting, side

2шт.

15

D73500

STRAP

- radiator mounting, side

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

21

D81056

SHROUD ASSY.

SHROUD - radiator, plastic

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

24

195-102

WASHER,1/4"

- flat, , plated 1/4"

6шт.

25

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- J-type, 1/4" - 20 NC

6шт.

26

D81057

RADIATOR HOSE,50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

Upper 50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

1шт.

27

D81058

HOSE

- radiator, lower, used with Ref. 29

1шт.

27a

D122895

RADIATOR HOSE,44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

- Lower, Does not use Ref. 29 44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

D82192

SUPPORT

- lower radiator hose, used with Ref. 27 only

1шт.

30

D93696

FAN

- suction

1шт.

NOTE: Service blade 84262085 has 10 blades

1шт.

31

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Used with fans with a double center plate Hex, 5/16"-18 x 1 1/2", G5

4шт.

31

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Used with fans with a single center plate Hex, 5/16"-18 x 1 1/4", G5

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

D93496

SPACER

- fan, not used with air conditioner, interchangeable with D66937 spacer

1шт.

34

REF

INSTRUCTION

FAN BELT - see Figures 99 and 101 for correct fan belt

1-2шт.

35

NLS

NO LONGER SERVICED

- radiator overflow hose, if used

2шт.

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surface, not shown

1шт.

D92228

BAFFLE

- bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm), use to cut Refs. 4-6, not shown

1шт.
