Запчасти Case 580SD (234) - TRANSAXLE MAINSHAFT ADJUSTING COVER, FOUR WHEEL DRIVE (06) - POWER TRAIN

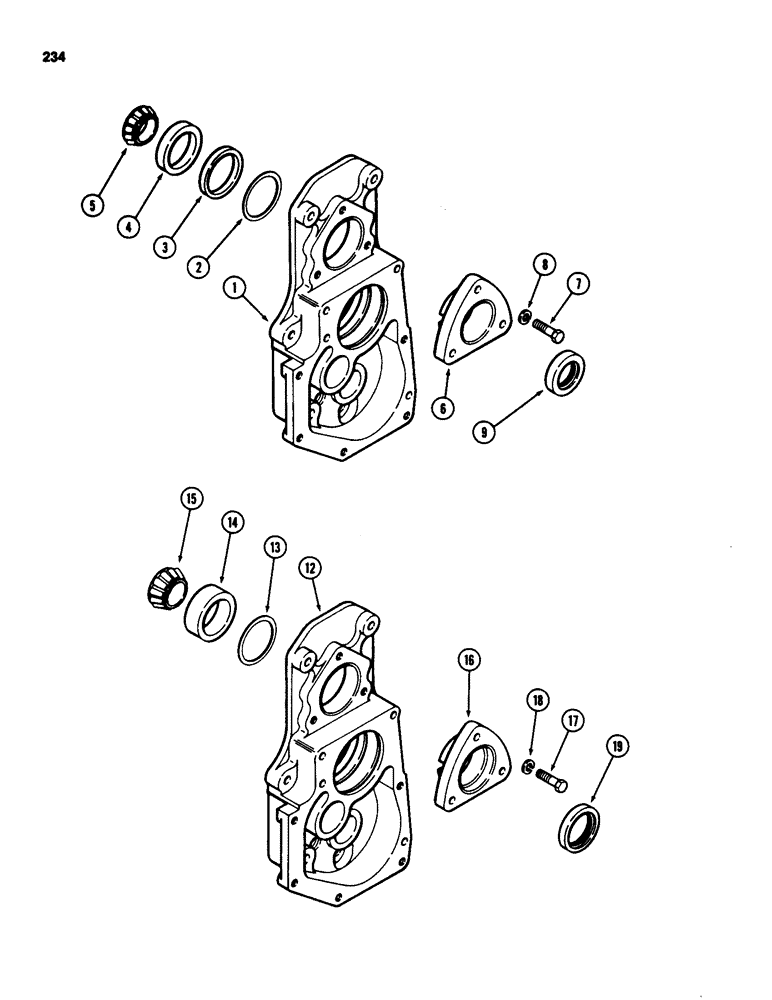

Схема запчастей Case 580SD - (234) - TRANSAXLE MAINSHAFT ADJUSTING COVER, FOUR WHEEL DRIVE (06) - POWER TRAIN
6
9
14
3
16
17
18
5
19
12
2
15
1
8
4
13
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITHOUT TURBOCHARGER

1шт.

1

REF

INSTRUCTION

HOUSING - transfer gearbox (See Figure 232)

1шт.

2

G10341

SHIM,.005" Thk

(0.13 mm) Mainshaft front bearing .005" Thk

1шт.

2

G10340

SHIM,.007" Thk

(0.18 mm), Mainshaft front bearing .007" Thk

1шт.

2

A51527

SHIM,.035" Thk

Mainshaft front bearing (0.89 mm) .035" Thk

1шт.

3

A39184

COLLAR

- adjusting cover

1шт.

4

G10425

CUP

- mainshaft bearing, front

1шт.

5

G10424

CONE

- mainshaft bearing, front

1шт.

6

A156255

COVER

- mainshaft bearing adjusting

1шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

G10422

OIL SEAL

- mainshaft (Order A155950)

1шт.

REF

INSTRUCTION

MODELS WITH TURBOCHARGER

1шт.

12

REF

INSTRUCTION

HOUSING - transfer gearbox (See Figure 232), with turbocharger

1шт.

13

G10341

SHIM,.005" Thk

(0.13 mm) Mainshaft front bearing, with turbocharger .005" Thk

1шт.

13

G10340

SHIM,.007" Thk

(0.18 mm), Mainshaft front bearing, with turbocharger .007" Thk

1шт.

13

A51527

SHIM,.035" Thk

Mainshaft front bearing (0.89 mm), with turbocharger .035" Thk

1шт.

14

H753574

BEARING CUP

CUP - mainshaft, front, with turbocharger

1шт.

15

H753566

ROLLER BEARING

CONE - mainshaft bearing, front, with turbocharger

1шт.

16

A156606

BEARING COVER,2.624" ID x 0.69"

COVER - mainshaft bearing adjusting, with turbocharger

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

with turbocharger Hex, 3/8"-16 x 1 1/2", G5

3шт.

18

92-6

LOCK WASHER,3/8"

with turbocharger 3/8"

3шт.

19

A154253

OIL SEAL

- mainshaft, with turbocharger

1шт.

Выбрано товаров: 23
