Запчасти Case 580SD (230) - TRANSAXLE REAR AXLE, WITH TURBOCHARGER (06) - POWER TRAIN

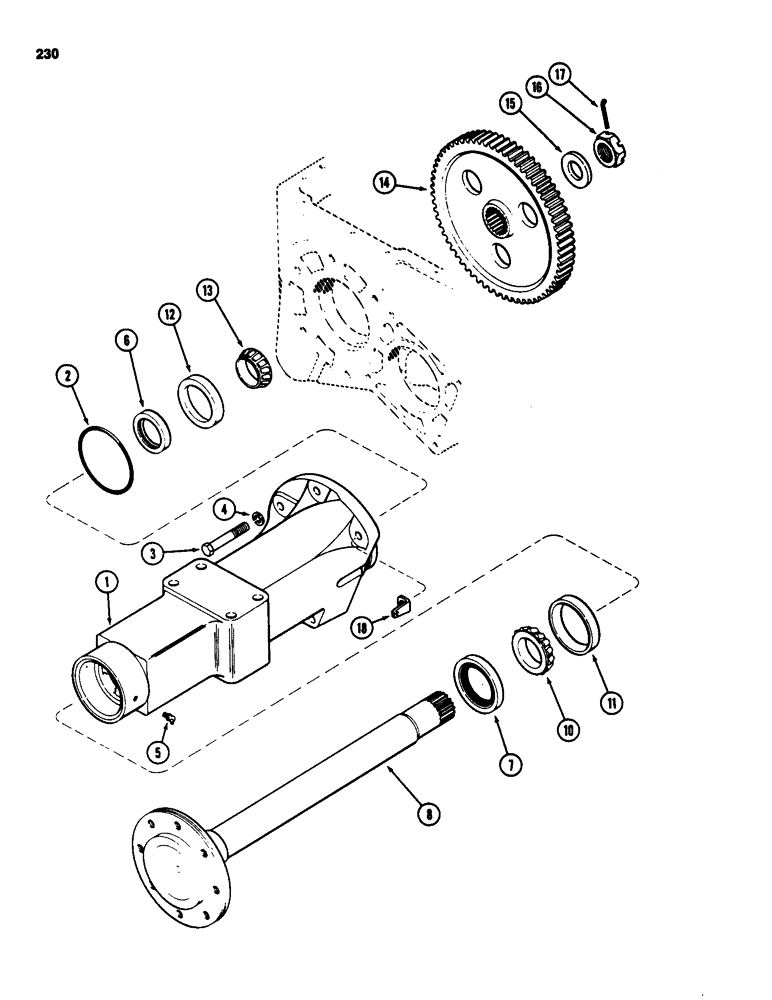

Схема запчастей Case 580SD - (230) - TRANSAXLE REAR AXLE, WITH TURBOCHARGER (06) - POWER TRAIN
18
1
13
16
8
2
3
4
11
10
15
17
12
14
5
6
7

Артикул

Название

Примечание

Количество

1

A153737

HOUSING

- axle, RH

1шт.

1

A153738

HOUSING

- axle, LH (RH shown)

1шт.

2

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- axle housing to transmission case, 5-1/4 inch (133 mm)

2шт.

3

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

3

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch (Grade 8)

6шт.

3

26-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch (Grade 8)

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 inch PT

2шт.

6

G13801

OIL SEAL

- oil, inner, 2-1/4 x 3-1/8 x 1/2 inch (57 x 79 x 13 mm)

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, outer, 3x 4-3/8 x 1/2 inch (76 x 111 x 13 mm)

2шт.

8

A138233

SHAFT

- rear axle

2шт.

10

G15207

ROLLER BEARING

CONE - bearing, outer, 2-5/8 inch ID (67 mm)

2шт.

11

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - bearing, outer, 4-11/32 inch OD (110 mm)

2шт.

12

G10415

BEARING CUP

CUP - bearing, inner, 3-15/16 inch OD (101 mm)

2шт.

13

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, inner, 2-1/4 inch ID (57 mm)

2шт.

14

A153739

GEAR

- final drive (64 external and 17 internal teeth)

2шт.

15

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, 1-1/2 x 2-3/4 x 1/4 inch (38 x 70 x 6 mm)

2шт.

16

A30075

WHEEL NUT

- hex, slotted, 1/2 inch NF

1шт.

17

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

18

A155840

BRACKET

- brake return spring (LH & RH)

2шт.

Выбрано товаров: 20
