Запчасти Case 580SD (222) - TRANSAXLE MAINSHAFT, WITH TURBOCHARGER (06) - POWER TRAIN

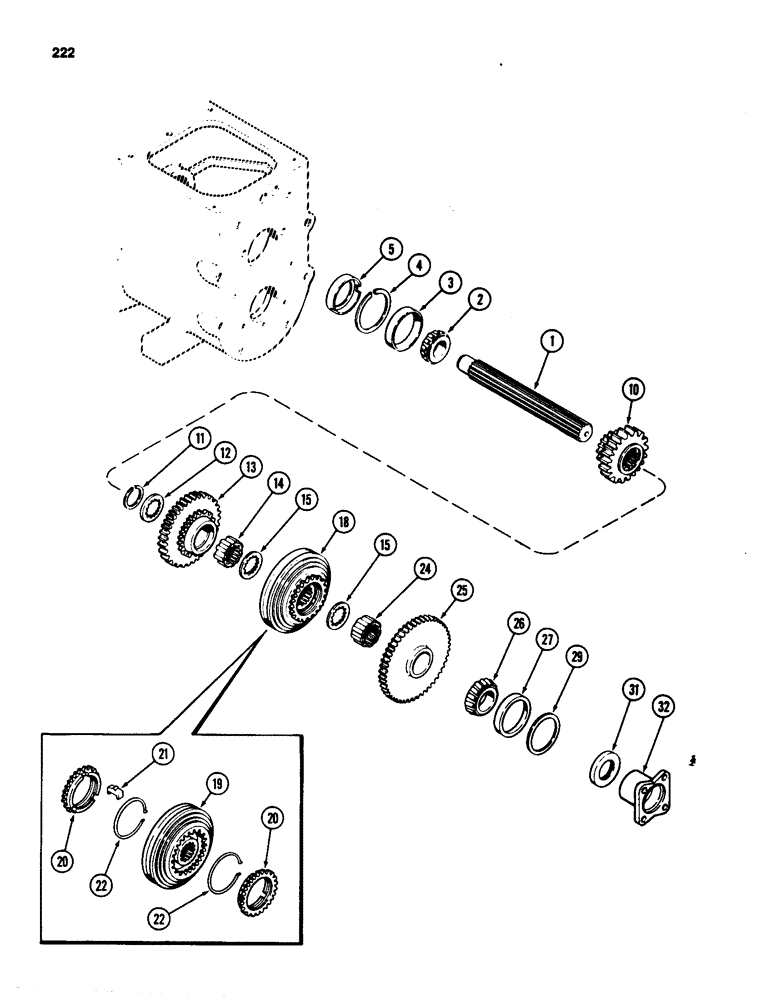

Схема запчастей Case 580SD - (222) - TRANSAXLE MAINSHAFT, WITH TURBOCHARGER (06) - POWER TRAIN
19
26
3
20
4
2
1
5
18
24
11
10
32
31
21
20
14
13
22
15
12
22
15
25
27
29

Артикул

Название

Примечание

Количество

1

A168330

SHAFT

MAINSHAFT - 1-1/4 inch (32 mm) rear bearing area diameter

1шт.

2

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE - bearing, rear, 1-1/4 inch ID (32 mm)

1шт.

3

A29977

BEARING CUP

CUP - bearing, rear, 2-3/4 inch OD (70) mm)

1шт.

4

A29971

RING

- snap, rear bearing retaining

1шт.

5

G10616

CUP

- oiling, mainshaft, rear

1шт.

10

A168172

GEAR

- sliding, first and second (16 and 25 external and 24 internal teeth)

1шт.

11

A26946

RING

- snap, gear retaining

1шт.

12

A140239

COLLAR,24T

COLLAR - thrust, third and fourth gears (24 internal teeth)

1шт.

13

A136597

GEAR

- sliding, third (27 and 35 external teeth)

1шт.

14

A51956

SYNCHRONIZER,24T

- third gear (24 internal teeth)

1шт.

15

A138572

WASHER

- thrust, third and fourth gears, 1/8 inch (3.18 mm) thick with 24 internal teeth

2шт.

18

A138655

GEAR

SYNCHRONIZER ASSEMBLY, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB AND SLEEVE ASSEMBLY

1шт.

20

A45568

SPECIAL RING

RING - blocking

2шт.

21

G46078

PLATE

- shifter

3шт.

22

A40766

SPRING

- lock ring

2шт.

24

G16619

SLEEVE

BUSHING - fourth gear (24 internal teeth)

1шт.

25

A154650

GEAR

- sliding, fourth (27 and 44 external teeth)

1шт.

A154650 gear - Description should read "27 and 67 external teeth".

1шт.

26

H753566

ROLLER BEARING

CONE - bearing, front, 1-9/16 inch ID (40 mm)

1шт.

27

H753574

BEARING CUP

CUP - bearing, front, 2-7/8 inch OD (73 mm)

1шт.

29

A51527

SHIM,.035" Thk

Front bearing (0.89 mm) .035" Thk

1шт.

29

G10341

SHIM,.005" Thk

Front bearing (0.13 mm) .005" Thk

1шт.

29

G10340

SHIM,.007" Thk

(0.18 mm), Front bearing .007" Thk

1шт.

A154253 front oil seal - I.D. is 2".

1шт.

31

A154253

OIL SEAL

- oil, front, 2-5/8 inch (67 mm)

1шт.

32

N6834

YOKE

- power input

1шт.

Выбрано товаров: 27
