Запчасти Case 580SD (218) - TRANSAXLE TRANSMISSION HOUSING, WITH TURBOCHARGER (06) - POWER TRAIN

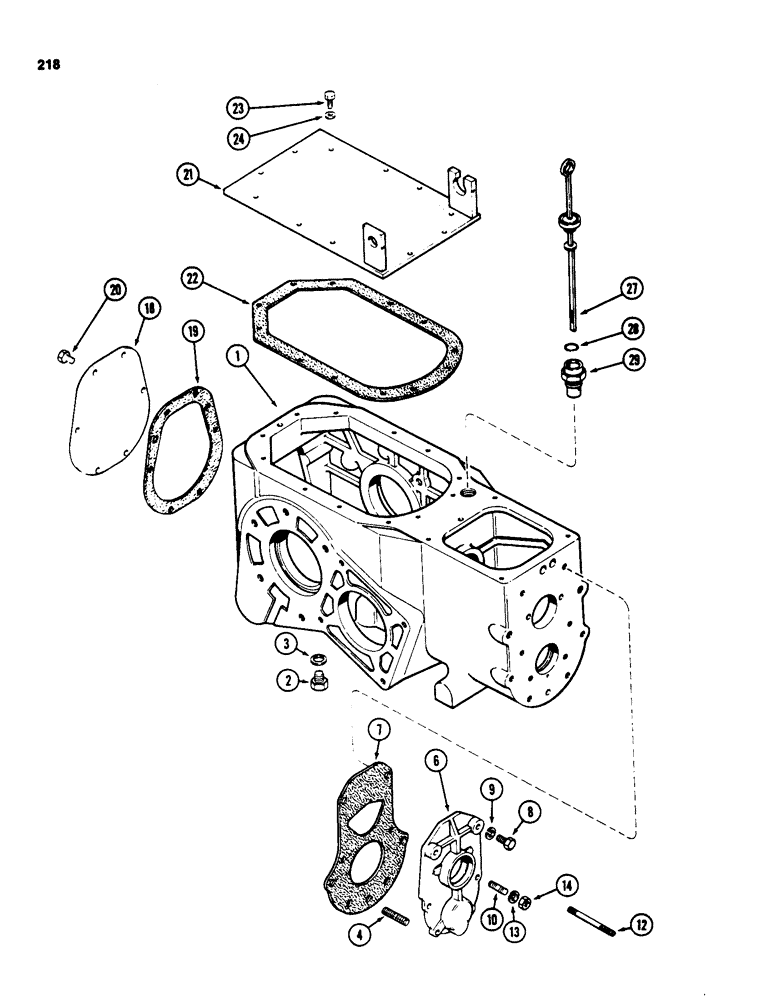

Схема запчастей Case 580SD - (218) - TRANSAXLE TRANSMISSION HOUSING, WITH TURBOCHARGER (06) - POWER TRAIN
27
20
21
13
23
10
28
9
14
18
2
1
29
19
7
12
8
3
4
24
22
6

Артикул

Название

Примечание

Количество

1

A157659

HOUSING

- transmission (Replaces A153741)

1шт.

A157659 transmission housing - This housing had 4 holes to mount the drawbar guide plus an underside hole to insert the drawbar mtg pin (refer Figure 496 Refs. 4 and 8). When this housing was replaced by a heavier, beefed-up housing (part nbr A159416), these holes were eliminated. The underside of the new housing still has the pad to allow drilling of the above holes at a machine shop if a drawbar is required.

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

4

A157625

STUD

- (4 wheel drive only)

2шт.

6

A153742

COVER

- transmission housing, front (2 wheel drive only)

1шт.

7

G46849

GASKET

- front cover to transmission housing (2 wheel drive only)

1шт.

A156248

GASKET

GASKET - front housing (4 wheel drive only)

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Cover, top, 1/2 NC x 1 inch (2 used for 2 wheel drive)

4шт.

9

92-8

LOCK WASHER,1/2"

(2 used for 2 wheel drive) 1/2"

4шт.

10

A29717

STUD

- cover, center, 3/8 NC-NF x 1-1/2 inch (2 wheel drive only)

2шт.

10

G10710

STUD

- cover, bottom, 3/8 NC-NF x 1-3/4 inch (2 wheel drive only)

2шт.

12

A153248

STUD

- (4 wheel drive only)

2шт.

13

92-6

LOCK WASHER,3/8"

(2 used for 4 wheel drive) 3/8"

4шт.

14

129-123

NUT,3/8"-24, G5

(2 used for 4 wheel drive) 3/8"-24, G5

4шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

G10447

GASKET

- rear cover to transmission housing

1шт.

Production housing may not have a cover gasket. If rear housing cover is removed, install a gasket prior to reassembly.

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

21

A154625

COVER

- transmission housing, top, rear

1шт.

22

A153777

GASKET

GASKET - top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, cover, 3/8 NC x 1 inch (Grade 8)

10шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, cover bolt, 3/4 inch (19 mm)

10шт.

27

A154968

DIPSTICK

- oil gauge, Includes: Ref. 28

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- dipstick

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.

Выбрано товаров: 26
