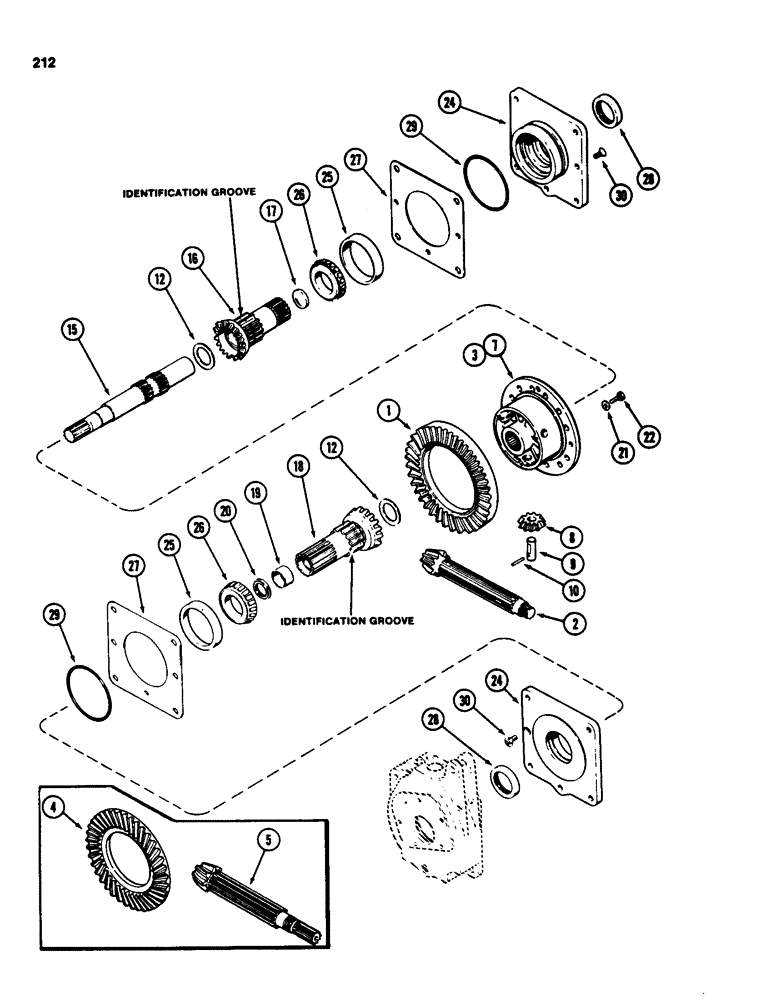

Запчасти Case 580SD (212) - TRANSAXLE DIFFERENTIAL, WITHOUT TURBOCHARGER (06) - POWER TRAIN

A168180

GEAR-SET

PINION AND RING GEAR - 2 wheel drive (Matched set)(Replaces A51990), Includes: Ref. 1 and 2

1шт.

A168180 pinion and ring gear assy - This does not include the center wheel.

1шт.

Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168324)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168160)

1шт.

3

A168547

GEAR-SET

WHEEL ASSEMBLY - differential ring gear (2 wheel drive)

1шт.

A168547 wheel assy - This includes the A168180 pinion and ring gear assy, the A156117 center wheel, qty 12 of 28-614 bolts, qty 12 of A140282 washers, qty 12 of A153272 tapered dowels and qty 4 of A155860 dowel pins. DOWEL DOESNT HAVE MUCH OF A PURPOSE. DEALER DOESNT HAVE EQUIPMENT TO INSTALL. INSTALLATION REQUIRES PEENING TO EXPAND DOWEL TO FIT HOLE IN CENTER WHEEL AND RING GEAR. MOST DEALERS DISCARD THE DOWELS. ALL ALIGNING IS DONE WITH TAPERED BUSHING (A153272). BERNIE BLUHM INFO

1шт.

A51994

GEAR-SET

PINION AND RING GEAR - 4 wheel drive (Matched set), Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168324)

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. 168161)

1шт.

7

A168548

GEAR-SET

WHEEL ASSEMBLY - differential ring gear (4 wheel drive)

1шт.

A168548 wheel assy - This is the same as A168547 (Ref 3) except it includes the A168181 pinion and ring gear assy (instead of the A168180 set).

1шт.

8

A142676

PINION

GEAR - pinion

3шт.

9

A146541

PIN

- pinion gear

3шт.

10

A140705

PIN

- groove, 3/16 x 2 inch

3шт.

12

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel, 0.089 inch (2.26 mm)

1шт.

If a .010 sh Ref A168180 pinion and ring gear assy - This does not include the center wheel.

1шт.

If a .010 shim is req'd. use A29388

1шт.

12

A39007

WASHER

- thrust, center wheel, 0.094 inch (2.40 mm)

1шт.

12

A39008

WASHER

- thrust, center wheel, 0.099 inch (2.52 mm)

1шт.

12

A39009

WASHER

- thrust, center wheel, 0.104 inch (2.66 mm)

1шт.

12

A39010

WASHER

- thrust, center wheel, 0.109 inch (2.78 mm)

1шт.

12

A39011

WASHER

- thrust, center wheel, 0.119 inch (3.04 mm)

1шт.

15

A144266

SHAFT

- cross

1шт.

16

A50990

GEAR

ASSEMBLY - side, LH, with identification groove on spur gear, Includes: Ref. 17

1шт.

17

A29902

PLUG

- 1-5/8 inch expansion (41 mm)

1шт.

18

A50989

SIDE ASSY.

GEAR ASSEMBLY - side, RH, with identification groove on spur gear, Includes: Ref. 19

1шт.

19

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- 1-3/8 x 1-5/8 x 13/16 inch (35 x 41 x 21 mm)

1шт.

20

A49795

OIL SEAL

SEAL - oil, RH side gear, 1-3/8 x 1-5/8 x 3/16 inch (35 x 41 x 5 mm)

1шт.

21

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- ring gear bolt

12шт.

22

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - 3/8 inch x 7/8 inch (Grade 8)

12шт.

24

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 25

2шт.

25

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, 4-11/32 inch OD (110 mm)

1шт.

26

A30114

CONE

- bearing, 2-1/4 inch ID (57 mm)

2шт.

27

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

28

A39273

OIL SEAL

- oil, 2-1/4 x 3 x 1/2 inch (57 x 76 x 13 mm)

2шт.

29

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- 5 x 5-1/4 x 1/8 inch (127 x 133 x 3 mm)

2шт.

30

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- carrier to transmission housing, 3/8-16 x 1 inch flat slotted head

2шт.
