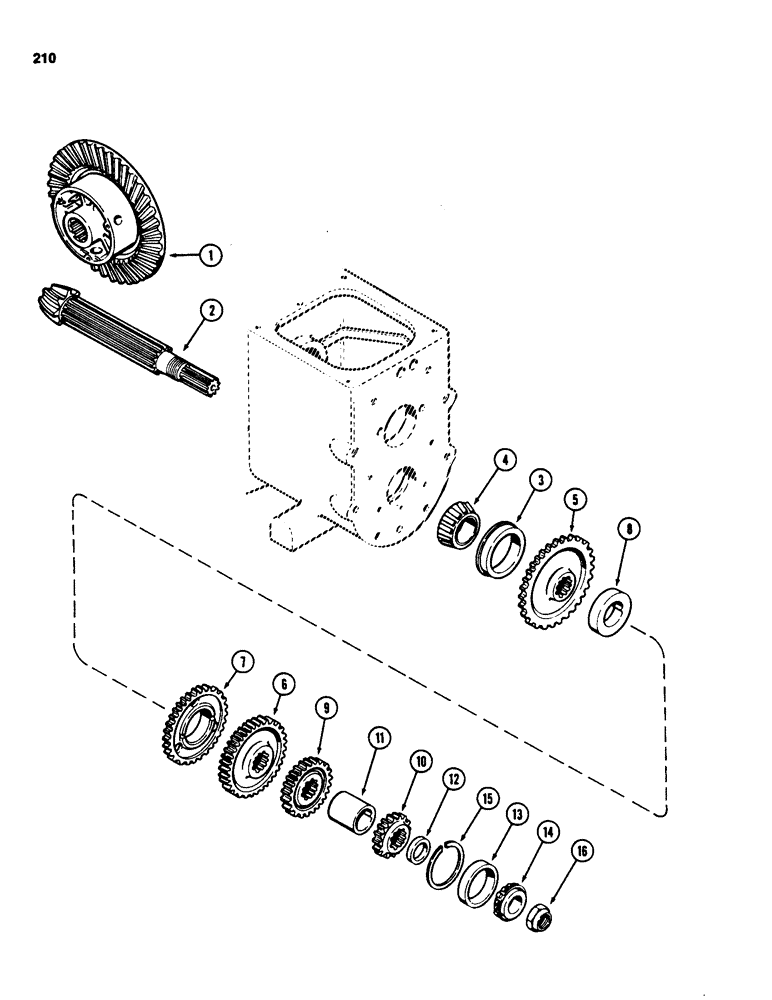

Запчасти Case 580SD (210) - TRANSAXLE COUNTERSHAFT, WITHOUT TURBOCHARGER, FOUR WHEEL DRIVE (06) - POWER TRAIN

A168181

GEAR-SET

PINION AND RING GEAR - (Matched set), Includes: Ref. 1 and 2

1шт.

Ref A168181 pinion and ring gear assy - This assy consists of Ref 1 NSS ring gear and Ref 2 NSS pinion shaft. It does not include the center wheel as indicated in illustration and in description. For assembly which includes the center wheel see part nbr A168548. If looking for the four dowel pins, the part nbr for them is A155860.

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, with center wheel (Reference No. A168324)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A156083)

1шт.

3

A30115

CUP

- bearing, rear, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

4

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, rear, 1-5/8 inch ID (41 mm)(Order D44321)

1шт.

5

A38157

SPRING

- first (47 external and 10 internal teeth)

1шт.

6

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

7

A51962

GEAR

- oil slinger (38 external teeth)

1шт.

8

A138847

SPACER

- first and second gear, 1-5/8 x 3 x 3/4 inch (41 x 76 x 19 mm)

1шт.

9

A51960

GEAR

- third (28 external and 10 internal teeth)

1шт.

10

A150248

PINION

GEAR - fourth (19 external and 10 internal teeth)

1шт.

11

A51959

SPACER

- third and fourth gears, 1-5/8 x 2-5/16 x 2-3/16 inch (41 x 59 x 56 mm)

1шт.

12

A153776

SPACER

- thrust, 0.250-0.258 inch (6.35-6.55 mm)

1шт.

12

A153775

SPACER

- thrust, 0.244 inch (6.20 mm)

1шт.

12

A153774

SPACER

- thrust, 0.239 inch (6.08 mm)

1шт.

12

A153773

SPACER

- thrust, 0.234 inch (5.95 mm)

1шт.

12

A153772

SPACER

- thrust, 0.229 inch (5.82 mm)

1шт.

12

A153771

SPACER

- thrust, 0.224 inch (5.70 mm)

1шт.

12

A153770

SPACER

- thrust, 0.219 inch (5.58 mm)

1шт.

12

A153754

SPACER

- thrust, 0.210-0.218 inch (5.34-5.56 mm)

1шт.

12

A153769

SPACER

- thrust, 0.214 inch (5.41 mm)

1шт.

12

A153755

SPACER

- thrust, 0.209 inch (5.32 mm)

1шт.

12

A153756

SPACER

- thrust, 0.204 inch (5.20 mm)

1шт.

12

A153757

SPACER

- thrust, 0.199 inch (5.06 mm)

1шт.

12

A153758

SPACER

- thrust, 0.194 inch (4.94 mm)

1шт.

12

A153759

SPACER

- thrust, 0.189 inch (4.82 mm)

1шт.

12

A153760

SPACER

- thrust, 0.184 inch (4.68 mm)

1шт.

12

A153761

SPACER

- thrust, 0.179 inch (4.56 mm)

1шт.

12

A153762

SPACER

- thrust, 0.174 inch (4.42 mm)

1шт.

12

A153763

SPACER

- thrust, 0.169 inch (4.30 mm)

1шт.

12

A153764

SPACER

- thrust, 0.164 inch (4.18 mm)

1шт.

13

A29977

BEARING CUP

CUP - bearing, 2-3/4 inch OD (70 mm)

1шт.

14

A31273

BEARING

CONE - bearing, front

1шт.

15

A29971

RING

- snap, rear bearing retaining

1шт.

16

A156260

NUT

- adjusting, countershaft

1шт.
