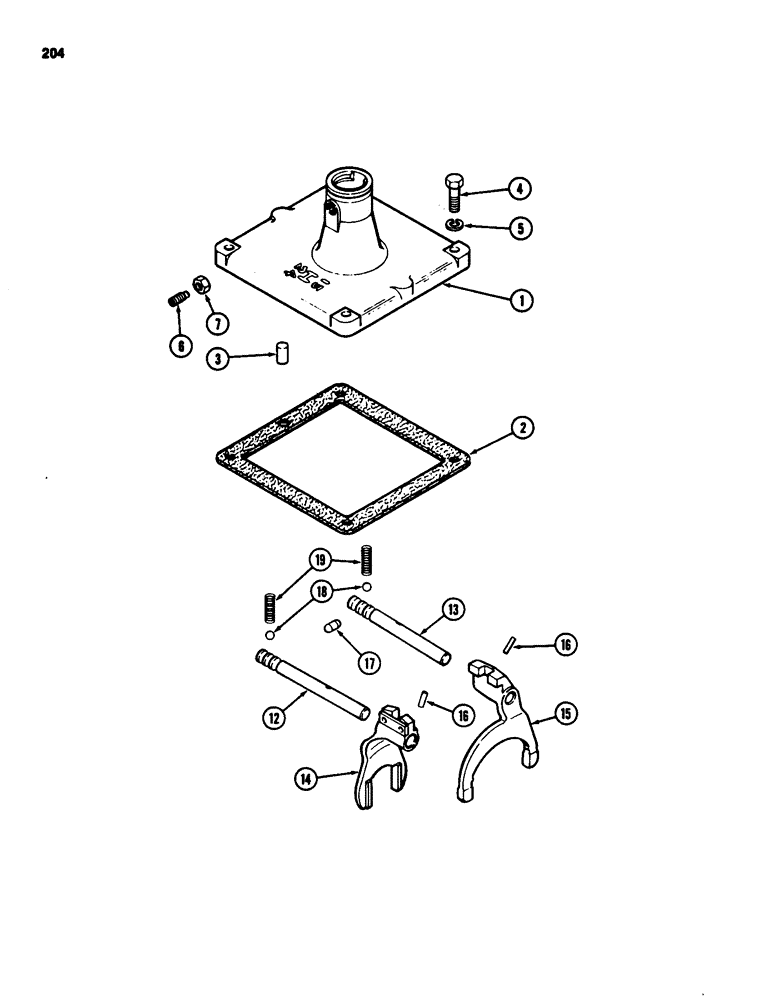

Запчасти Case 580SD (204) - TRANSAXLE SHIFTER MECHANISM, WITHOUT TURBOCHARGER (06) - POWER TRAIN

1

A138312

COVER

- shift control

1шт.

2

G10342

GASKET

- cover to transmission housing

1шт.

3

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, , Cover locating 1/2" x 7/8", Slotted

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Cover to transmission housing Hex, 3/8"-16 x 1 1/2", G5

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- set, shift lever retaining, 5/16 inch NC

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam lock set screw, 5/16 inch NC

1шт.

12

A138313

RAIL ASSY.

RAIL - shifter, first and second gear

1шт.

Refs.12 and 13 shift rails originally had three grooves around the rail circumference. Service bulletin NLB SB 006 90 explains that the only groove that now runs the circumference is the neutral groove. The two in gear positions have flats for the detents. This improves the shift action.

1шт.

13

A140578

RAIL ASSY.

RAIL - shifter, third and fourth gear

1шт.

14

A51964

FORK

ASSEMBLY - shift, first and second gear

1шт.

15

A150726

FORK

- shifter, third and fourth gear

1шт.

16

138-2009

PIN,3/16" x 1", Coiled

Fork to rail 3/16" x 1", Coiled

2шт.

17

A29060

PLUG

- interlock shifter rails

1шт.

18

211-28

BALL,13/32" Dia

- detent, shifter rail, 13/32 inch diameter (10 mm)

2шт.

19

G47039

SPRING

- tension, detent ball

2шт.
