(90.160.CD) - FRONT CONSOLE, STEERING COLUMN, COVER

Запчасти Case 580N EP (90.160.CD) - FRONT CONSOLE, STEERING COLUMN, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

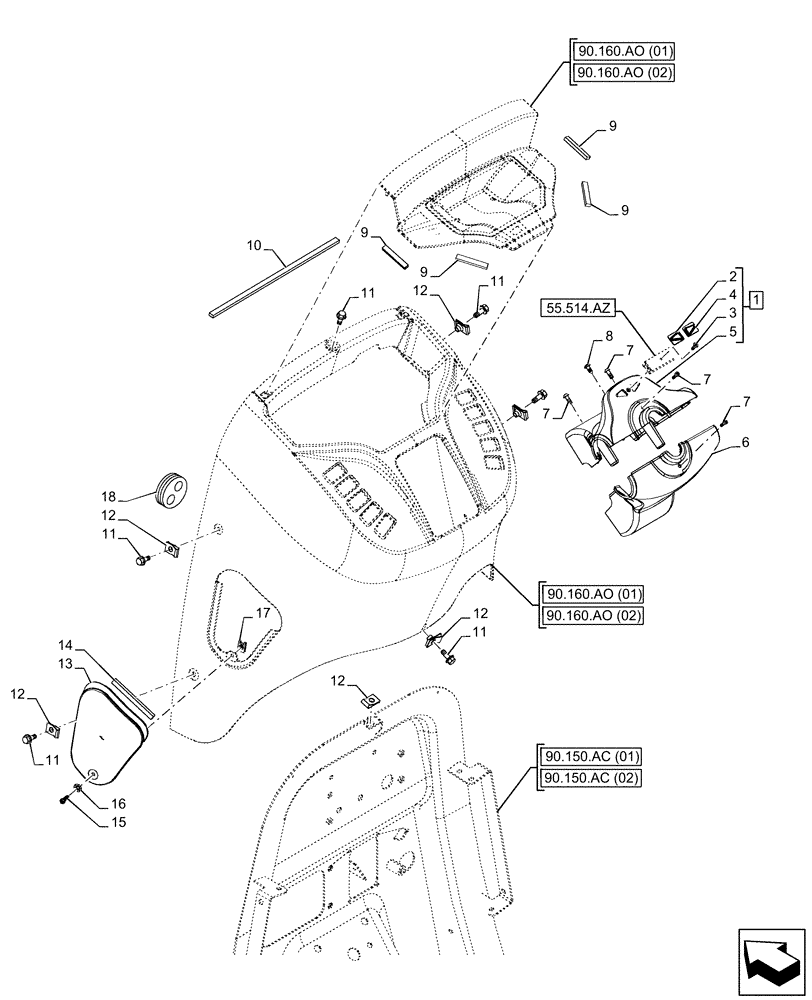

Схема запчастей Case 580N EP - (90.160.CD) - FRONT CONSOLE, STEERING COLUMN, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
16
11
90.160.ao (02)
5
12
7
12
13
90.160.ao (01)
10
11
90.160.ao (02)
7
12
7
12
18
6
9
12
9
11
11
15
55.514.az
9
2
17
8
1
90.150.ac (01)
3
90.150.ac (02)
7
90.160.ao (01)
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605302

COVER ASSY

Steering Column Upper, Incl 2 - 6

1шт.

See Cover Steering Column Components also in Figure 55.514.AZ

1шт.

2

303467A1

SYMBOLS

LH

1шт.

3

373693A1

SCREW,Torx, #8 - 18 x 7/16"

1шт.

4

303466A1

SYMBOLS

RH

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

6

360243A2

COVER

RH

1шт.

7

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

4шт.

8

87540980

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2", SST

1шт.

9

414033A1

STRIP,60mm

4шт.

10

414034A1

STRIP,330mm

1шт.

11

87310152

BOLT,M6 x 16 Full SST BLO

6шт.

12

833-40406

NUT,M6, U

6шт.

13

360244A1

COVER

Fuse Access

1шт.

14

414572A1

STRIP

1шт.

15

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

1шт.

16

127009A1

CLIP,ELECTRICAL

1шт.

17

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

18

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

1шт.
