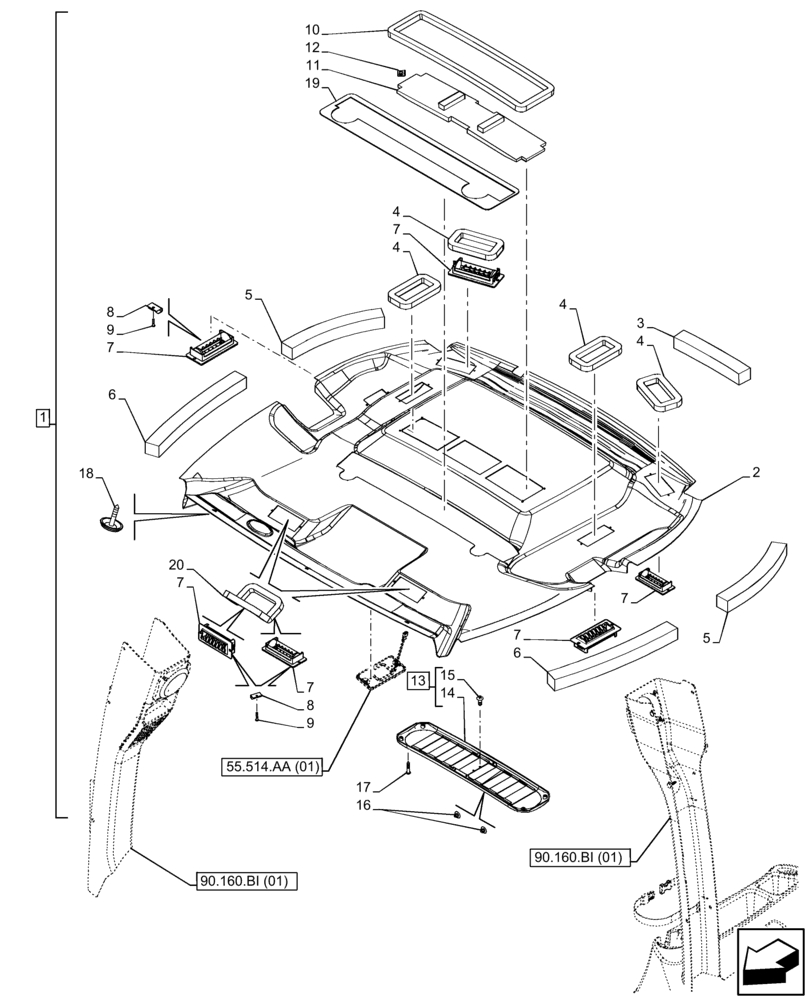

Запчасти Case 580N EP (90.160.AX[01]) - CAB HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224379

HEADLINER

ASSY, Incl 2 - 19

1шт.

2

84224381

HEADLINER

1шт.

3

381972A1

SEAL,592.5mm L

1шт.

4

84499076

GASKET,174mm L x 97mm L

4шт.

5

379161A1

SEAL,379mm L

2шт.

6

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

2шт.

7

363883A1

LOUVER

8шт.

8

125749A1

SPRING NUT

16шт.

9

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

10

379209A1

SEAL,303mm L

1шт.

11

377594A5

FILTER

Recirculation

1шт.

12

177269A1

SPRING NUT,M4.2

4шт.

13

369450A1

GRILLE

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Grille, Incl in 13

1шт.

15

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

16

409723A1

PLUG

4шт.

17

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

18

47602865

SCREW,Phillips Drive, Oval HD, M16 x 1

3шт.

19

382770A2

FOAM INSULATION,3mm Thk

1шт.

20

368813A2

SEAL,168mm L

2шт.
