(90.160.AM[03]) - VAR - 745170 - CAB, LEFT PANEL, ANTITHEFT COVER

Запчасти Case 580N EP (90.160.AM[03]) - VAR - 745170 - CAB, LEFT PANEL, ANTITHEFT COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

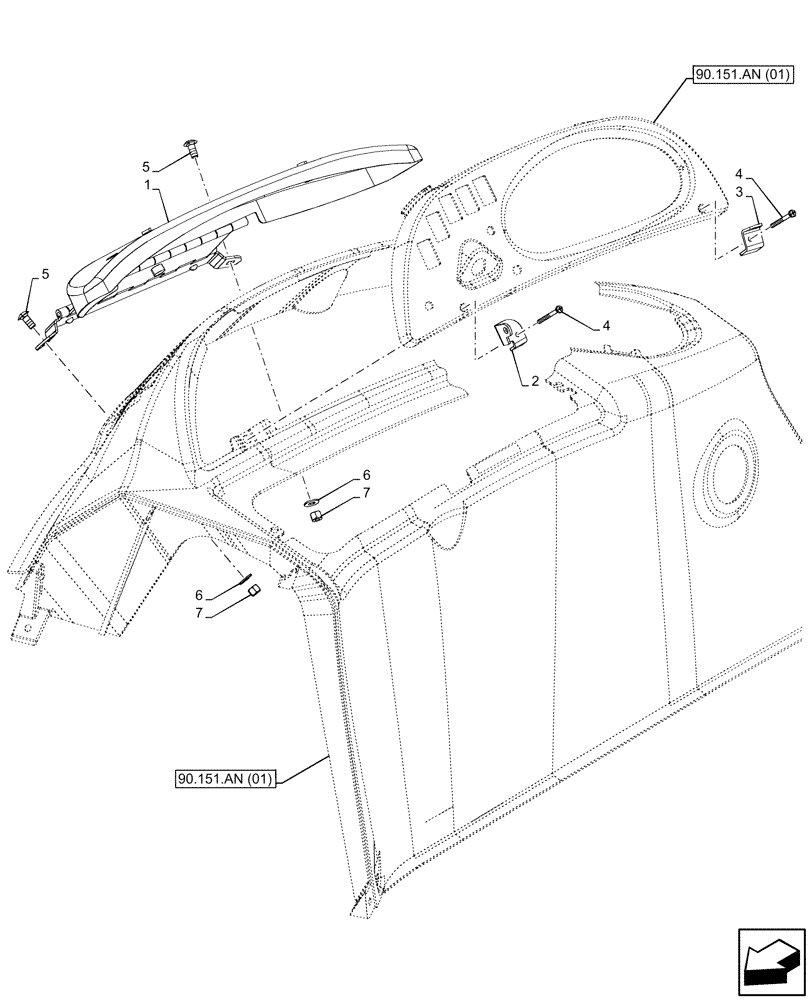

Схема запчастей Case 580N EP - (90.160.AM[03]) - VAR - 745170 - CAB, LEFT PANEL, ANTITHEFT COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.an (01)
4
5
6
3
1
5
4
2
6
7
90.151.an (01)
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

385614A4

CONSOLE

Cover, with Vandal Lock-up Kit

1шт.

2

386368A2

BRACKET

LH

1шт.

3

386369A2

BRACKET

RH

1шт.

4

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

2шт.

5

87310176

BOLT,Round Head, M8 x 20, Cl 8.8

M8 x 20 Cl 8.8"

2шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
