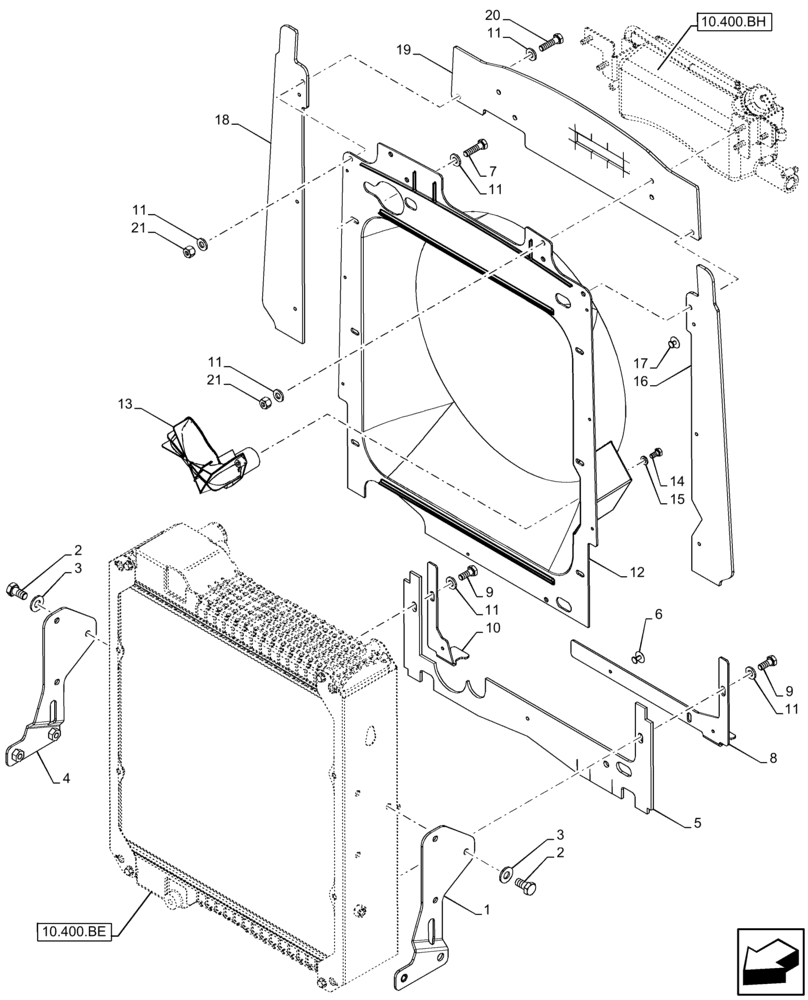

Запчасти Case 580N EP (10.400.BF) - VAR - 442082, 747853, 747854, 747855 - RADIATOR, SUPPORT, SHROUD (10) - ENGINE

1

47369244

BRACKET

LH Radiator

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

4

47369241

BRACKET

RH Radiator

1шт.

5

84540367

SEAL,614mm L

Radiator Lower

1шт.

6

87301356

RIVET,Pop, 3/16" x .700"

1шт.

7

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

8

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH, Lower Shroud

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH, Lower Shroud

1шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

14шт.

12

47615718

SHROUD

1шт.

13

84185540

DUST CAP

1шт.

14

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

47565514

SEAL,664mm L

Radiator Side

1шт.

17

87301355

RIVET,Pop, 3/16" x .575"

6шт.

18

84403324

RUBBER SEAL,664mm L

1шт.

19

47369249

SEAL,615.7mm L

Radiator Top

1шт.

20

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.
