(90.156.AZ) - VAR - 747854, 747855 - WINDOW, RH, NARROW, GLASS (NO DOOR)

Запчасти Case 580N EP (90.156.AZ) - VAR - 747854, 747855 - WINDOW, RH, NARROW, GLASS (NO DOOR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

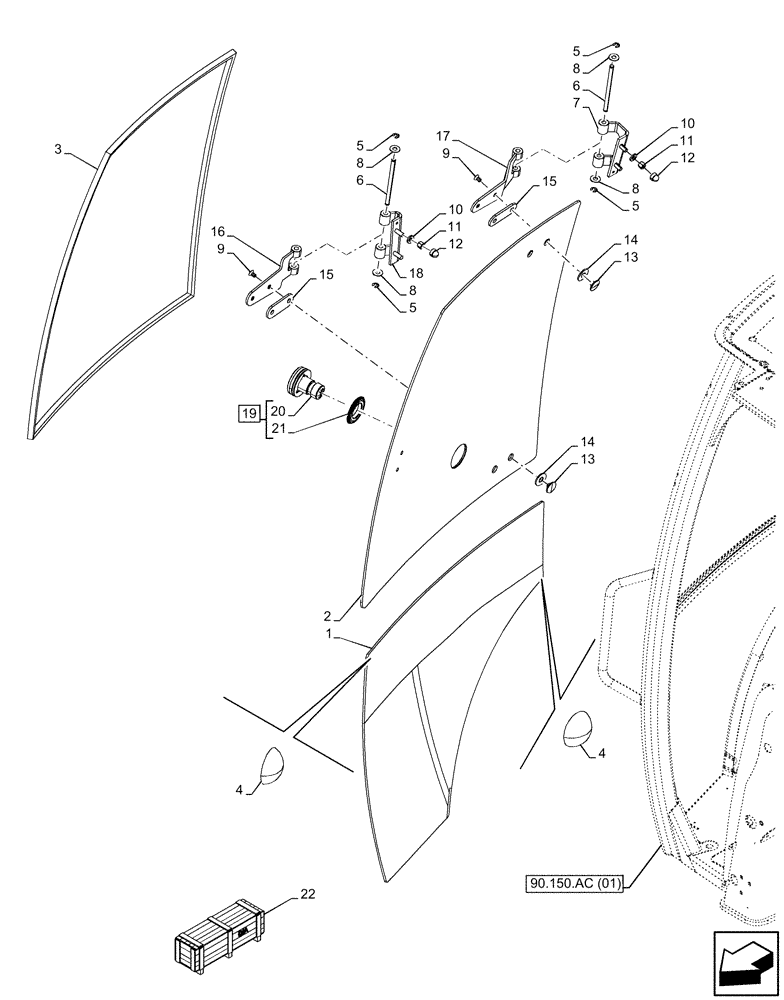

Схема запчастей Case 580N EP - (90.156.AZ) - VAR - 747854, 747855 - WINDOW, RH, NARROW, GLASS (NO DOOR) (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
2
10
12
8
20
11
14
10
21
15
5
5
3
6
4
19
6
5
11
13
14
5
9
8
4
16
12
17
22
8
18
8
15
9
5
13
1
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84246309

CAB GLASS ASSY

Lower RH, Fixed

1шт.

2

84261870

GLASS

Upper RH

1шт.

3

394864A1

SEAL, GLASS,804.4mm L

1шт.

4

391827A1

SPACER,11.1mm D

5шт.

5

442773A1

CIRCLIP,7.42mm ID x 16.8mm OD x 0.9mm Thk

4шт.

6

84282086

PIN,9.9mm OD x 151.1mm L

2шт.

7

84224394

HINGE

1шт.

8

391845A1

WASHER,11.1mm ID x 25.4mm OD x 1.6mm Thk

4шт.

9

84319919

SCREW,Hex, M8 x 1.25 x 14mm, Cl 10.9

4шт.

10

87039401

WASHER,0.41" ID x 0.81" OD x 0.13" Thk

4шт.

11

232-1446

NUT,3/8"-16, GC

4шт.

12

396841A1

CAP,3/8 Inch x 18.03mm L

4шт.

13

84249588

SPECIAL NUT,M8 x 1.25

4шт.

14

83961985

SPACER,12.6mm ID x 18mm OD x 6.5mm L

4шт.

15

84224336

SHIM,35mm OD x 5mm Thk

2шт.

16

84388220

HINGE

1шт.

17

84388214

HINGE

1шт.

18

84224396

HINGE

1шт.

19

84403980

LATCH

ASSY, Incl 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Latch, Incl in 19

1шт.

21

84355905

RING,80mm OD, 44mm ID

1шт.

22

84427155

CONSTRUCTION DIA

Female, DLP Hold Open Latch, Incl 19 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
