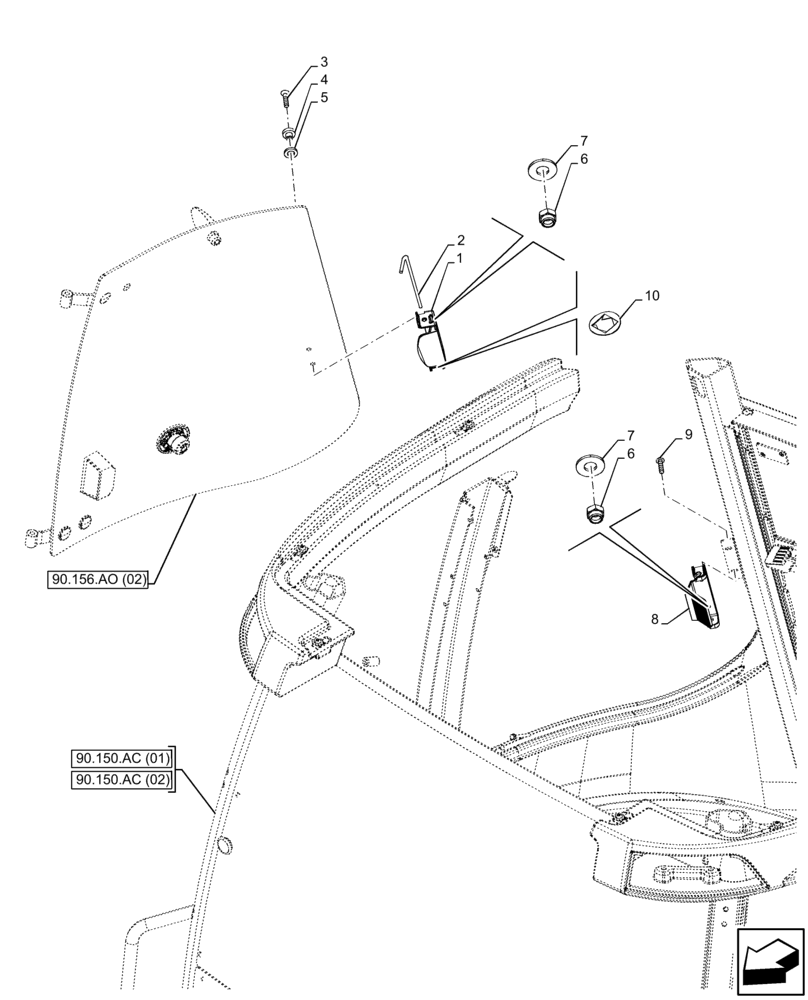

Запчасти Case 580N EP (90.156.AQ[02]) - VAR - 747853, 747854, 747855 - CAB, NARROW, RIGHT LATERAL WINDOW, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87344860

HANDLE

Slam, Lateral

1шт.

2

87534372

ROD,7.9mm OD

1шт.

3

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

4

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

5

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

2шт.

6

F45165

SPECIAL NUT,#10-24

4шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

4шт.

8

87344859

LATCH

Slam

1шт.

9

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

10

87534717

PUSH-ON NUT,0.625" L

1шт.
