(90.156.AF) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR WINDOW, WEATHERSTRIP

Запчасти Case 580N EP (90.156.AF) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR WINDOW, WEATHERSTRIP (90) - PLATFORM, CAB, BODYWORK AND DECALS

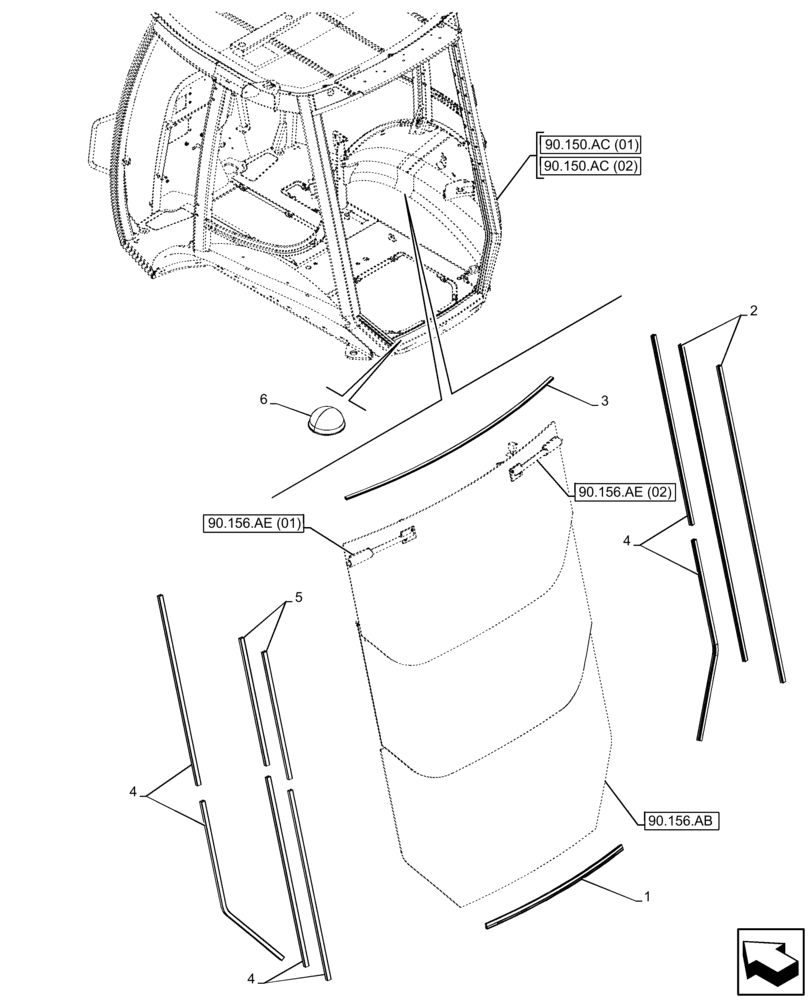

Схема запчастей Case 580N EP - (90.156.AF) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR WINDOW, WEATHERSTRIP (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
2
4
3
90.156.ae (02)
90.150.ac (01)
1
4
90.150.ac (02)
5
90.156.ae (01)
90.156.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87753118

GROMMET,4mm L, 695mm L

1шт.

2

404227A1

SEAL,1270mm L

Flocked Channel, 1270mm L

2шт.

3

400494A1

SEAL,1095mm L

Top Rear Window, 1095mm L

1шт.

4

404228A1

SEAL,760mm L

Flocked Channel, 760mm L

6шт.

5

404229A1

SEAL,510mm L

Flocked Channel, 510mm L

2шт.

6

87753220

BUMPER,19mm D

3шт.
