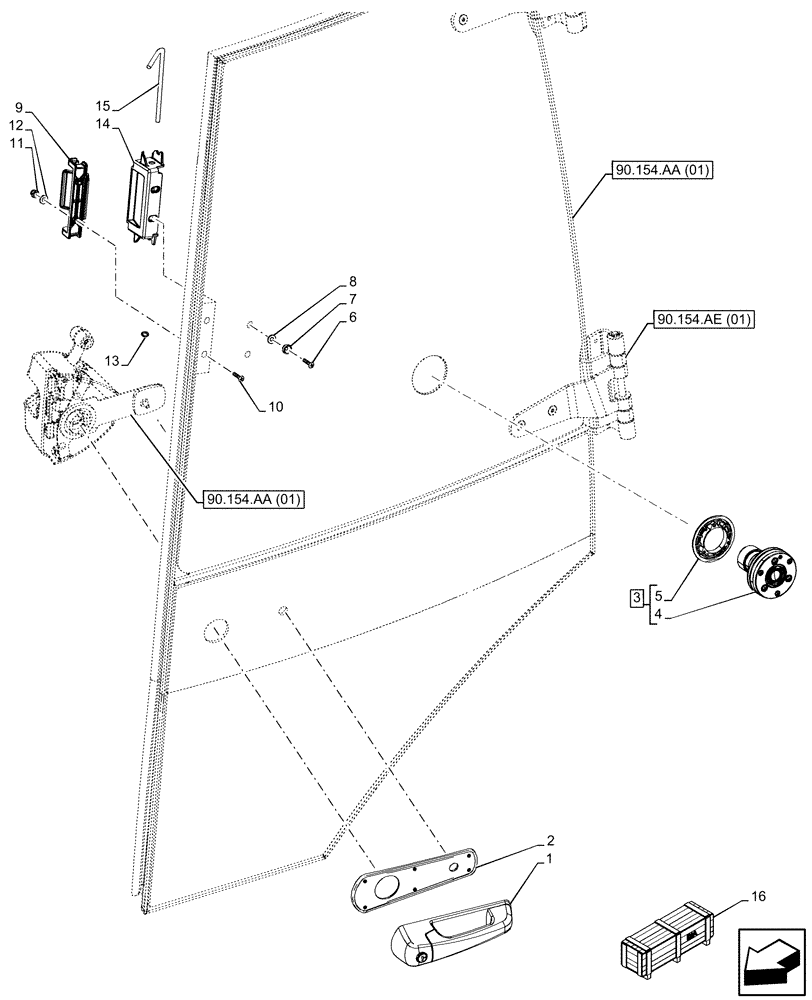

Запчасти Case 580N EP (90.154.AC[01]) - VAR - 747853, 747854, 747855 - CAB, NARROW, LEFT DOOR, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224317

HANDLE

Exterior with 250 Key

1шт.

2

84224344

GASKET,43mm ID, 15.2mm ID, 223.9mm L

Exterior Handle

1шт.

3

84403980

LATCH

ASSY, Glass Hold Together, DLP Female, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Latch, Incl in 3

1шт.

5

84355905

RING,80mm OD, 44mm ID

1шт.

6

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

7

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

8

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

2шт.

9

87344859

LATCH

1шт.

10

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

11

F45165

SPECIAL NUT,#10-24

4шт.

12

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

13

87534717

PUSH-ON NUT,0.625" L

1шт.

14

87344860

HANDLE

1шт.

15

87534372

ROD,7.9mm OD

1шт.

16

84427155

CONSTRUCTION DIA

Female, DLP Hold Open Latch, Incl 3 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
