(90.151.AD[02]) - VAR - 747735 - SEAT BELT, 3 IN

Запчасти Case 580N EP (90.151.AD[02]) - VAR - 747735 - SEAT BELT, 3 IN (90) - PLATFORM, CAB, BODYWORK AND DECALS

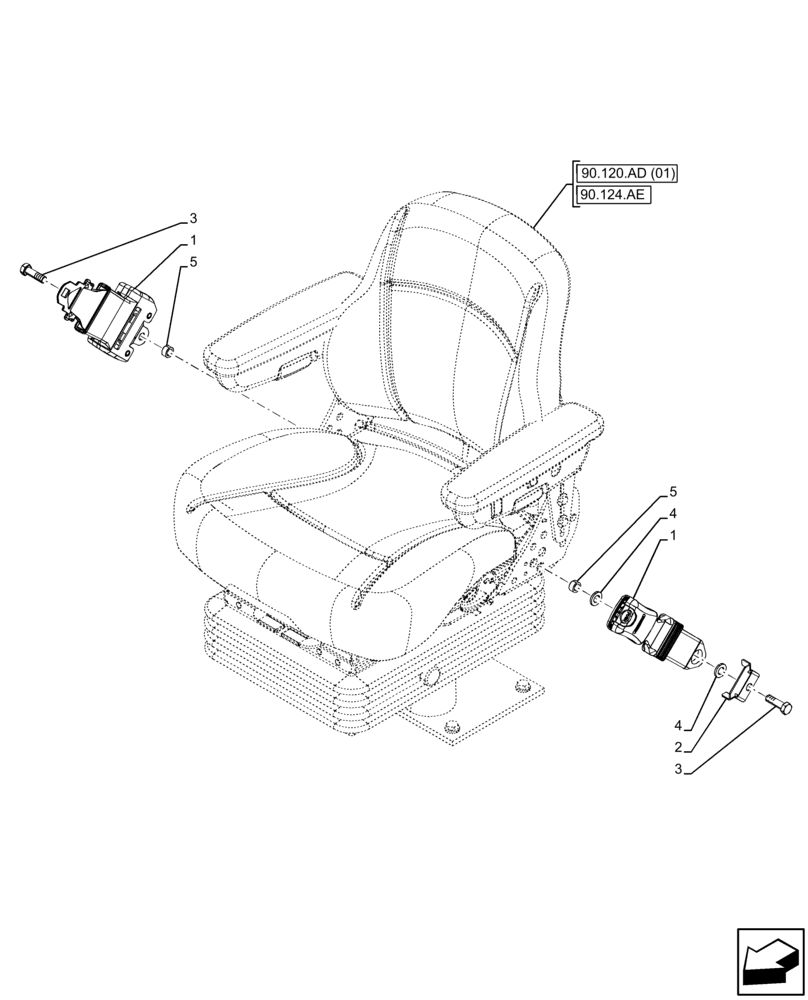

Схема запчастей Case 580N EP - (90.151.AD[02]) - VAR - 747735 - SEAT BELT, 3 IN (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.120.ad (01)
4
1
3
2
5
3
5
90.124.ae
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47600153

SEAT BELT,3 inch Wide Belt

1шт.

2

87310149

BRACKET

Seat Belt

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.
